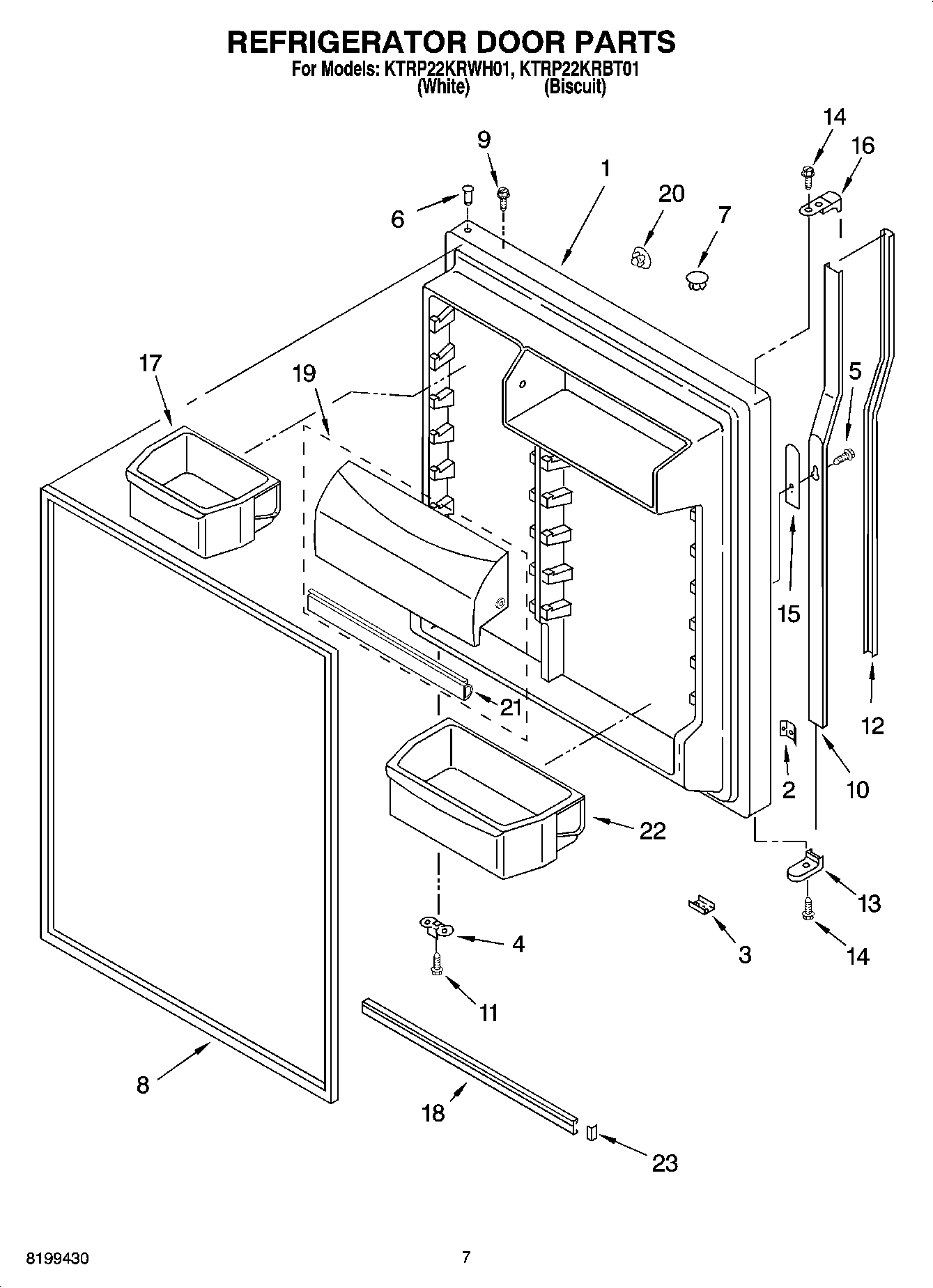

KTRP22KRBT01 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes No.8) (White)
1	Refrigerator Door (Includes No.6 & No.8) (Biscuit)
2	WP939101 Whirlpool Refrigerator Plate
3	Tap Plate
4	W11745278 Whirlpool Bracket
5	Screw
6	WP2183003 Whirlpool Thimble
7	WP2212649 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159061 Whirlpool Refrigerator Door Gasket
9	WP8281206 Whirlpool Refrigerator Screw
10	Retainer, Insert (White)
10	Retainer, Insert (Biscuit)
11	WP488921 Whirlpool Refrigerator Screw
12	Insert, Handle (Biscuit)
12	Insert, Handle (White)
13	Endcap, Bottom (Biscuit)
13	Endcap, Handle (White)
14	WP489357 Whirlpool Recessed Screw
15	Spacer
16	Endcap (Biscuit)
16	Endcap
17	Bin, Door Shelf (2)
18	WPW10421486 Whirlpool Refrigerator Door Trim
19	Door, Compartment (Includes 9)
20	WP2200936 Whirlpool Refrigerator Handle Plug
20	WP2189000 Whirlpool Refrigerator Handle Plug
21	Gasket, Door Compartment
22	Bin, Door Shelf
23	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
