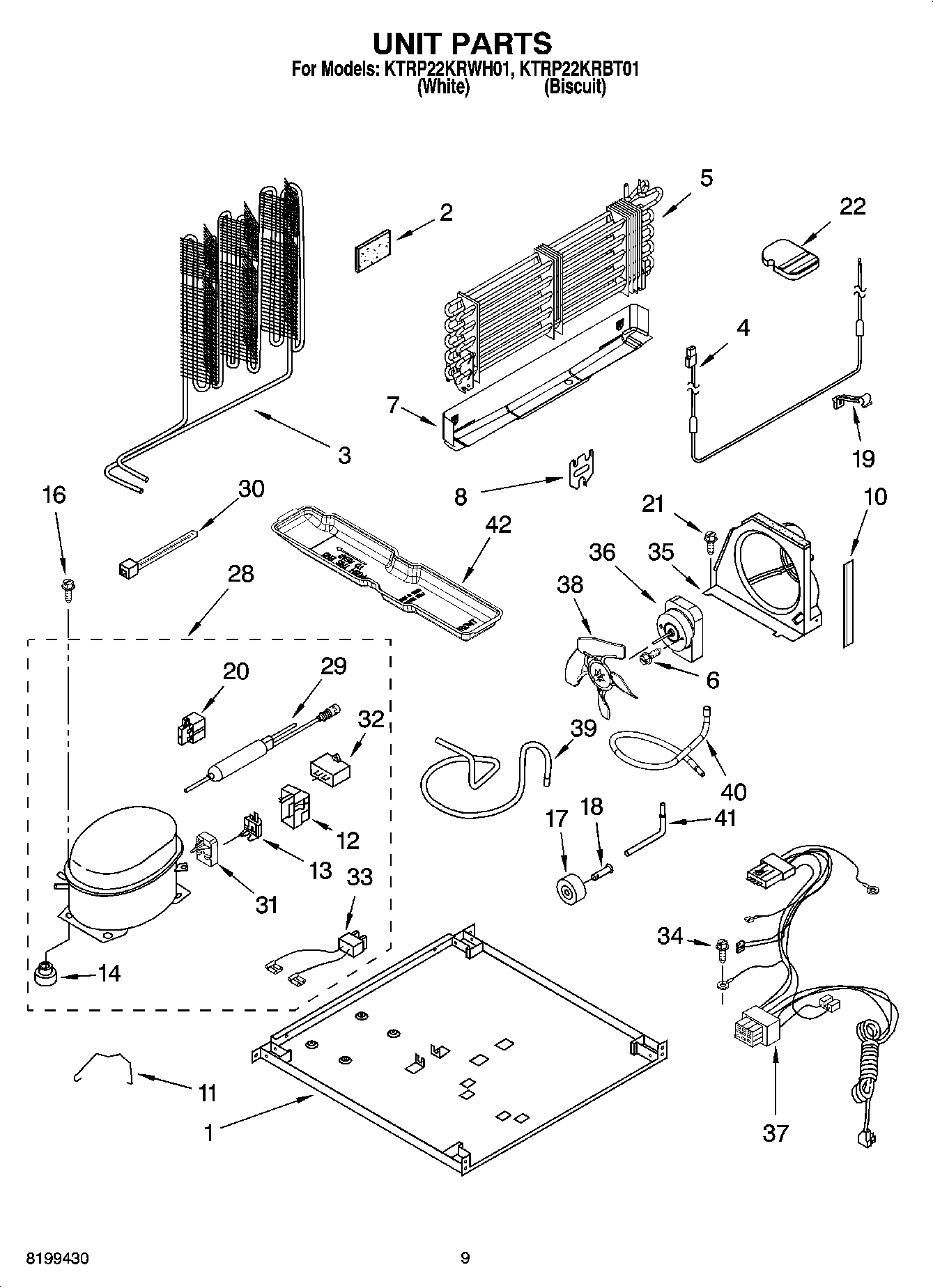

KTRP22KRBT01 05 – UNIT PARTS

Products

Position	Product
1	Plate, Unit Mounting
2	W11553819 Whirlpool Refrigerator Insulation
3	WP2214960 Whirlpool Refrigerator Condenser
4	WPW10140847 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	WPW10171469 Whirlpool Refrigerator Screw
7	Drain Pan
8	Bracket, Heater
10	Extension, Air Baffle
11	2212996 Whirlpool Refrigerator Retainer
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
20	W10920279 Whirlpool Refrigerator Start Relay
21	3400518 Whirlpool Oven Foot Mount Screw
22	Support Block
28	W10309988 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	WP2225929 Whirlpool Refrigerator Start Device
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	WP2172890 Whirlpool Refrigerator Wire
34	WP489128 Whirlpool Refrigerator Screw
35	Air Baffle
36	WP2188874 Whirlpool Refrigerator Condenser Motor
37	2187382 Whirlpool Refrigerator Wire Harness
38	W11458267 Whirlpool Refrigerator Fan Blade
39	Tube, Discharge
40	Tube, Suction
41	2154109 Whirlpool Refrigerator Tube
42	Following Parts Not Illustrated and Optional Parts Not Included
42	876764 Whirlpool Refrigerator Primary Valve
42	8201826 Whirlpool Refrigerator Evaporator Tray
42	978027 Whirlpool Refrigerator Primary Valve
42	978026 Whirlpool Refrigerator Primary Valve
42	978030 Whirlpool Refrigerator Valve
42	WP978025 Whirlpool Refrigerator Valve
42	VALVE, ACCESS (1/2“)
42	VALVE, ACCESS (5/8“)
42	REFRIGERANT CHARGE 4.00 Ozs. (R134A)
