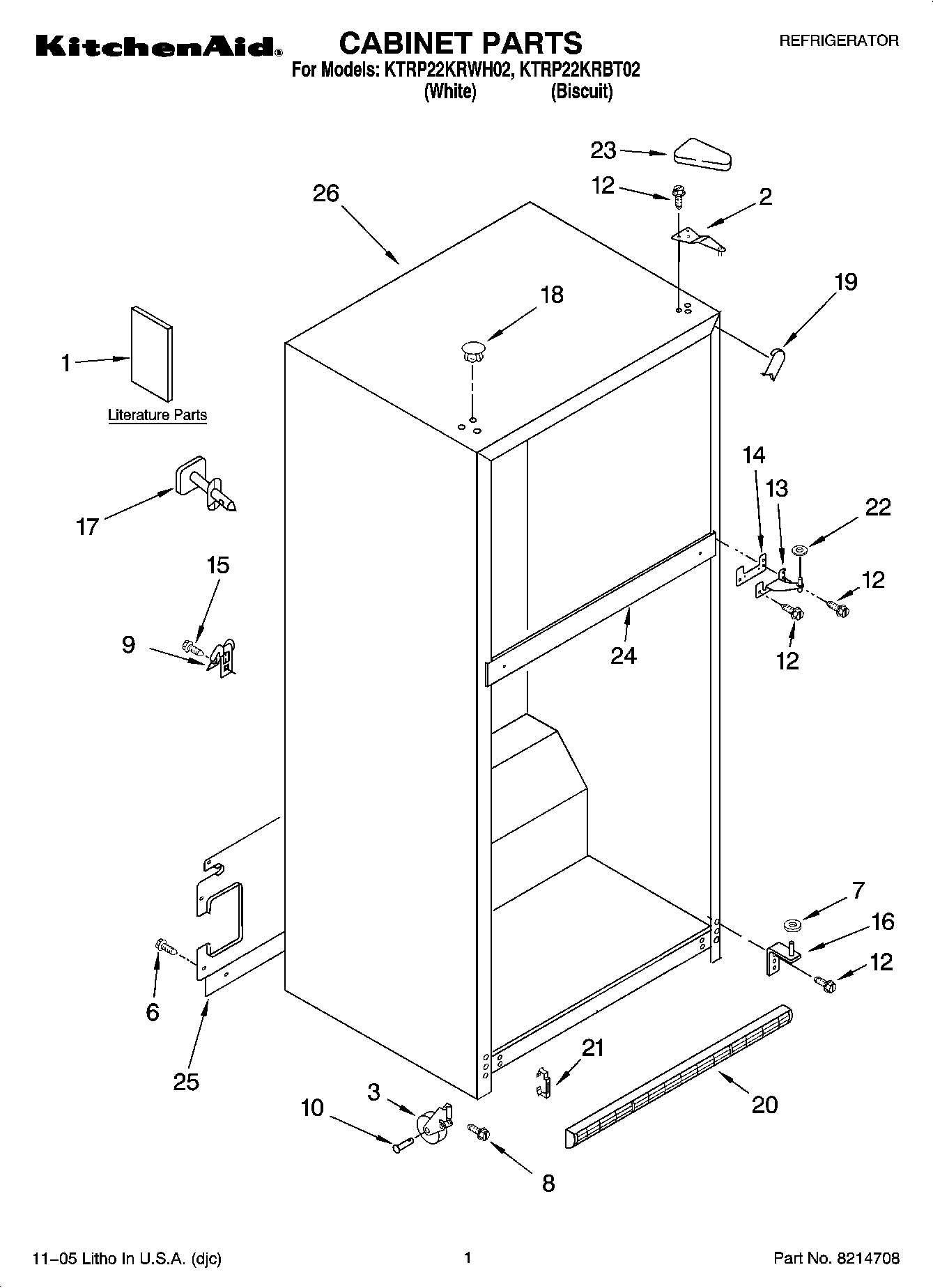

KTRP22KRBT02 01 – CABINET PARTS

KTRP22KRBT02 01 – CABINET PARTS

Written by

in

KTRP22KRBT02 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Energy Label
1Customer Instructions
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
6WP489427 Whirlpool Refrigerator Screw
7WP487576 Whirlpool Washer
8WP3400504 Whirlpool Refrigerator Screw
9549193 Whirlpool Refrigerator Power Clamp
10W11594405 Whirlpool Axle
12WP489497 Whirlpool Screw
13WP2254618 Whirlpool Center Door Hinge
14WP2183854 Whirlpool Refrigerator Shim
15WP489464 Whirlpool Refrigerator Screw
16WP2254473 Whirlpool Refrigerator Door Hinge
17Fitting, Water Tube (Not Serviced)
18WP2151652 Whirlpool Refrigerator Button Plug
18Hole Plug (6) (Biscuit)
19W10283958 Whirlpool Refrigerator Filler
19WPW10283959 Whirlpool Refrigerator Filler
20Grille (Biscuit)
20Grille (White)
21CLIP, GRILLE
22WP489467 Whirlpool Hinge Shim
23WP2213360 Whirlpool Refrigerator Cover
232213364 Whirlpool Refrigerator Cover
24Rail Center (Not Serviced)
25Cover, Unit
26Cabinet (Not A Serviceable Part)
