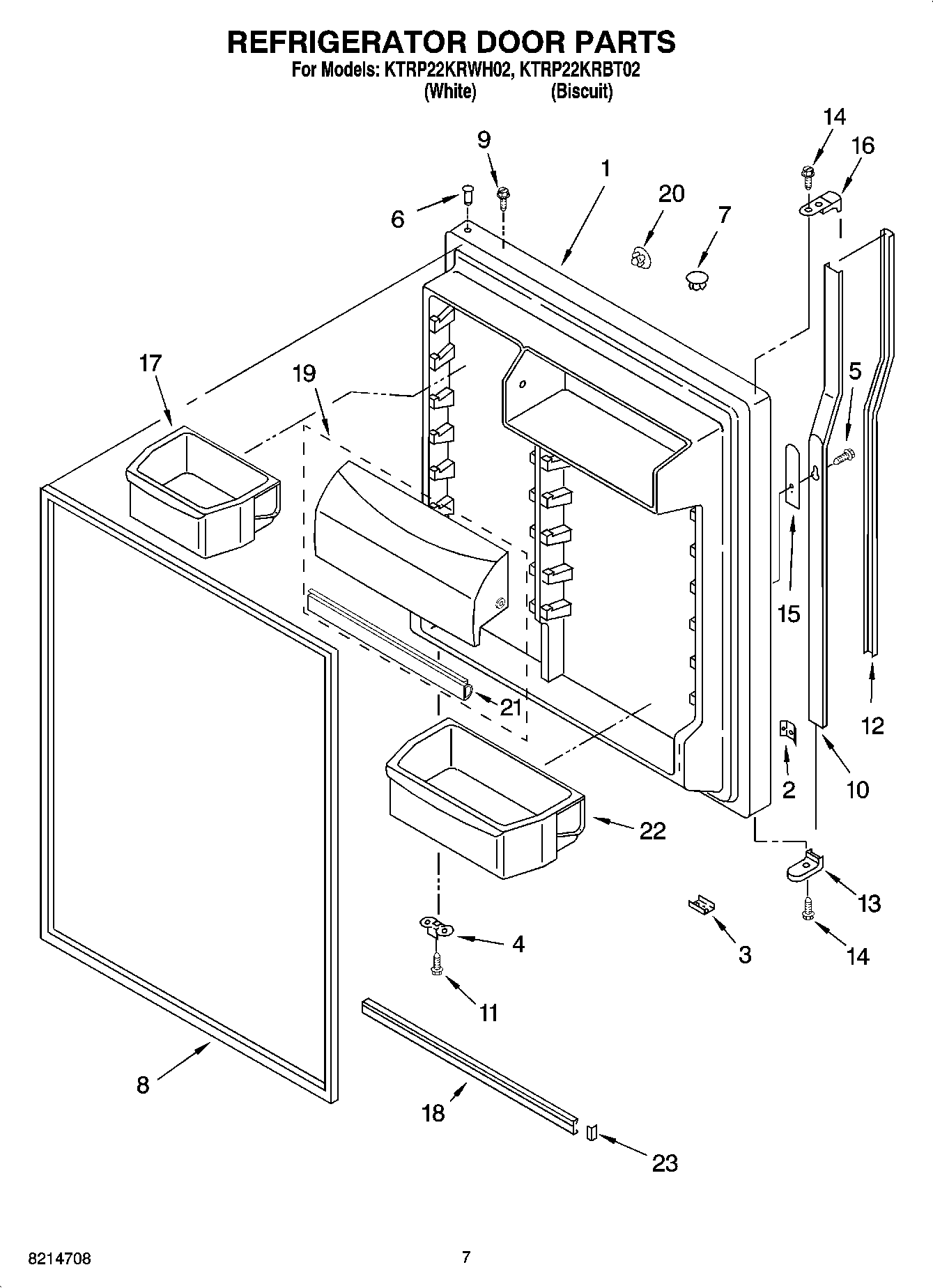

KTRP22KRBT02 04 – REFRIGERATOR DOOR PARTSadmin2025-04-26T12:31:08+00:00KTRP22KRBT02 04 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes No.8) (White) |
| 1 | Refrigerator Door (Includes No.6 & No.8) (Biscuit) |
| 2 | WP939101 Whirlpool Refrigerator Plate |
| 3 | Tap Plate |
| 4 | W11745278 Whirlpool Bracket |
| 5 | Screw |
| 6 | WP2183003 Whirlpool Thimble |
| 7 | WP2212649 Whirlpool Refrigerator Button Plug |
| 7 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 8 | 2159061 Whirlpool Refrigerator Door Gasket |
| 9 | WP8281206 Whirlpool Refrigerator Screw |
| 10 | Retainer, Insert (White) |
| 10 | Retainer, Insert (Biscuit) |
| 11 | WP488921 Whirlpool Refrigerator Screw |
| 12 | Insert, Handle (Biscuit) |
| 12 | Insert, Handle (White) |
| 13 | Endcap, Bottom (Biscuit) |
| 13 | Endcap, Handle (White) |
| 14 | WP489357 Whirlpool Recessed Screw |
| 15 | Spacer |
| 16 | Endcap (Biscuit) |
| 16 | Endcap |
| 17 | Bin, Door Shelf (2) |
| 18 | WPW10421486 Whirlpool Refrigerator Door Trim |
| 19 | Door, Compartment (Includes 9) |
| 20 | WP2200936 Whirlpool Refrigerator Handle Plug |
| 20 | WP2189000 Whirlpool Refrigerator Handle Plug |
| 21 | Gasket, Door Compartment |
| 22 | Bin, Door Shelf |
| 23 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
