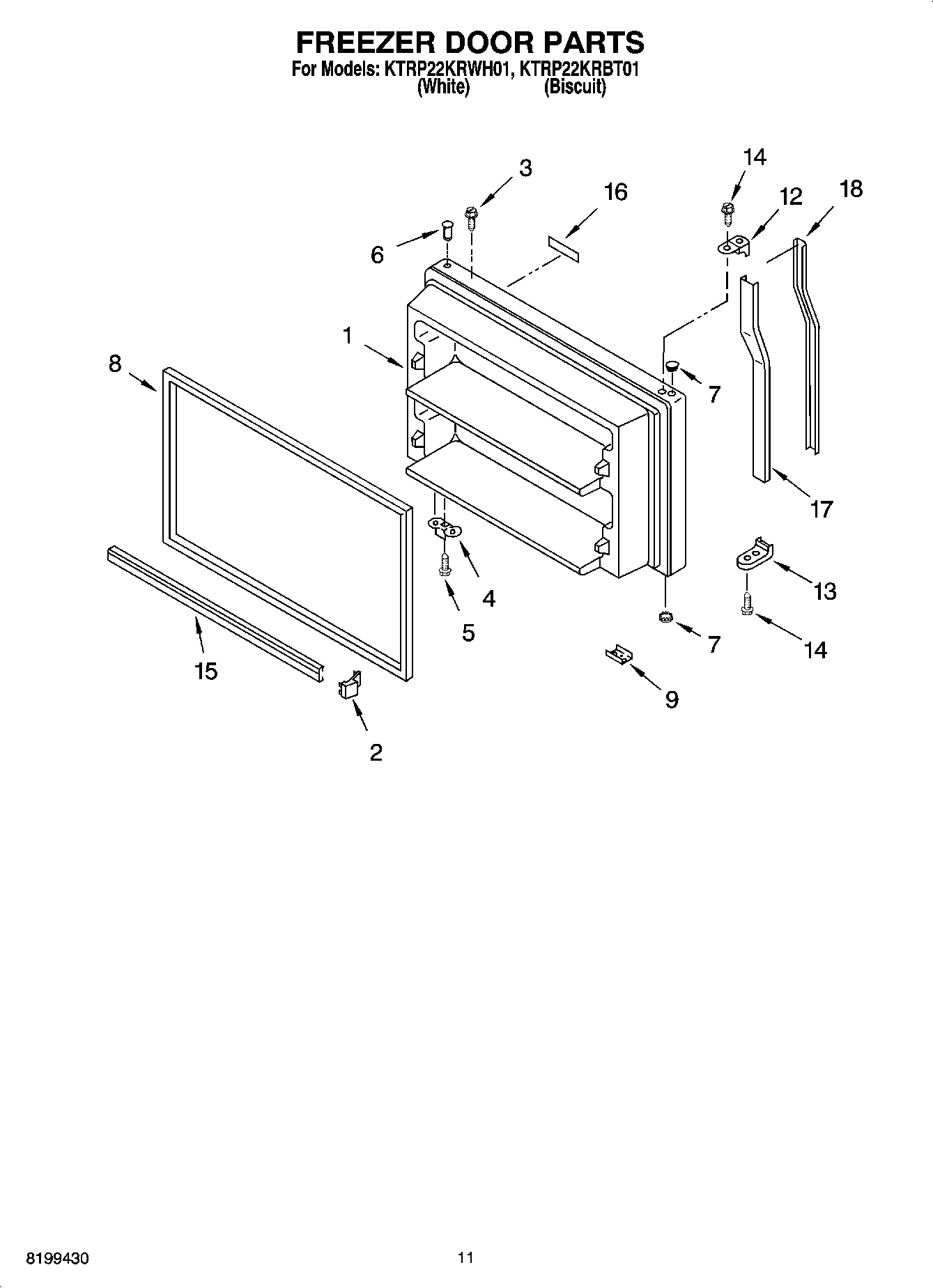

KTRP22KRWH01 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI111490A
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799832
	WPL 799833
	WPL 876029
	W11729596 Whirlpool Ice Maker Field Install Kit
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL ARI111491A
	WPL ARI111487A
	WPL ARI111488A
	WPL ARI111489A
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	Torx Key
	350942 Whirlpool Spray Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	4392901 Whirlpool Biscuit Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	WP542638 Whirlpool Refrigerator Grease
	4392899 Whirlpool Biscuit Touch-Up Paint
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	876370 Whirlpool Refrigerator Insulation
	833938 Whirlpool Refrigerator Terminal
1	Freezer Door (Includes No.8) (White)
1	Freezer Door (Includes No.6 & No.8) (Biscuit)
2	ENDCAP
3	WP8281206 Whirlpool Refrigerator Screw
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212649 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	WHITE DOOR GASKET-FIP
9	Tap Plate
12	Endcap (Biscuit)
12	Endcap
13	Endcap (Biscuit)
13	Endcap
14	WP489357 Whirlpool Recessed Screw
15	Trim, Door Shelf (2)
16	Nameplate (Biscuit)
16	Nameplate (White)
17	Insert, Retainer (White)
17	Insert, Handle (Biscuit)
18	Insert, Handle (Biscuit)
18	Insert, Handle (White)
