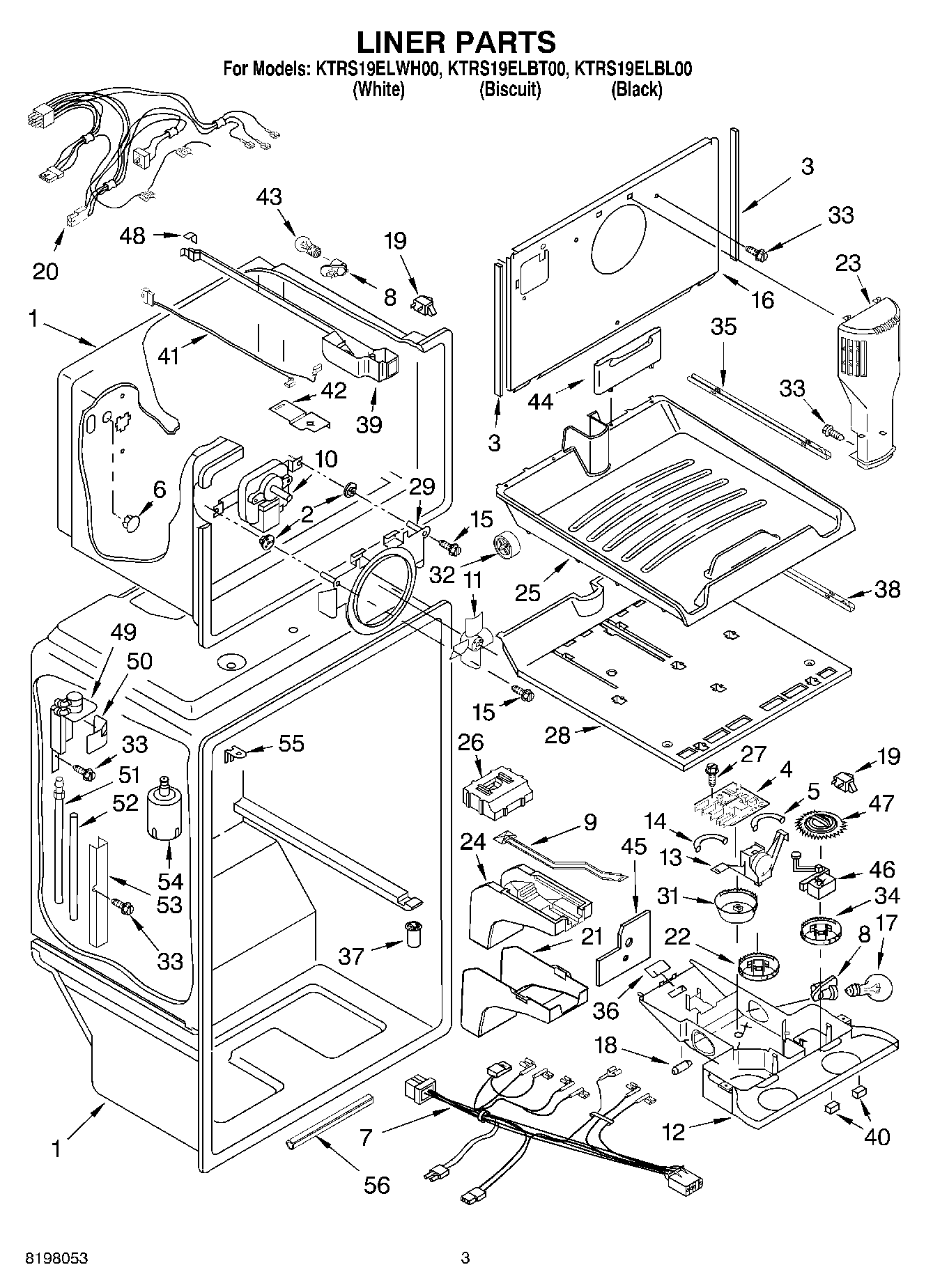

KTRS19ELBL00 02 – LINER

KTRS19ELBL00 02 – LINER

Written by

in

KTRS19ELBL00 02 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	WP941839 Whirlpool Refrigerator Button Plug
7	Wire Assembly, Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air (Slide)
10	Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assembly (Includes Items 5, 18, & 36)
14	Thermostat Tube Barrier
15	Screw
16	Cover-Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Wire Assembly, Freezer Compartment
21	Cover, Air Diffuser
22	Knob, Thermostat
23	Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Pullout, Freezer Floor (Includes Item 56)
26	Air Diffuser, Top
27	WP98129 Whirlpool Screw
28	Freezer Floor
29	Bracket, Fan Motor
31	WP2184574 Whirlpool Refrigerator Gear Wheel
32	Roller, Slide
33	WP489478 Whirlpool Refrigerator Screw
34	Knob, Damper
35	Side Support, Floor Assembly
36	WP2205079 Whirlpool Refrigerator Seal
37	WP2210509 Whirlpool Refrigerator Tub Valve
38	Center Support, Floor Assembly
39	Housing Base
40	Air Seal, Foam
41	Wiring Harness, Freezer Light
42	Electrical Shield, Freezer Light
43	4396822 Whirlpool Refrigerator Light Bulb
44	REAR FENCE PULL-OUT FREEZER FLOOR
45	Shield, heat
46	Control, Freezer
47	Gear Wheel, Freezer Control
48	Gasket, Rear
49	Bracket Assembly, Water Filter
50	Cover, Filter
51	W10823511 Whirlpool Refrigerator Water Tube
52	Tube, Filter Inlet
53	Cover, Tubing
54	WPL 2213384
55	Clip, Retainer
56	Insulation, Water Tube
