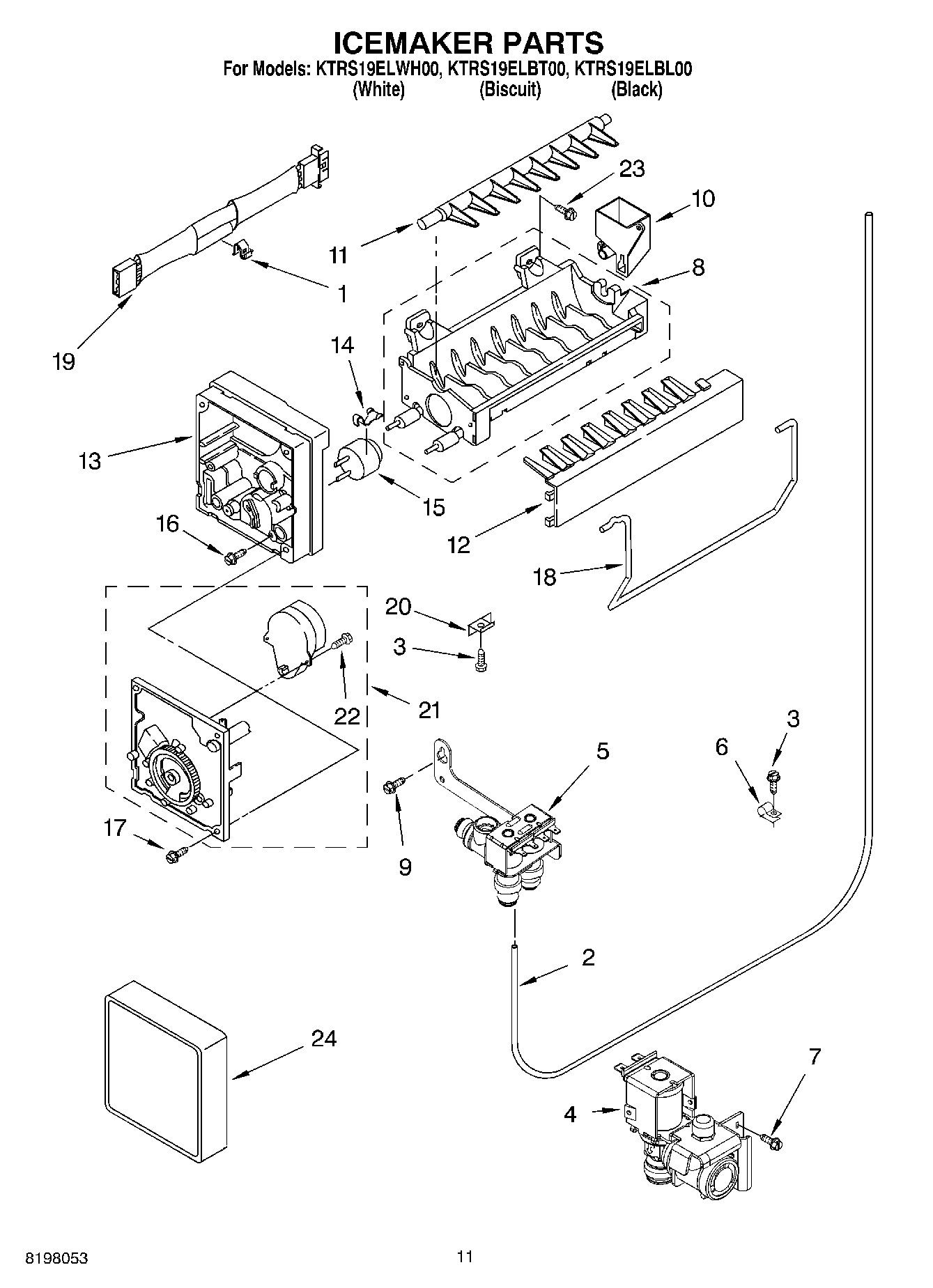

KTRS19ELBL00 06 – ICE MAKERadmin2025-04-26T12:32:35+00:00KTRS19ELBL00 06 – ICE MAKER ProductsPositionProduct1WP628379 Whirlpool Refrigerator Clip2W10823511 Whirlpool Refrigerator Water Tube3WP489478 Whirlpool Refrigerator Screw4VALVE-INLT REFR5WP2188785 Whirlpool Water Inlet Valve6WP488366 Whirlpool Refrigerator Clamp7WP489464 Whirlpool Refrigerator Screw8WPW10190929 Whirlpool Refrigerator Ice Maker Mold8WP542638 Whirlpool Refrigerator Grease9WP489442 Whirlpool Refrigerator Screw10WP628356 Whirlpool Refrigerator Fill Cup11WP627843 Whirlpool Refrigerator Ejector Arm12WP2182124 Whirlpool Refrigerator Stripper Arm13WP2195914 Whirlpool Refrigerator Ice Maker Housing14WP2315522 Whirlpool Refrigerator Clip15Cement Alumilastic)15WP627985 Whirlpool Icemaker Cycling Thermostat168533917 Whirlpool Refrigerator Screw17WP681249 Whirlpool Screw Assembly18WP627792 Whirlpool Refrigerator Shut Off Arm19WP2187464 Whirlpool Refrigerator Wire Harness20W11500948 Whirlpool Refrigerator Bracket21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly22489136 Whirlpool Refrigerator Screw23WP488163 Whirlpool Refrigerator Screw24WPW10289690 Whirlpool Ice Maker Cover994317943 Whirlpool Refrigerator Ice Maker Assembly
