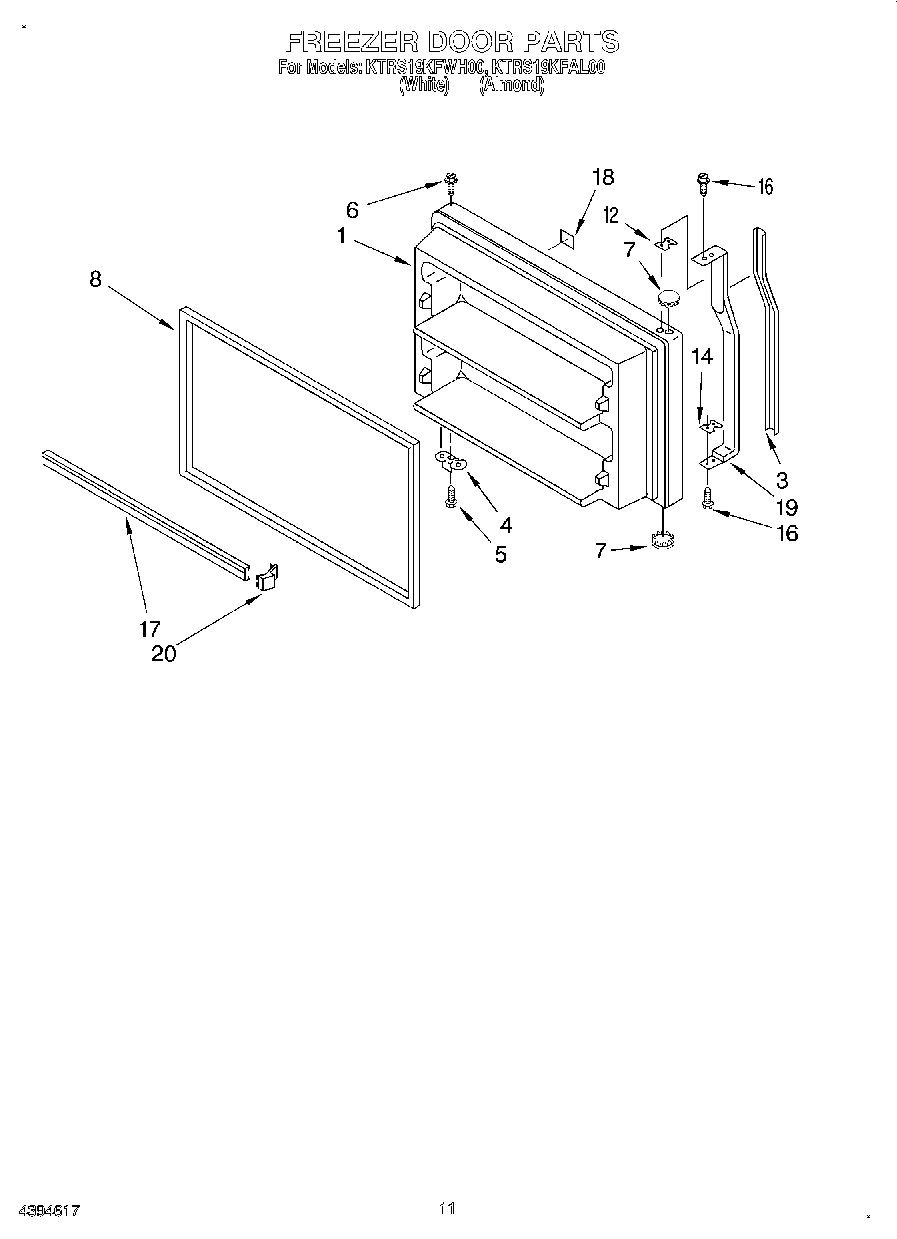

KTRS19KFAL00 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2195481
	Torx Key
	WPL LIT2195582
	WPL LIT2195462
1	Freezer Door (Includes No.6 & No.8) (Almond)
1	Freezer Door (Includes Illus. 2,6 & 8)
3	Insert, Handle (Almond)
3	Insert, Handle (White)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159327 Whirlpool Refrigerator Door Gasket
12	Spacer, Handle
14	Shim, Bottom
16	WP488920 Whirlpool Refrigerator Screw
17	Trim, Door Shelf (2)
18	Nameplate (White Model)
18	Nameplate (Almond Model)
19	Handle
20	ENDCAP
20	285006 Whirlpool Spray
20	Almond (Uncut)
20	Door Reversal Instructions
20	72032 Whirlpool Touch Up Paint Black
20	TAPE, VINYL (3/4 X 108“)
20	350956 Whirlpool Spray Assembly
20	72017 Whirlpool Appliance Touch-Up Paint White
20	799344 Whirlpool Refrigerator Paint
20	WP72107 Whirlpool Touchup
20	212643 Whirlpool Refrigerator Permagum Sealer
20	350942 Whirlpool Spray Paint
20	511873 Whirlpool Refrigerator Paint
20	606755 Whirlpool Refrigerator Bag
20	833938 Whirlpool Refrigerator Terminal
20	876370 Whirlpool Refrigerator Insulation
20	WP503695 Whirlpool Refrigerator Sealer
20	WP505587 Whirlpool Refrigerator Sealer
20	WP542638 Whirlpool Refrigerator Grease
20	CEMENT, ALUMILASTIC (1 1/4 OZ.)
20	WPL 799832
20	WPL 799833
20	WPL 876029
20	350930 Whirlpool White Spray Paint
