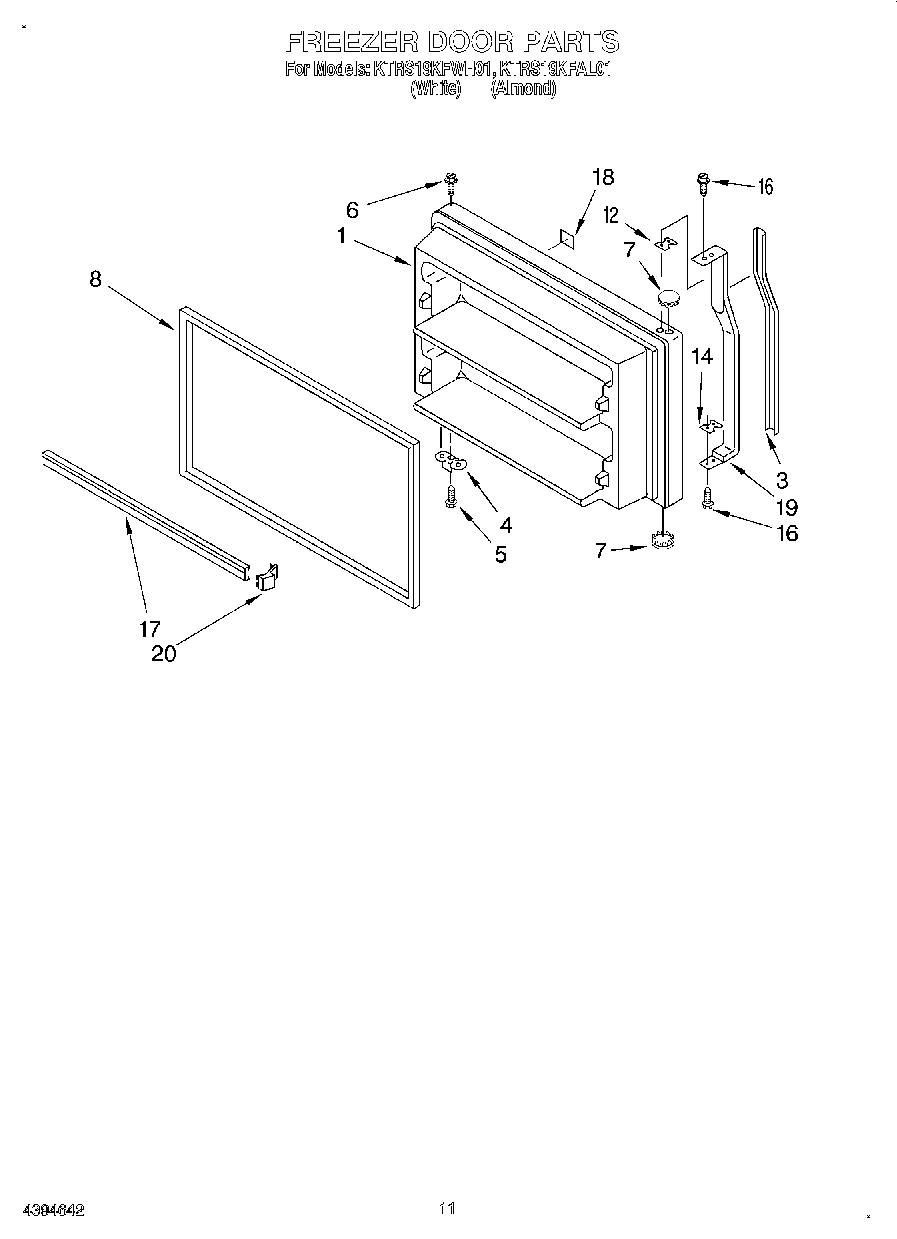

KTRS19KFAL01 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2195481
	Torx Key
	WPL LIT2195582
	WPL LIT2195462
1	Freezer Door (Includes No.6 & No.8) (Almond)
1	Freezer Door (Includes Illus. 2,6 & 8)
3	Insert, Handle (Almond)
3	Insert, Handle (White)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159327 Whirlpool Refrigerator Door Gasket
12	Spacer, Handle
14	Shim, Bottom
16	WP488920 Whirlpool Refrigerator Screw
17	Trim, Door Shelf (2)
18	Nameplate (White Model)
18	Nameplate (Almond Model)
19	Handle
20	ENDCAP
100	72032 Whirlpool Touch Up Paint Black
100	285006 Whirlpool Spray
100	Almond (Uncut)
100	Door Reversal Instructions
100	FeaturePak (Includes 4,8,10, 14,16,20,41,45) Also See Ref. & Frz.Dr. Pgs.
100	CEMENT, ALUMILASTIC (1 1/4 OZ.)
100	350956 Whirlpool Spray Assembly
100	72017 Whirlpool Appliance Touch-Up Paint White
100	799344 Whirlpool Refrigerator Paint
100	WP72107 Whirlpool Touchup
100	212643 Whirlpool Refrigerator Permagum Sealer
100	350942 Whirlpool Spray Paint
100	511873 Whirlpool Refrigerator Paint
100	606755 Whirlpool Refrigerator Bag
100	833938 Whirlpool Refrigerator Terminal
100	876370 Whirlpool Refrigerator Insulation
100	WP503695 Whirlpool Refrigerator Sealer
100	WP505587 Whirlpool Refrigerator Sealer
100	WP542638 Whirlpool Refrigerator Grease
100	TAPE, VINYL (3/4 X 108“)
100	WPL 799832
100	WPL 799833
100	WPL 876029
100	350930 Whirlpool White Spray Paint
