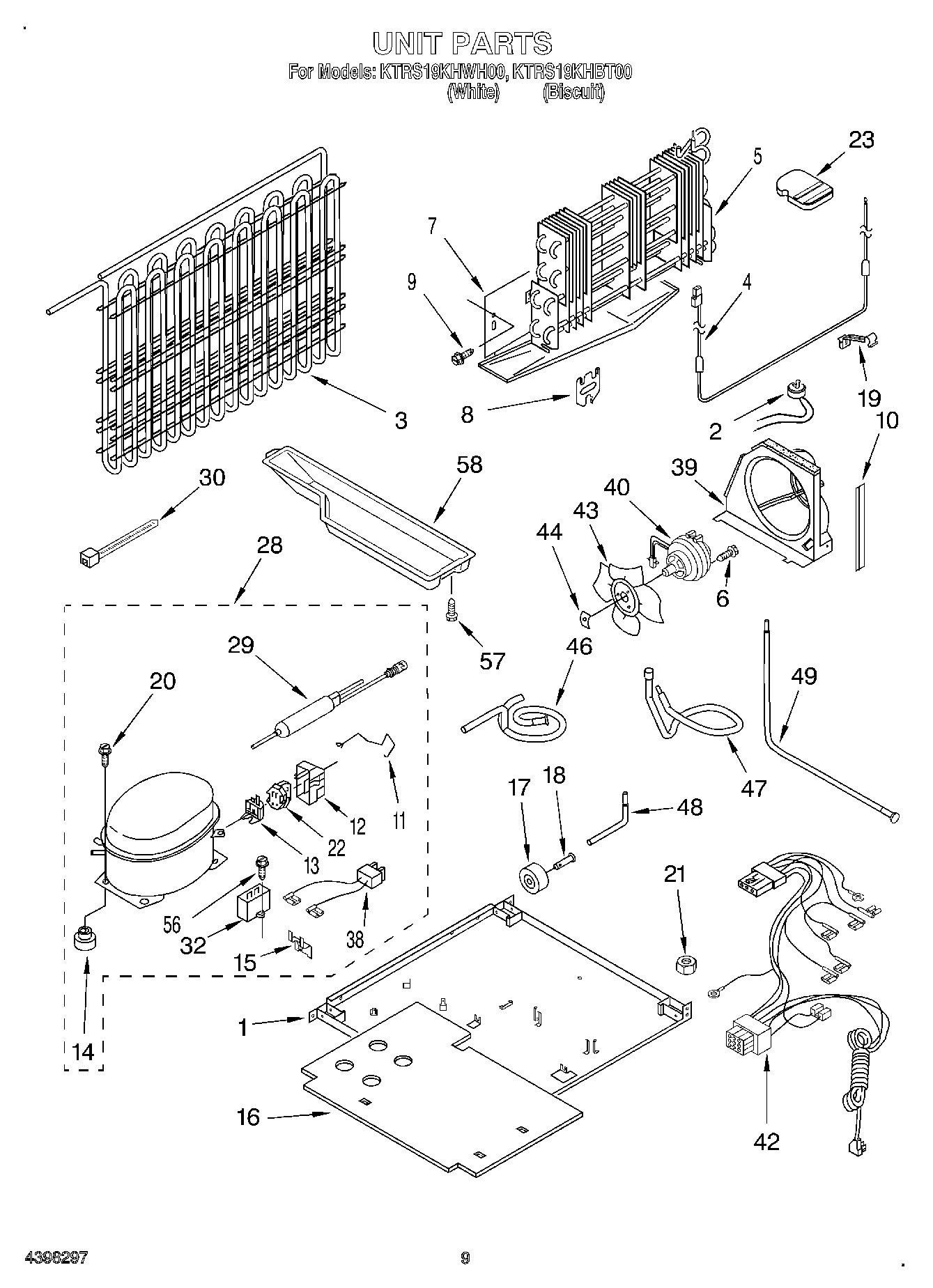

KTRS19KHBT00 05 – UNIT

Products

Position	Product
1	Plate, Unit Mounting
2	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
3	Condenser
4	WP2315531 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	WP8281196 Whirlpool Screw
7	Drain Pan
8	Bracket, Heater
9	WP489478 Whirlpool Refrigerator Screw
10	Extension, Air Baffle
11	case spring
12	Case, Relay
13	2183408 Whirlpool Refrigerator Overload
13	4387913 Whirlpool Refrigerator Primary Overload Relay
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	876811 Whirlpool Grommet
15	Clip, Capacitator
16	Cover, Unit
17	4388239 Whirlpool Refrigerator Primary Cabinet Roller
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	Nut (Not Serviced)
22	Relay (Production (Service – See Overload))
23	Support Block
28	Installation Kit
28	W10309988 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
32	WP4387764 Whirlpool Run Capacitor
38	WP2172890 Whirlpool Refrigerator Wire
39	Air Baffle
40	833697 Whirlpool Condenser Fan Motor
42	Wire Assy. Unit
43	Blade, Fan
44	WP486692 Whirlpool Refrigerator Nut
46	Tube, Discharge
47	Tube, Suction
48	2154109 Whirlpool Refrigerator Tube
49	Tube, Condenser To Heat Loop
56	W11693756 Whirlpool Screw Assembly
57	Screw
58	VALVE, ACCESS (5/8“)
58	WP978025 Whirlpool Refrigerator Valve
58	876764 Whirlpool Refrigerator Primary Valve
58	978026 Whirlpool Refrigerator Primary Valve
58	VALVE, ACCESS (1/2“)
58	Evap. Tray
58	978027 Whirlpool Refrigerator Primary Valve
58	978030 Whirlpool Refrigerator Valve
58	Start Kit
