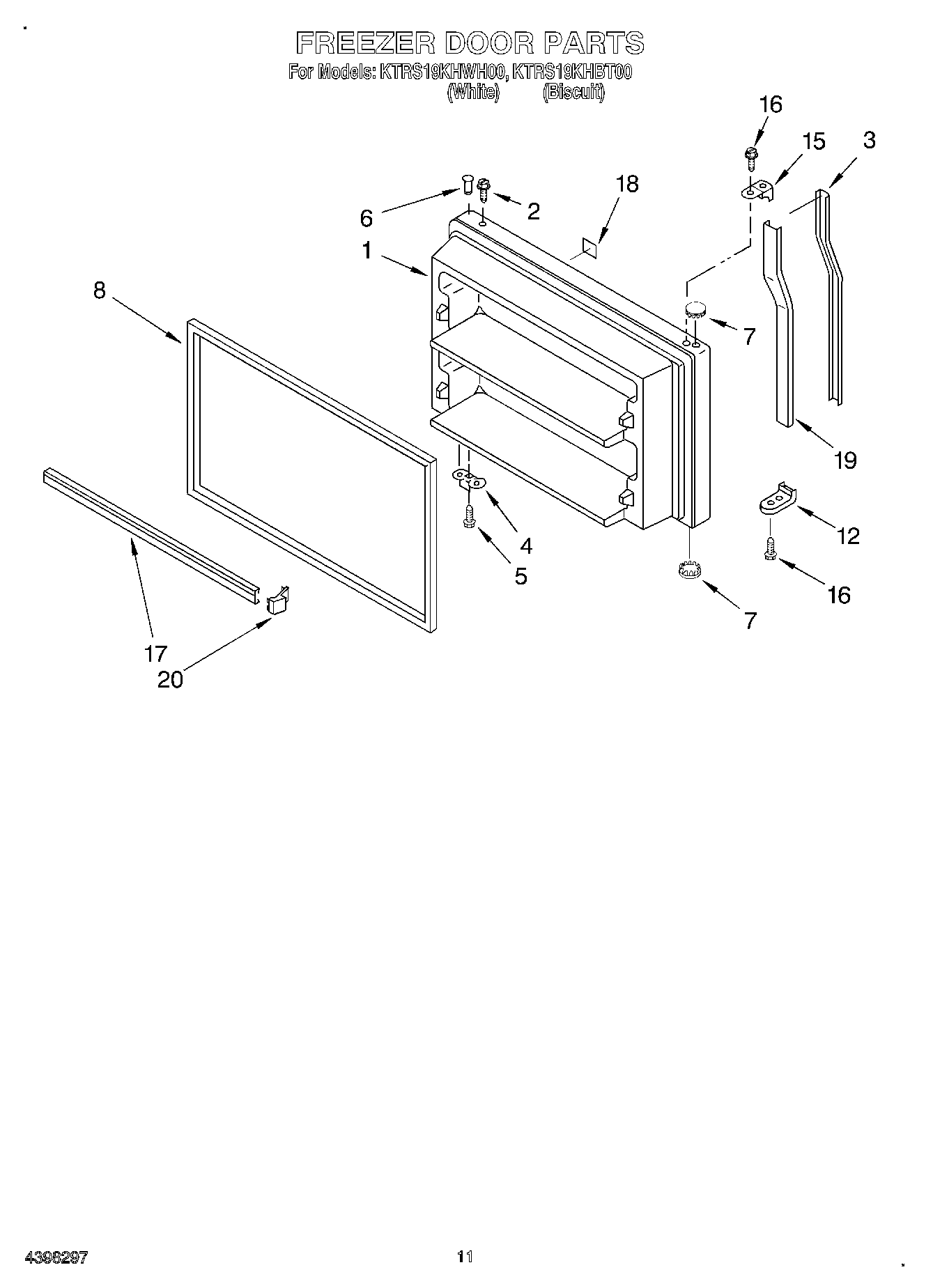

KTRS19KHBT00 06 – FREEZER DOOR, OPTIONAL

Products

Position	Product
1	Freezer Door (Includes Illus. 2,6 & 8)
1	Freezer Door Panel (Biscuit)
2	WP8281206 Whirlpool Refrigerator Screw
3	Insert, Handle (Biscuit)
3	Insert, Handle (White)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212649 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159327 Whirlpool Refrigerator Door Gasket
12	Endcap
12	Endcap (Biscuit)
15	Endcap (Biscuit)
15	Endcap
16	WP489357 Whirlpool Recessed Screw
17	Trim-Door (2)
18	Nameplate (Biscuit)
18	Nameplate (White)
19	Insert, Handle (Biscuit)
19	Insert, Retainer (White)
20	ENDCAP
20	350942 Whirlpool Spray Paint
20	212643 Whirlpool Refrigerator Permagum Sealer
20	WP72107 Whirlpool Touchup
20	799344 Whirlpool Refrigerator Paint
20	Almond (Uncut)
20	72017 Whirlpool Appliance Touch-Up Paint White
20	350956 Whirlpool Spray Assembly
20	Torx Key
20	72032 Whirlpool Touch Up Paint Black
20	285006 Whirlpool Spray
20	TAPE, VINYL (3/4 X 108“)
20	WP542638 Whirlpool Refrigerator Grease
20	WPL 799832
20	WPL 799833
20	WPL 876029
20	WP505587 Whirlpool Refrigerator Sealer
20	WP503695 Whirlpool Refrigerator Sealer
20	876370 Whirlpool Refrigerator Insulation
20	833938 Whirlpool Refrigerator Terminal
20	606755 Whirlpool Refrigerator Bag
20	CEMENT, ALUMILASTIC (1 1/4 OZ.)
20	511873 Whirlpool Refrigerator Paint
20	350930 Whirlpool White Spray Paint
