KTRS19KJWH01 06 – FREEZER DOOR, OPTIONAL

KTRS19KJWH01 06 – FREEZER DOOR, OPTIONAL

Written by

in

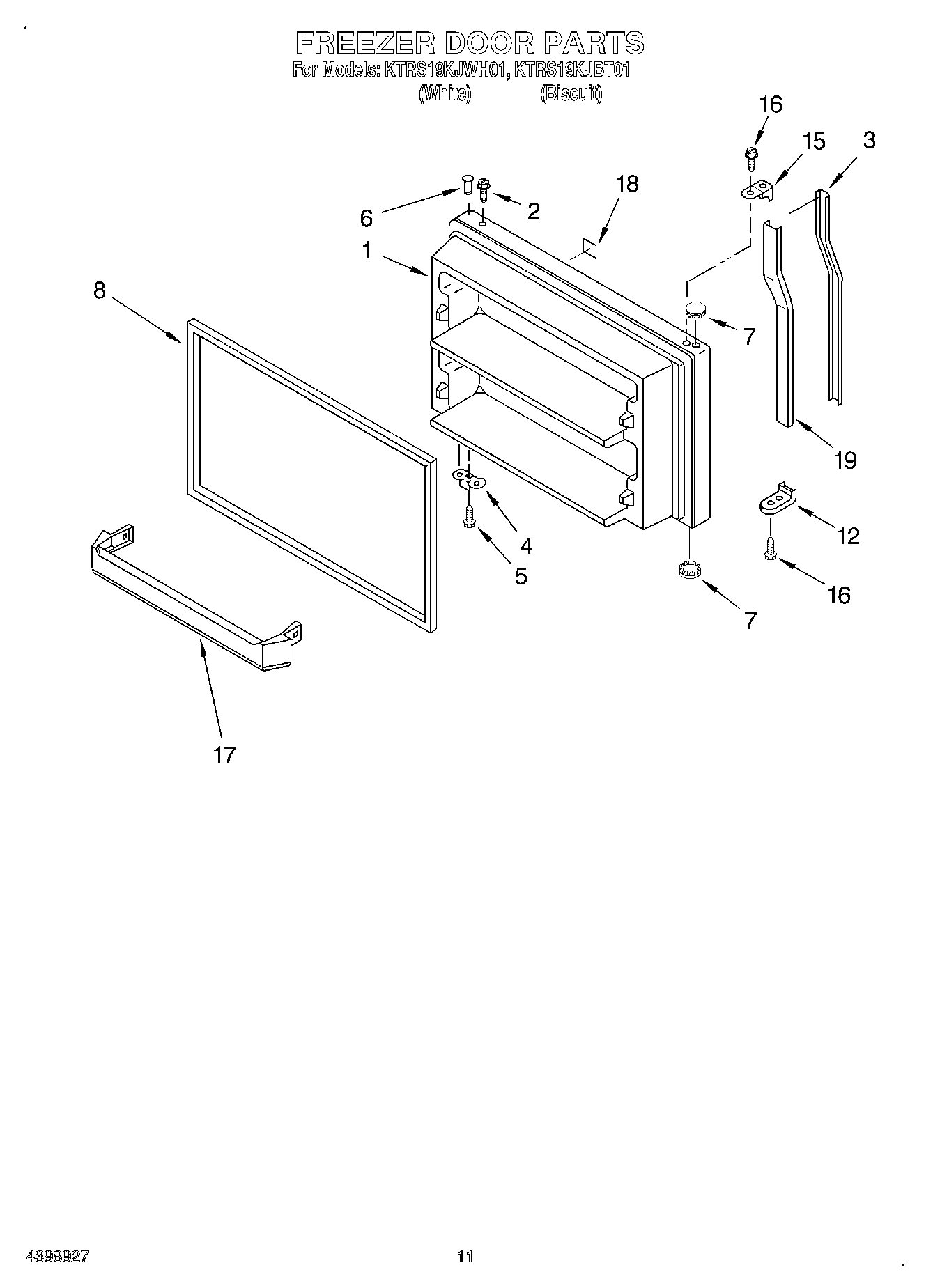

KTRS19KJWH01 06 – FREEZER DOOR, OPTIONAL

Products

PositionProduct
1Freezer Door Panel (Biscuit)
1Freezer Door (Includes Illus. 2,6 & 8)
2WP8281206 Whirlpool Refrigerator Screw
3Insert, Handle (White)
3Insert, Handle (Biscuit)
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212649 Whirlpool Refrigerator Button Plug
82159327 Whirlpool Refrigerator Door Gasket
12Endcap (Biscuit)
12Endcap
15Endcap (Biscuit)
15Endcap
16WP489357 Whirlpool Recessed Screw
17Trivet, Door
18Nameplate (Biscuit)
18Nameplate (White an
19Insert, Handle (Biscuit)
19212643 Whirlpool Refrigerator Permagum Sealer
19Insert, Retainer (White)
19PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
1972032 Whirlpool Touch Up Paint Black
19285006 Whirlpool Spray
19WPL 876029
19511873 Whirlpool Refrigerator Paint
194392901 Whirlpool Biscuit Spray Paint
194392899 Whirlpool Biscuit Touch-Up Paint
19350942 Whirlpool Spray Paint
19Almond (Uncut)
19WP72107 Whirlpool Touchup
19799344 Whirlpool Refrigerator Paint
1972017 Whirlpool Appliance Touch-Up Paint White
19350956 Whirlpool Spray Assembly
19606755 Whirlpool Refrigerator Bag
19833938 Whirlpool Refrigerator Terminal
19876370 Whirlpool Refrigerator Insulation
19WPL 799833
19WPL 799832
19Enamel, Black (1 Qt. Uncut)
19CEMENT, ALUMILASTIC (1 1/4 OZ.)
19TAPE, VINYL (3/4 X 108“)
19Torx Key
19WP542638 Whirlpool Refrigerator Grease
19WP505587 Whirlpool Refrigerator Sealer
19WP503695 Whirlpool Refrigerator Sealer
19350930 Whirlpool White Spray Paint
