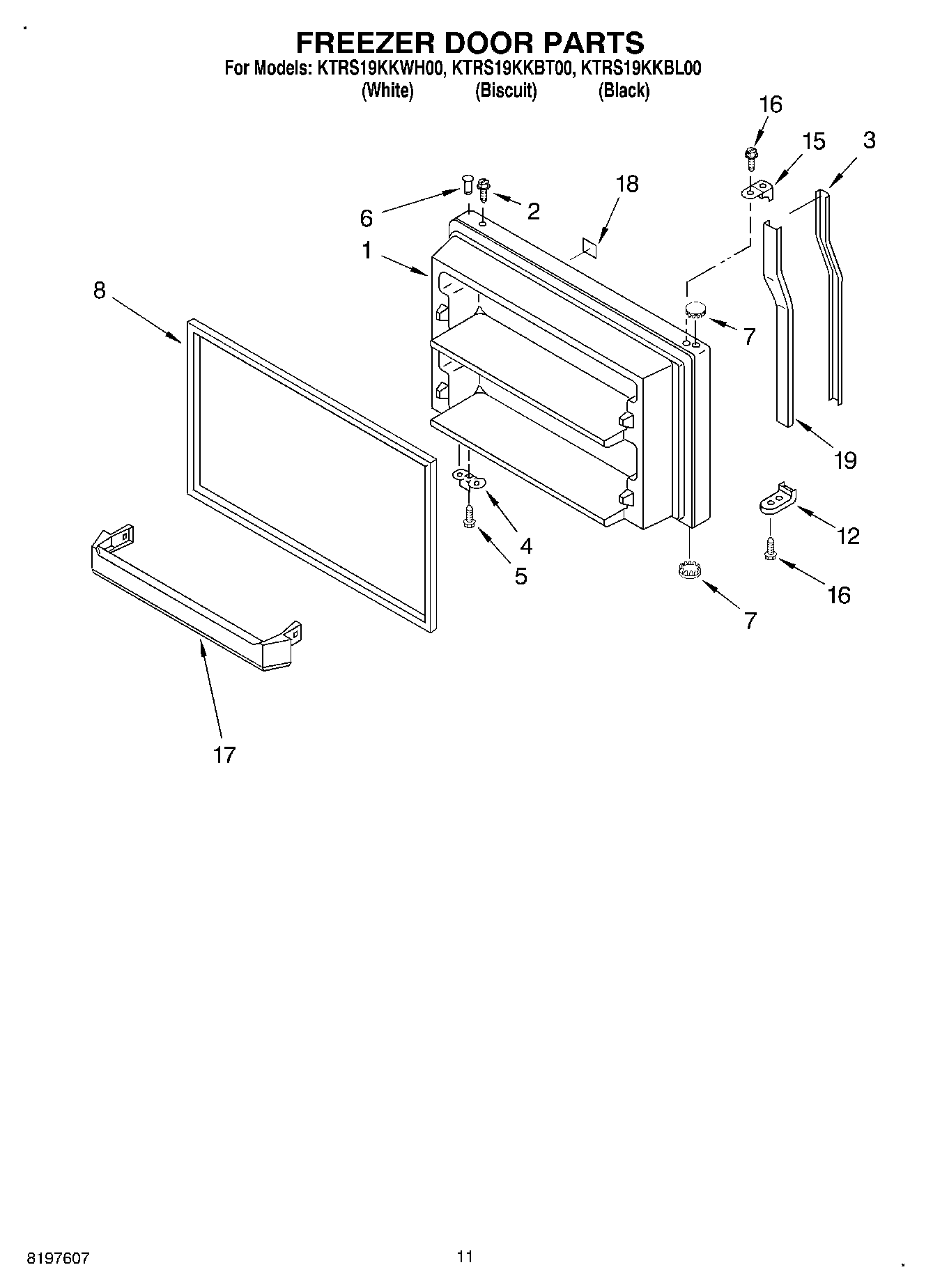

KTRS19KKBL00 06 – FREEZER DOOR, OPTIONAL

KTRS19KKBL00 06 – FREEZER DOOR, OPTIONAL

Written by

in

KTRS19KKBL00 06 – FREEZER DOOR, OPTIONAL

Products

Position	Product
1	Freezer Door Panel (Black)
1	Freezer Door Panel (Biscuit)
1	Freezer Door (Includes Illus. 2,6 & 8)
2	WP8281206 Whirlpool Refrigerator Screw
3	Insert, Handle (Black)
3	Insert, Handle (Biscuit)
3	Insert, Handle (White)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212649 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159327 Whirlpool Refrigerator Door Gasket
12	Endcap
12	End Cap (Black)
12	Endcap (Biscuit)
15	Endcap, Handle (Black)
15	Endcap
15	Endcap (Biscuit)
16	WP489357 Whirlpool Recessed Screw
17	Trivet, Door
18	Nameplate (Black)
18	Nameplate (Biscuit)
18	Nameplate (White)
19	350942 Whirlpool Spray Paint
19	Insert, Retainer (Black)
19	285006 Whirlpool Spray
19	72032 Whirlpool Touch Up Paint Black
19	Insert, Retainer (White)
19	Insert, Handle (Biscuit)
19	Enamel, Black (1 Qt. Uncut)
19	606755 Whirlpool Refrigerator Bag
19	511873 Whirlpool Refrigerator Paint
19	4392901 Whirlpool Biscuit Spray Paint
19	4392899 Whirlpool Biscuit Touch-Up Paint
19	212643 Whirlpool Refrigerator Permagum Sealer
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	350956 Whirlpool Spray Assembly
19	833938 Whirlpool Refrigerator Terminal
19	876370 Whirlpool Refrigerator Insulation
19	WP503695 Whirlpool Refrigerator Sealer
19	W11729596 Whirlpool Ice Maker Field Install Kit
19	WPL 876029
19	WPL 799833
19	WPL 799832
19	CEMENT, ALUMILASTIC (1 1/4 OZ.)
19	TAPE, VINYL (3/4 X 108“)
19	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
19	Torx Key
19	WP542638 Whirlpool Refrigerator Grease
19	WP505587 Whirlpool Refrigerator Sealer
19	350930 Whirlpool White Spray Paint
