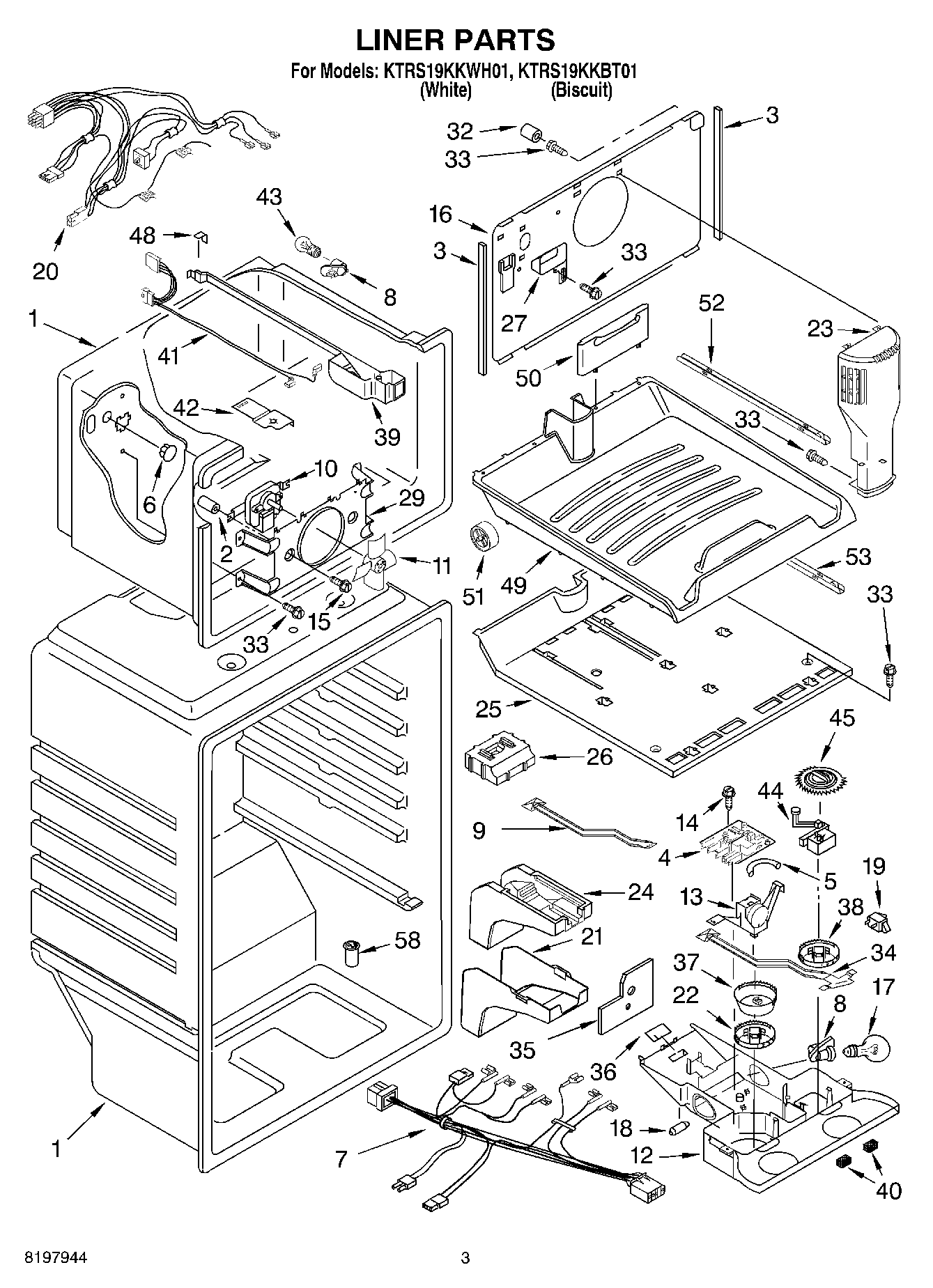

KTRS19KKBT01 02 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5Thermostat Tube Barrier
6WP941839 Whirlpool Refrigerator Button Plug
7Wire Assembly, Control Box
84387478 Whirlpool Refrigerator Light Socket
10Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assembly (Includes Items 5, 18, & 36)
14WP98129 Whirlpool Screw
15Screw
16Cover-Evaporator
17RANGE ONLY 40W 120V APPL BULB
18Weight, Thermal
19W11384469 Whirlpool Door Switch
20Wire Assembly, Freezer Compartment
21Cover, Air Diffuser
22Knob, Thermostat
23Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
25Freezer Floor
26Air Diffuser, Top
27Cover, Hole
29Bracket, Fan Motor
32WP487996 Whirlpool Refrigerator Cap Tube
33WP489478 Whirlpool Refrigerator Screw
34Damper, Air (Slide)
35Shield, heat
36WP2205079 Whirlpool Refrigerator Seal
37WP2184574 Whirlpool Refrigerator Gear Wheel
38Knob, Damper
39Housing Base
40Air Seal, Foam
41Wiring Harness, Freezer Light
42Electrical Shield, Freezer Light
434396822 Whirlpool Refrigerator Light Bulb
44Control, Freezer
45Gear Wheel, Freezer Control
48Gasket, Rear
49Pullout, Freezer Floor (Includes Item 56)
50REAR FENCE PULL-OUT FREEZER FLOOR
51Roller, Slide
52Side Support, Floor Assembly
53Center Support, Floor Assembly
58WP2210509 Whirlpool Refrigerator Tub Valve
