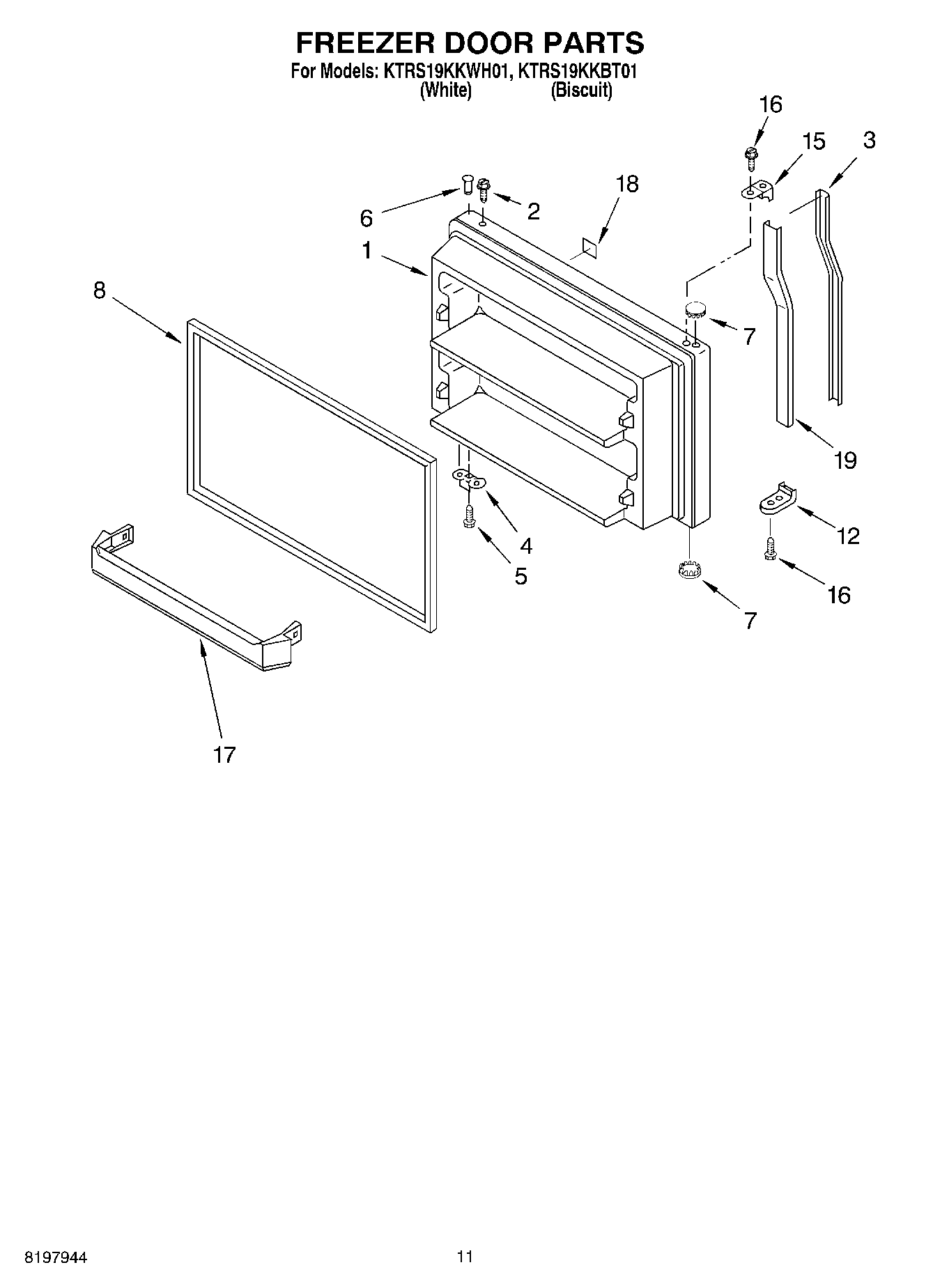

KTRS19KKBT01 06 – FREEZER DOOR, OPTIONAL

KTRS19KKBT01 06 – FREEZER DOOR, OPTIONAL

Written by

in

KTRS19KKBT01 06 – FREEZER DOOR, OPTIONAL

Products

PositionProduct
1Freezer Door Panel (Biscuit)
1Freezer Door (Includes Illus. 2,6 & 8)
2WP8281206 Whirlpool Refrigerator Screw
3Insert, Handle (White)
3Insert, Handle (Biscuit)
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212649 Whirlpool Refrigerator Button Plug
82159327 Whirlpool Refrigerator Door Gasket
12Endcap (Biscuit)
12Endcap
15Endcap
15Endcap (Biscuit)
16WP489357 Whirlpool Recessed Screw
17Trivet, Door
18Nameplate (Biscuit)
18Nameplate (White)
19Enamel, Black (1 Qt. Uncut)
19Insert, Handle (Biscuit)
19285006 Whirlpool Spray
1972032 Whirlpool Touch Up Paint Black
19Insert, Retainer (White)
194392899 Whirlpool Biscuit Touch-Up Paint
19876370 Whirlpool Refrigerator Insulation
19833938 Whirlpool Refrigerator Terminal
19606755 Whirlpool Refrigerator Bag
19511873 Whirlpool Refrigerator Paint
194392901 Whirlpool Biscuit Spray Paint
19350942 Whirlpool Spray Paint
19212643 Whirlpool Refrigerator Permagum Sealer
19799344 Whirlpool Refrigerator Paint
1972017 Whirlpool Appliance Touch-Up Paint White
19WP503695 Whirlpool Refrigerator Sealer
19WP505587 Whirlpool Refrigerator Sealer
19W11729596 Whirlpool Ice Maker Field Install Kit
19WPL 876029
19WPL 799833
19WPL 799832
19CEMENT, ALUMILASTIC (1 1/4 OZ.)
19TAPE, VINYL (3/4 X 108“)
19PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
19Torx Key
19WP542638 Whirlpool Refrigerator Grease
19350930 Whirlpool White Spray Paint
