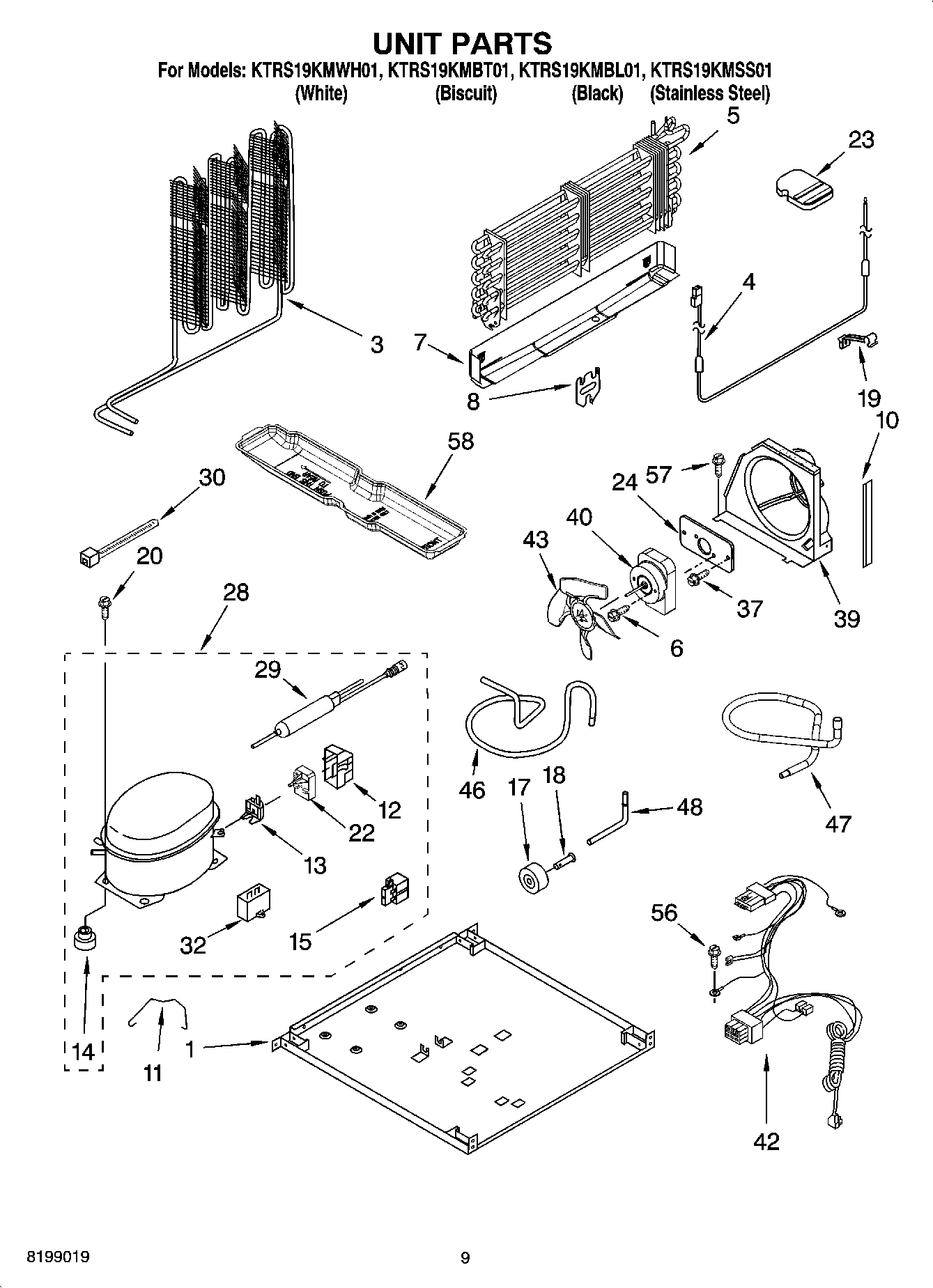

KTRS19KMSS01 05 – UNIT PARTS

KTRS19KMSS01 05 – UNIT PARTS

Written by

in

KTRS19KMSS01 05 – UNIT PARTS

Products

PositionProduct
1Plate, Unit Mounting
3WP2214960 Whirlpool Refrigerator Condenser
4WP2315531 Whirlpool Refrigerator Heater
5Evaporator Assy.
68281197 Whirlpool Refrigerator Screw
7Drain Pan
8Bracket, Heater
10Extension, Air Baffle
112212996 Whirlpool Refrigerator Retainer
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2214067 Whirlpool Refrigerator Overload Relay
14876811 Whirlpool Grommet
14WP4387558 Whirlpool Refrigerator Compressor Grommet
15W10920279 Whirlpool Refrigerator Start Relay
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
22WP2225929 Whirlpool Refrigerator Start Device
23Support Block
24Plate
28W10309988 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WPW10662129 Whirlpool Refrigerator Run Capacitor
37WP8281196 Whirlpool Screw
39Air Baffle
40W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
422187382 Whirlpool Refrigerator Wire Harness
43W11458267 Whirlpool Refrigerator Fan Blade
46Tube, Discharge
47Tube, Suction
482154109 Whirlpool Refrigerator Tube
56WP489128 Whirlpool Refrigerator Screw
573400518 Whirlpool Oven Foot Mount Screw
588201826 Whirlpool Refrigerator Evaporator Tray
58Following Parts Not Illustrated and Optional Parts Not Included
58978026 Whirlpool Refrigerator Primary Valve
58876764 Whirlpool Refrigerator Primary Valve
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58WP978025 Whirlpool Refrigerator Valve
58VALVE, ACCESS (1/2“)
58VALVE, ACCESS (5/8“)
58REFRIGERANT CHARGE 4.0 Ozs. (R134A)
