KTRS19KMWH00 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

KTRS19KMWH00 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Written by

in

KTRS19KMWH00 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
Cleaner, Stainless Steel
WPL ARI111793A
WPL ARI111792A
WPL ARI111791A
WPL ARI111790A
WPL ARI111794A
72032 Whirlpool Touch Up Paint Black
TAPE, VINYL (3/4 X 108“)
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
WP542638 Whirlpool Refrigerator Grease
WP505587 Whirlpool Refrigerator Sealer
285006 Whirlpool Spray
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
833938 Whirlpool Refrigerator Terminal

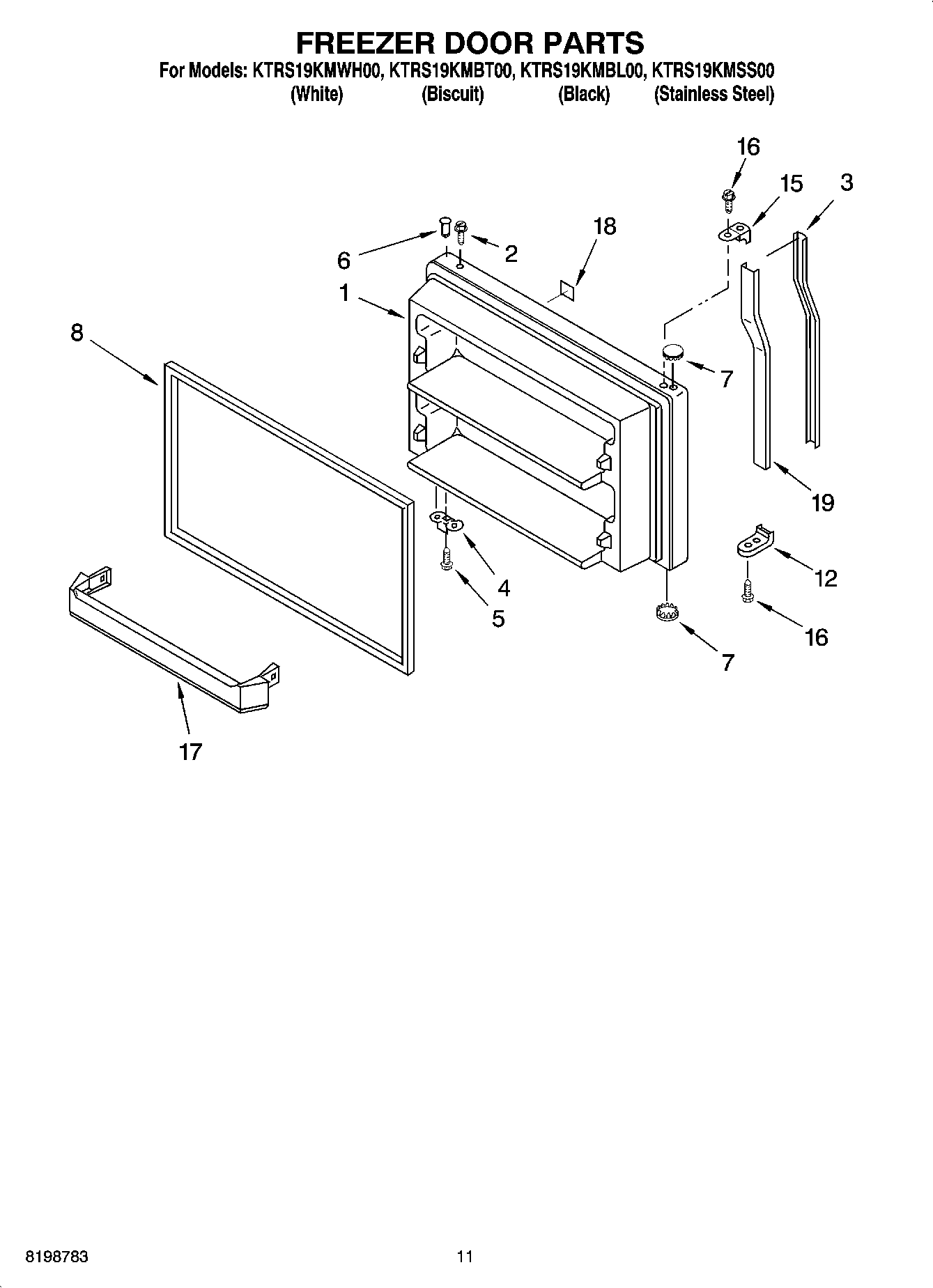

1Freezer Door (Includes 6 & 8) (Stainless)
1Freezer Door (Includes Illus. 2,6 & 8)
1Freezer Door Panel (Biscuit)
1Freezer Door Panel (Black)
2WP8281206 Whirlpool Refrigerator Screw
3Insert, Handle (Biscuit)
3Insert, Handle (White)
3Insert, Handle (Black)
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212649 Whirlpool Refrigerator Button Plug
82177304 Whirlpool Refrigerator FIP Gasket
82159327 Whirlpool Refrigerator Door Gasket
12Endcap (Biscuit)
12Endcap
12End Cap (Black)
15Endcap
15Endcap (Biscuit)
15Endcap, Handle (Black)
16WP489357 Whirlpool Recessed Screw
17Trivet, Door
18Nameplate (White)
18Nameplate (Black)
18Nameplate (Biscuit)
19Insert, Retainer (Black)
19Insert, Retainer (White)
19Insert, Handle (Biscuit)
