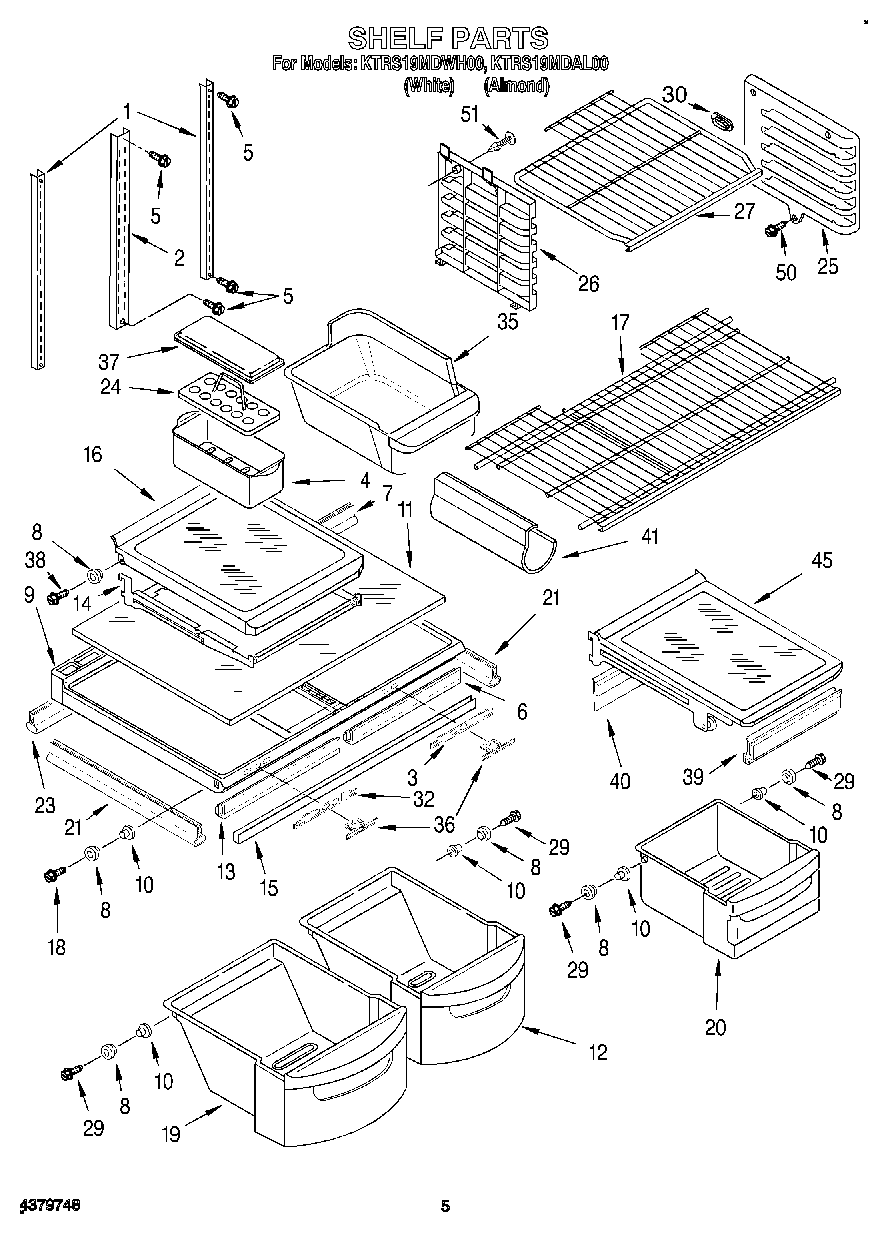

KTRS19MDAL00 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	Slide, Humidity
4	W10136387A Whirlpool Refrigerator Egg Container
5	W11544659 Whirlpool Refrigerator Screw
6	WP1125528 Whirlpool Refrigerator Gasket
7	Gasket, Crisper Cover (Rear)
8	Roller
9	Crisper Cover (Includes Rollers)
10	Eyelet, Roller
11	Glass, Crisper Cover
12	Pan, Crisper (Includes Rollers)
14	Frame Assembly, Spillguard
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard (3) (Includes Rollers)
17	WP2176275 Whirlpool Refrigerator Wire Shelf
18	WPW10272364 Whirlpool Refrigerator Screw
19	Pan, Crisper (Includes Rollers)
20	Pan, Meat (Includes Rollers)
21	Gasket, Crisper Cover (Side) (4)
23	Gasket, Pan Cover-Rear
24	WP2177817 Whirlpool Refrigerator Egg Container
25	Bracket, Shelf Mounting (R.S.)
26	Bracket, Shelf Mounting (L.S.)
27	Shelf, Freezer (Top)
29	WP489261 Whirlpool Refrigerator Screw
30	Plug, Shelf Cup
32	Slide, Humidity
35	Ice Cube Pan
36	Button, Humidity Control
37	Cover
38	Screw
39	Gasket, Front
40	Gasket, Rear
41	W10777924 Whirlpool Refrigerator Wine Rack
45	Shelf Assembly, Spillguard
50	WP489442 Whirlpool Refrigerator Screw
51	Fastener
