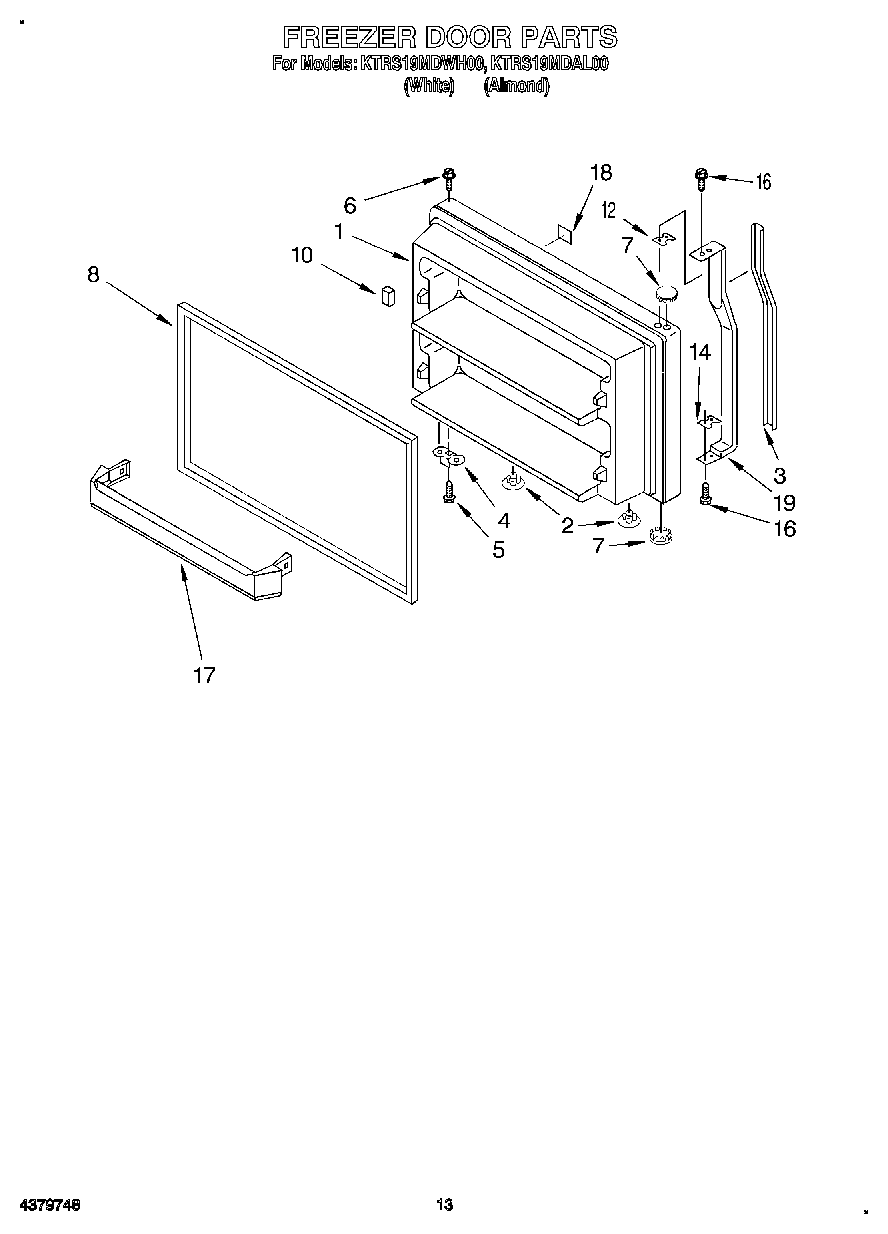

KTRS19MDAL00 07 – FREEZER DOOR, LIT/OPTIONALadmin2025-04-26T12:32:18+00:00KTRS19MDAL00 07 – FREEZER DOOR, LIT/OPTIONAL
Products
| Position | Product |
|---|
| WPL LIT2179220 |
| Torx Key |
| Modular Icemaker Service Sheet |
| WPL LIT2172667 |
| WPL LIT2179217 |
| 1 | Freezer Door (Includes No.8) (Almond) |
| 1 | Freezer Door (Includes No.8) |
| 2 | Hole Plug (2) |
| 2 | Hole Plug (2) (Almond) |
| 3 | Insert, Handle (Almond) |
| 3 | Insert, Handle (White) |
| 4 | Bracket, Door Stop |
| 5 | WP488921 Whirlpool Refrigerator Screw |
| 6 | WP8281206 Whirlpool Refrigerator Screw |
| 7 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 7 | Hole Plug (Almond) |
| 8 | Door Gasket, Magnetic (Service) |
| 10 | Door Clip, Freezer Light |
| 12 | Spacer, Handle |
| 14 | Shim, Bottom |
| 16 | WP488920 Whirlpool Refrigerator Screw |
| 17 | Trivet, Door |
| 18 | Nameplate (White Model) |
| 18 | Nameplate (Almond Model) |
| 19 | WPL 799833 |
| 19 | Handle |
| 19 | Almond (Uncut) |
| 19 | WP72107 Whirlpool Touchup |
| 19 | 350930 Whirlpool White Spray Paint |
| 19 | 799344 Whirlpool Refrigerator Paint |
| 19 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 19 | Door Reversal Instructions |
| 19 | 350956 Whirlpool Spray Assembly |
| 19 | WPL 799832 |
| 19 | WP542638 Whirlpool Refrigerator Grease |
| 19 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 19 | WPL 876029 |
| 19 | WP505587 Whirlpool Refrigerator Sealer |
| 19 | WP503695 Whirlpool Refrigerator Sealer |
| 19 | 285006 Whirlpool Spray |
| 19 | 72032 Whirlpool Touch Up Paint Black |
| 19 | 876370 Whirlpool Refrigerator Insulation |
| 19 | 833938 Whirlpool Refrigerator Terminal |
| 19 | 606755 Whirlpool Refrigerator Bag |
| 19 | CEMENT, ALUMILASTIC (1 1/4 OZ.) |
| 19 | 511873 Whirlpool Refrigerator Paint |
| 19 | 350942 Whirlpool Spray Paint |
| 19 | TAPE, VINYL (3/4 X 108``) |
