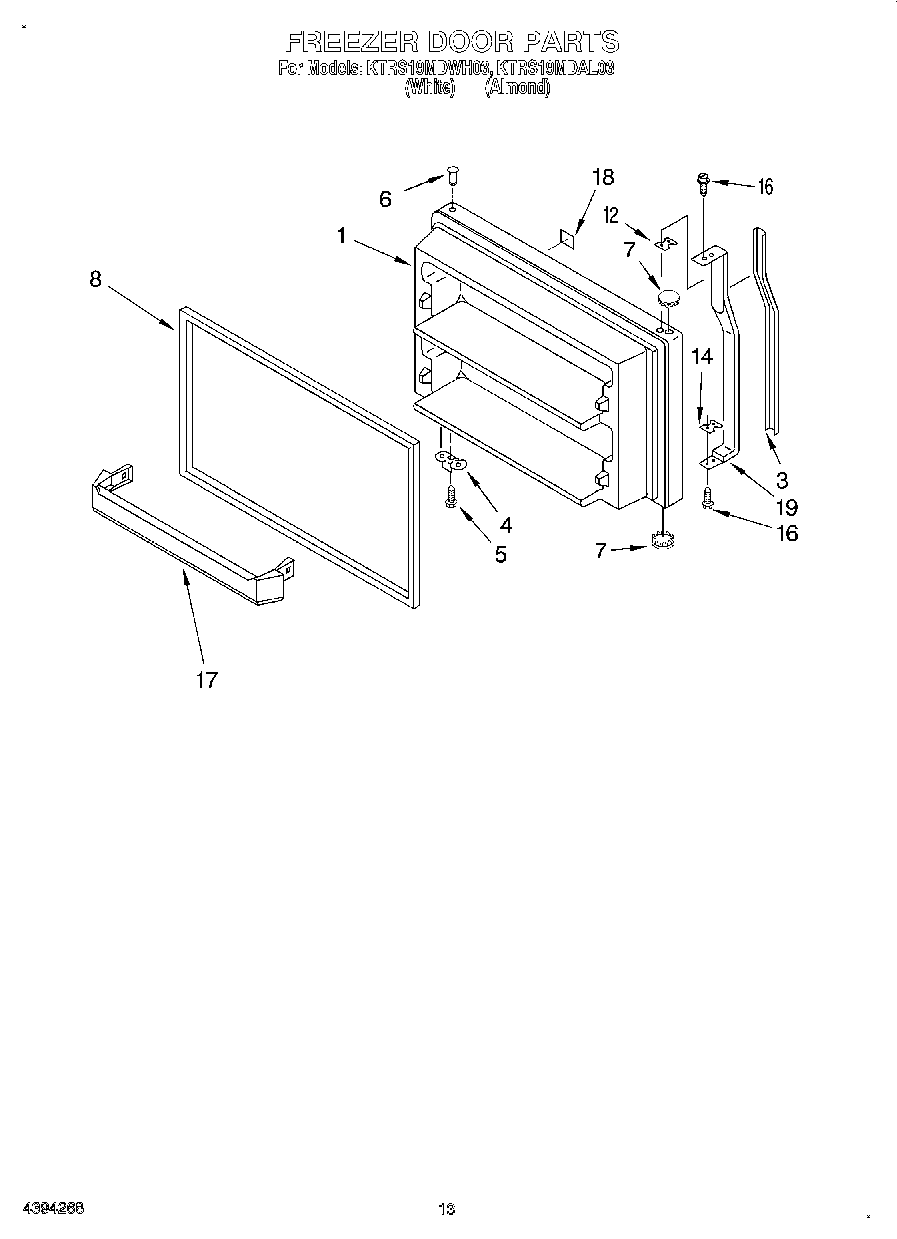

KTRS19MDAL03 07 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2179220
	Modular Icemaker Service Sheet
	WPL LIT2172667
	Torx Key
	WPL LIT2179217
1	Freezer Door (Includes No.8) (Almond)
1	Freezer Door (Includes No.8)
3	Insert, Handle (White)
3	Insert, Handle (Almond)
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	Door Gasket, Magnetic (Service)
12	Spacer, Handle
14	Shim, Bottom
16	WP488920 Whirlpool Refrigerator Screw
17	Trivet, Door
18	Nameplate (White Model)
18	Nameplate (Almond Model)
19	WPL 876029
19	WP72107 Whirlpool Touchup
19	Handle
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	WP505587 Whirlpool Refrigerator Sealer
19	Almond (Uncut)
19	WP503695 Whirlpool Refrigerator Sealer
19	Door Reversal Instructions
19	350956 Whirlpool Spray Assembly
19	350930 Whirlpool White Spray Paint
19	WP542638 Whirlpool Refrigerator Grease
19	833938 Whirlpool Refrigerator Terminal
19	511873 Whirlpool Refrigerator Paint
19	350942 Whirlpool Spray Paint
19	WPL 799833
19	285006 Whirlpool Spray
19	72032 Whirlpool Touch Up Paint Black
19	TAPE, VINYL (3/4 X 108“)
19	WPL 799832
19	212643 Whirlpool Refrigerator Permagum Sealer
19	CEMENT, ALUMILASTIC (1 1/4 OZ.)
19	606755 Whirlpool Refrigerator Bag
19	876370 Whirlpool Refrigerator Insulation
