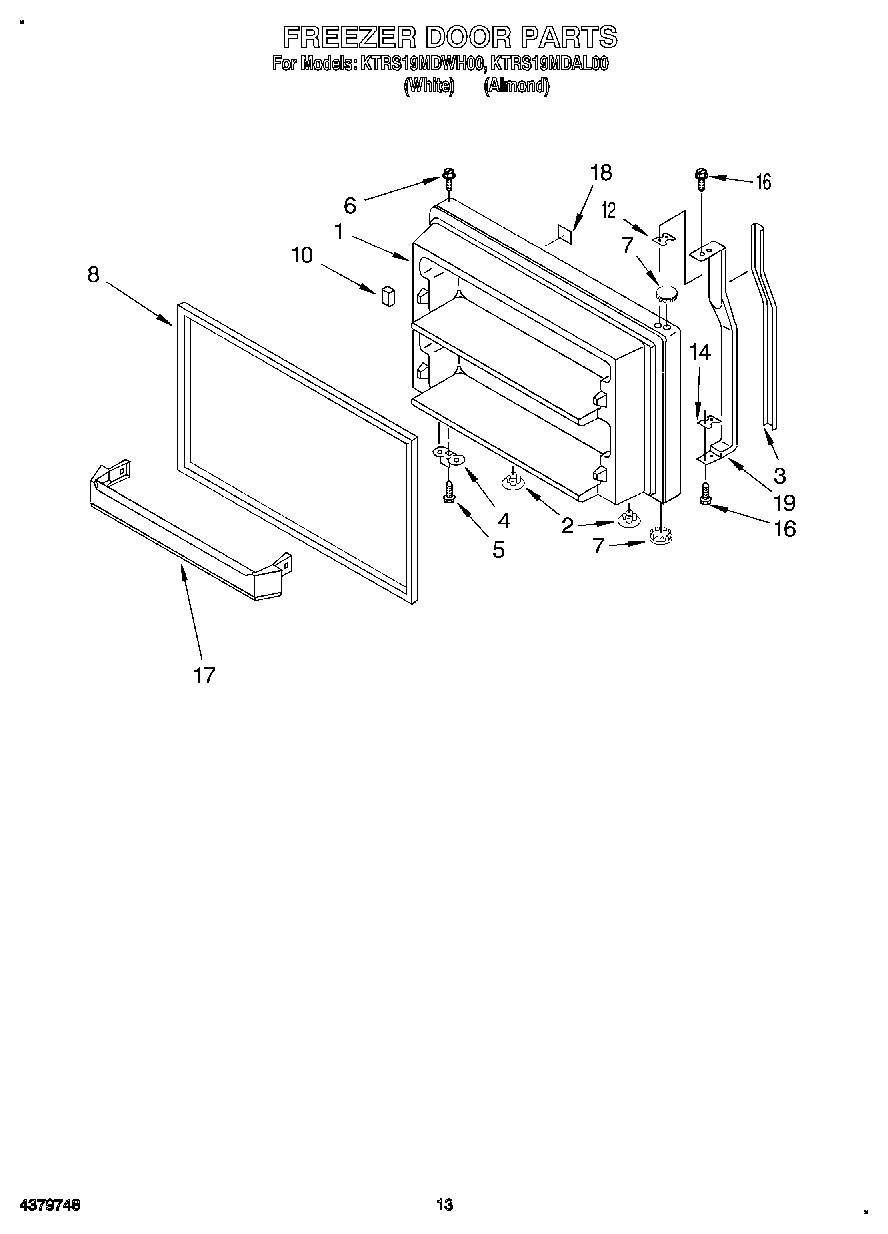

KTRS19MDWH00 07 – FREEZER DOOR, LIT/OPTIONAL

KTRS19MDWH00 07 – FREEZER DOOR, LIT/OPTIONAL

Written by

in

KTRS19MDWH00 07 – FREEZER DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2179220
Torx Key
Modular Icemaker Service Sheet
WPL LIT2172667
WPL LIT2179217
1Freezer Door (Includes No.8) (Almond)
1Freezer Door (Includes No.8)
2Hole Plug (2)
2Hole Plug (2) (Almond)
3Insert, Handle (Almond)
3Insert, Handle (White)
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
8Door Gasket, Magnetic (Service)
10Door Clip, Freezer Light
12Spacer, Handle
14Shim, Bottom
16WP488920 Whirlpool Refrigerator Screw
17Trivet, Door
18Nameplate (White Model)
18Nameplate (Almond Model)
19WPL 799833
19Handle
19Almond (Uncut)
19WP72107 Whirlpool Touchup
19350930 Whirlpool White Spray Paint
19799344 Whirlpool Refrigerator Paint
1972017 Whirlpool Appliance Touch-Up Paint White
19Door Reversal Instructions
19350956 Whirlpool Spray Assembly
19WPL 799832
19WP542638 Whirlpool Refrigerator Grease
19212643 Whirlpool Refrigerator Permagum Sealer
19WPL 876029
19WP505587 Whirlpool Refrigerator Sealer
19WP503695 Whirlpool Refrigerator Sealer
19285006 Whirlpool Spray
1972032 Whirlpool Touch Up Paint Black
19876370 Whirlpool Refrigerator Insulation
19833938 Whirlpool Refrigerator Terminal
19606755 Whirlpool Refrigerator Bag
19CEMENT, ALUMILASTIC (1 1/4 OZ.)
19511873 Whirlpool Refrigerator Paint
19350942 Whirlpool Spray Paint
19TAPE, VINYL (3/4 X 108“)
