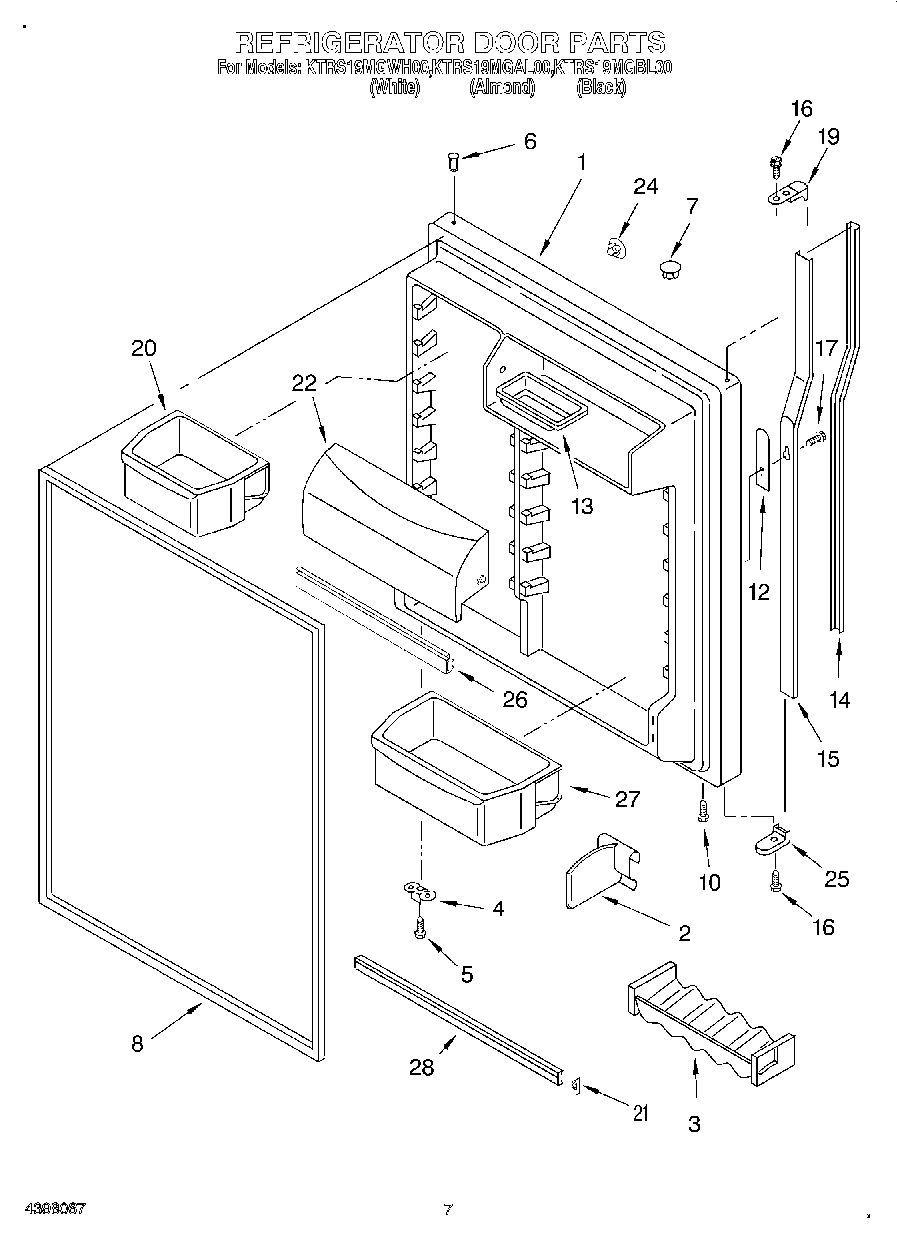

KTRS19MGWH00 04 – REFRIGERATOR DOOR

KTRS19MGWH00 04 – REFRIGERATOR DOOR

Written by

in

KTRS19MGWH00 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Black (Includes No.6 & No.8))
1Refrigerator Door (Includes No.6 & No.8) (Almond)
1Refrigerator Door (Includes No.6 & No.8) (White)
2Divider-Door
3Beverage Holder
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212651 Whirlpool Refrigerator Button Plug
7Hole Plug (Almond)
82177305 Whirlpool Refrigerator Door FIP Gasket
82159057 Whirlpool Refrigerator Fresh Food Door Gasket
10WP8281206 Whirlpool Refrigerator Screw
12Spacer
13Butter Tray
14Insert, Handle (Almond)
14Insert, Handle (Black)
14Insert, Handle (White)
15Retainer, Insert (Black)
15Retainer, Insert (White)
15Retainer, Insert (Almond)
16WP489357 Whirlpool Recessed Screw
17Screw
19Endcap (Almond)
19End Cap (Black)
19Endcap
20Bin, Door Shelf (3)
21WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
22WP2313637 Whirlpool Cutting Grid Assembly
24WP2189000 Whirlpool Refrigerator Handle Plug
24WP2189009 Whirlpool Refrigerator Handle Plug
24Hole Plug (Almond)
25Endcap, Handle (Black)
25Endcap, Handle (White)
25Endcap, Handle (Almond)
26Gasket, Door Compartment
27Bin, Door Shelf
28WPW10421484 Whirlpool Refrigerator Door Trim
100FeaturePak (Includes 2,3,13, 20,21,22,26,27,28) Also See Frz. Dr. & Shelf Parts Pgs.
