KTRS19MGWH00 07 – FREEZER DOOR, LIT/OPTIONAL

KTRS19MGWH00 07 – FREEZER DOOR, LIT/OPTIONAL

Written by

in

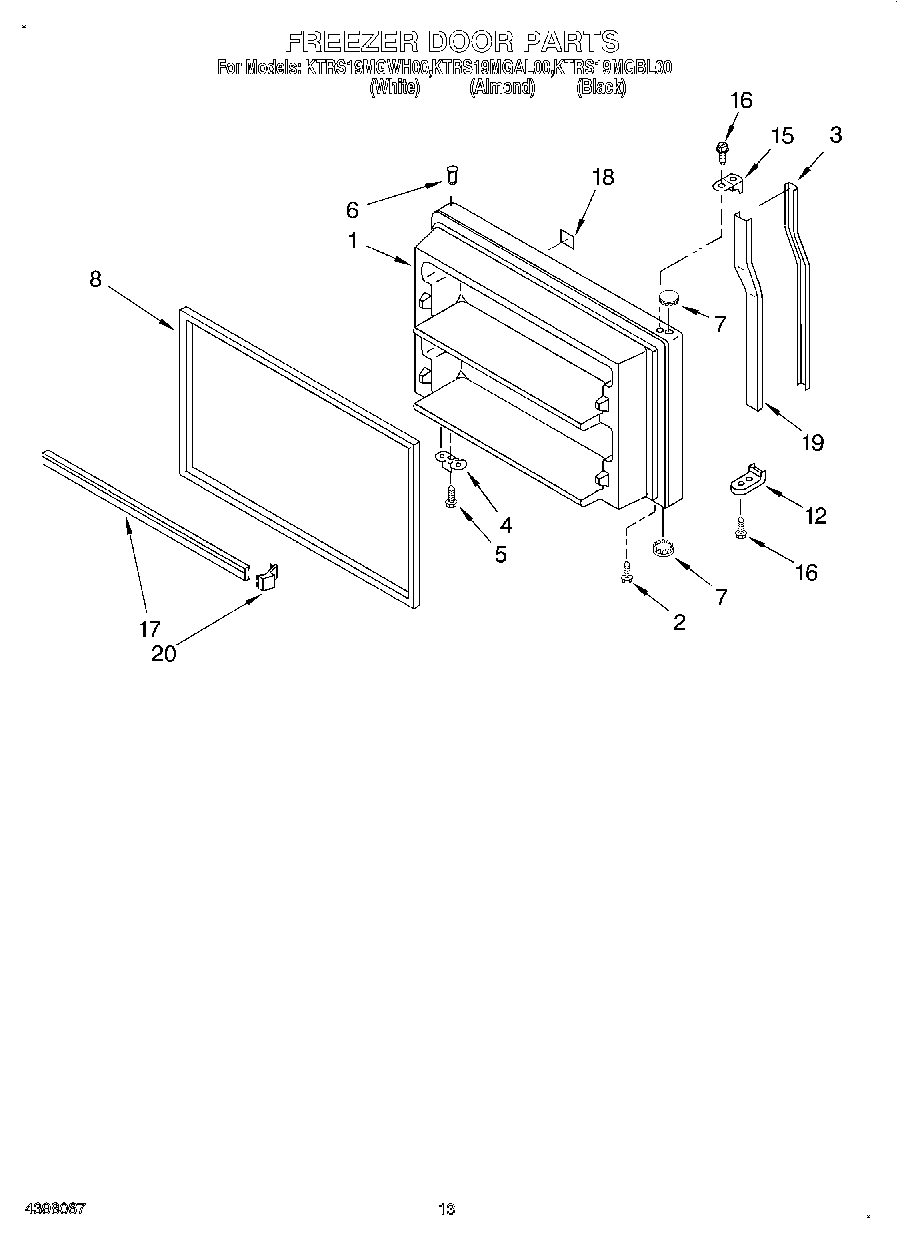

KTRS19MGWH00 07 – FREEZER DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2199010
WPL LIT2195481
Torx Key
WPL LIT2200589
1Freezer Door (Includes No.6 & No.8) (Almond)
1Freezer Door (Includes Illus. 2,6 & 8)
1Freezer Door Panel (Black)
2WP8281206 Whirlpool Refrigerator Screw
3Insert, Handle (Almond)
3Insert, Handle (Black)
3Insert, Handle (White)
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212651 Whirlpool Refrigerator Button Plug
82177304 Whirlpool Refrigerator FIP Gasket
82159327 Whirlpool Refrigerator Door Gasket
12Endcap (Almond)
12Spacer, Handle (Black)
12Endcap
15Endcap, Handle (Almond)
15Endcap, Handle (Black)
15Endcap
16WP489357 Whirlpool Recessed Screw
17Trim-Door (2)
18Nameplate (Almond)
18Nameplate (White)
18Nameplate (Black)
19Insert, Retainer (Black)
19Insert, Retainer (White)
19Insert, Retainer (Almond)
20ENDCAP
100350930 Whirlpool White Spray Paint
100511873 Whirlpool Refrigerator Paint
100212643 Whirlpool Refrigerator Permagum Sealer
100Almond (Uncut)
100350942 Whirlpool Spray Paint
100350956 Whirlpool Spray Assembly
100799344 Whirlpool Refrigerator Paint
10072017 Whirlpool Appliance Touch-Up Paint White
100Door Reversal Instructions
100WP72107 Whirlpool Touchup
100285006 Whirlpool Spray
100606755 Whirlpool Refrigerator Bag
10072032 Whirlpool Touch Up Paint Black
100WPL 876029
100WPL 799833
100WPL 799832
100CEMENT, ALUMILASTIC (1 1/4 OZ.)
100TAPE, VINYL (3/4 X 108“)
100WP542638 Whirlpool Refrigerator Grease
100WP505587 Whirlpool Refrigerator Sealer
100WP503695 Whirlpool Refrigerator Sealer
100876370 Whirlpool Refrigerator Insulation
100833938 Whirlpool Refrigerator Terminal
100FeaturePak (Includes 2,3,13, 20,21,22,26,27,28) Also See Frz. Dr. & Shelf Parts Pgs.
