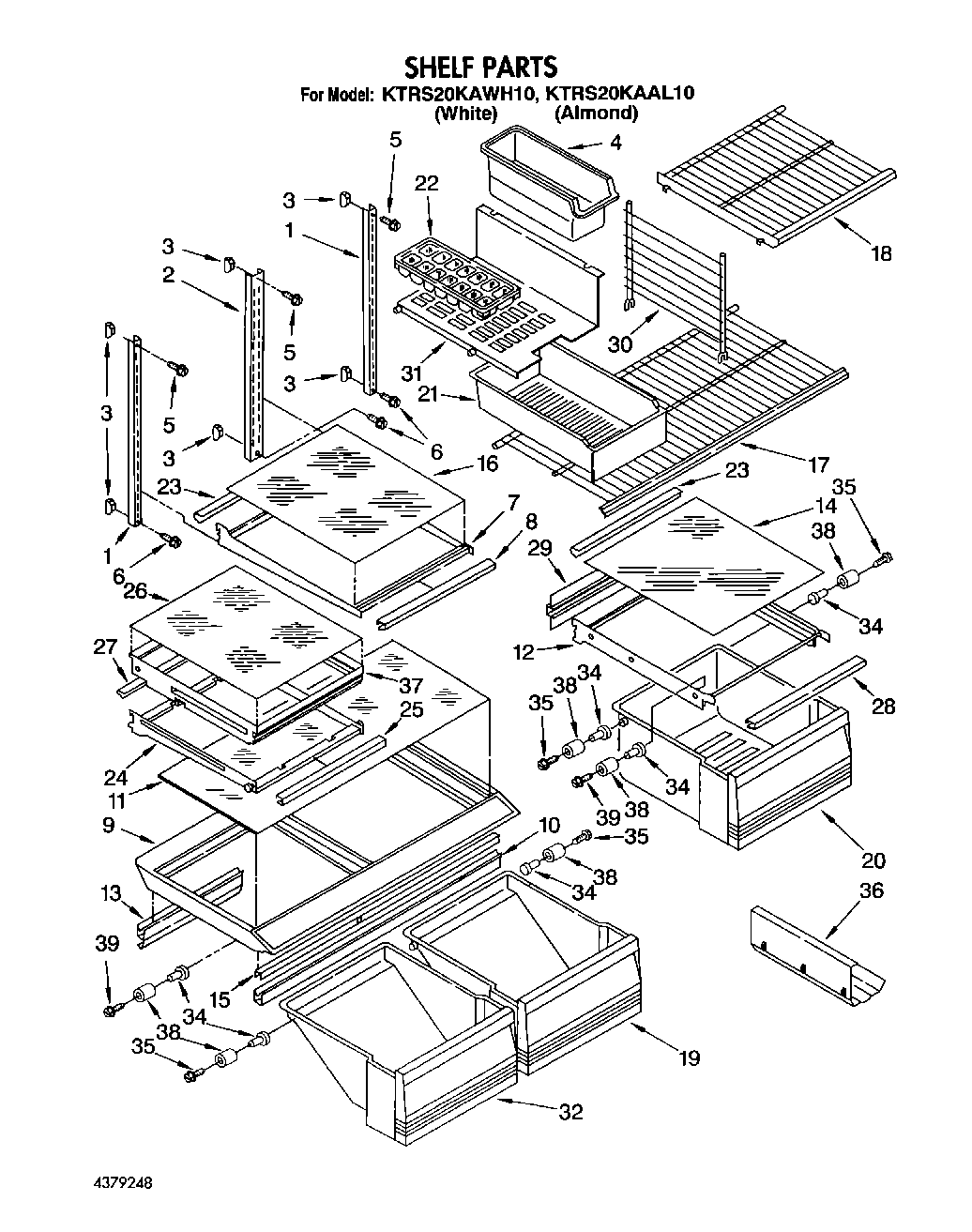

KTRS20KAAL10 04 – SHELF, LIT/OPTIONAL

KTRS20KAAL10 04 – SHELF, LIT/OPTIONAL

Written by

in

KTRS20KAAL10 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL LIT2154861
	WPL LIT2168882
	WPL LIT2161695
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	WP982704 Whirlpool Refrigerator Container
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (2)
8	Gasket (Front)
9	Pan Cover & Roller Assembly
10	WP1125528 Whirlpool Refrigerator Gasket
11	Glass, Crisper Cover
12	Pan Shelf & Roller Assembly
13	Gasket, Pan Cover-Rear
14	Glass, Shelf
15	WP2172748 Whirlpool Drawer Support
16	Glass, Shelf
17	Shelf, Freezer
18	Shelf, Freezer
19	Crisper, Pan Front
20	Meat Pan Assy.
21	PAN-ICE
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Retainer, Glass
24	Frame & Roller Assembly
25	Gasket (Front)
26	Glass Shelf
27	Reflector, Shelf
28	Gasket, Front
29	Gasket, Rear
30	Divider
31	Shelf, Ice Tray
32	Pan, Utility
34	Eyelet, Roller
36	Wine & Egg Rack
37	Frame & Roller Assembly Movable
38	Roller
39	WP489261 Whirlpool Refrigerator Screw
39	350942 Whirlpool Spray Paint
39	212643 Whirlpool Refrigerator Permagum Sealer
39	350930 Whirlpool White Spray Paint
39	Almond (Uncut)
39	Leveler (Thinner)
39	WP72107 Whirlpool Touchup
39	799344 Whirlpool Refrigerator Paint
39	72017 Whirlpool Appliance Touch-Up Paint White
39	350956 Whirlpool Spray Assembly
39	511873 Whirlpool Refrigerator Paint
39	606755 Whirlpool Refrigerator Bag
39	833938 Whirlpool Refrigerator Terminal
39	285006 Whirlpool Spray
39	72032 Whirlpool Touch Up Paint Black
39	WPL 876029
39	WPL 799833
39	CEMENT, ALUMILASTIC (1 1/4 OZ.)
39	TAPE, VINYL (3/4 X 108“)
39	WP542638 Whirlpool Refrigerator Grease
39	WP505587 Whirlpool Refrigerator Sealer
39	WP503695 Whirlpool Refrigerator Sealer
39	876370 Whirlpool Refrigerator Insulation
39	Door Reversal Instructions
