KTRS20KHBL00 02 – LINER

KTRS20KHBL00 02 – LINER

Written by

in

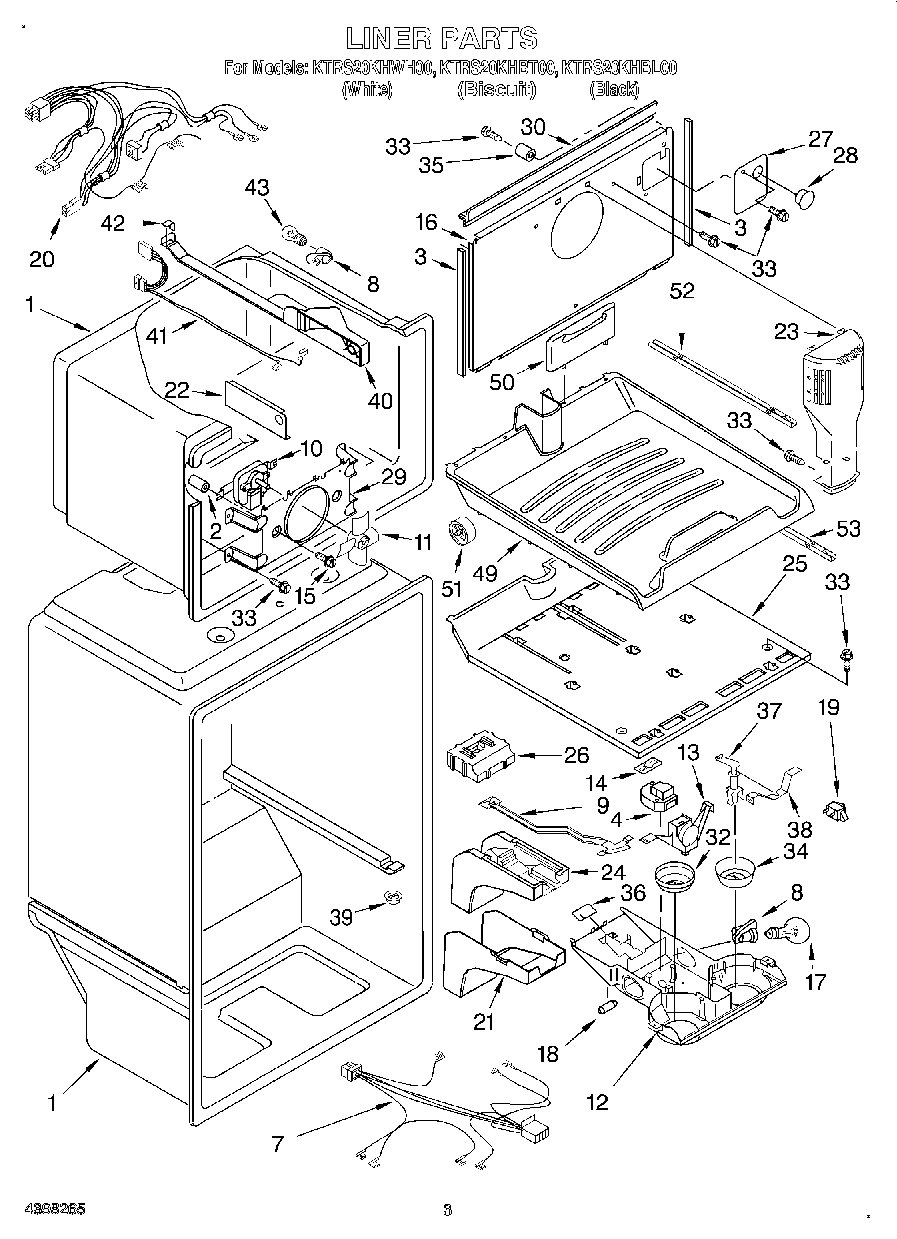

KTRS20KHBL00 02 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4Timer, Defrost
7Wire Assy. Control Box
84387478 Whirlpool Refrigerator Light Socket
9Damper, Air
10Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assy. (Includes Illus. 5 & 18)
14Clip, Defrost Timer
15Screw
16Cover-Evaporator
17RANGE ONLY 40W 120V APPL BULB
18Weight, Thermal
19W11384469 Whirlpool Door Switch
20Wire Assembly, Freezer Compartment
21Cover, Air Diffuser
22Electrical Shield, Freezer Light
23Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
25Freezer Floor
26AIR SEPARATOR ASSEMBLY
27WP2217784 Whirlpool Refrigerator Cover
28WP941839 Whirlpool Refrigerator Button Plug
29Bracket, Fan Motor
32W10829461 Whirlpool Refrigerator Thermal Knob
33WP489478 Whirlpool Refrigerator Screw
34Knob, Damper
35WP487996 Whirlpool Refrigerator Cap Tube
36WP2205079 Whirlpool Refrigerator Seal
37Post, Damper
38Bracket, Damper Knob
39WP2210509 Whirlpool Refrigerator Tub Valve
40Housing Base
41Wiring Harness, Freezer Light
42Gasket, Rear
434396822 Whirlpool Refrigerator Light Bulb
49Pullout, Freezer Floor
50REAR FENCE PULL-OUT FREEZER FLOOR
51Roller, Slide
52Side Support, Floor Assembly
53Center Support, Floor Assembly
