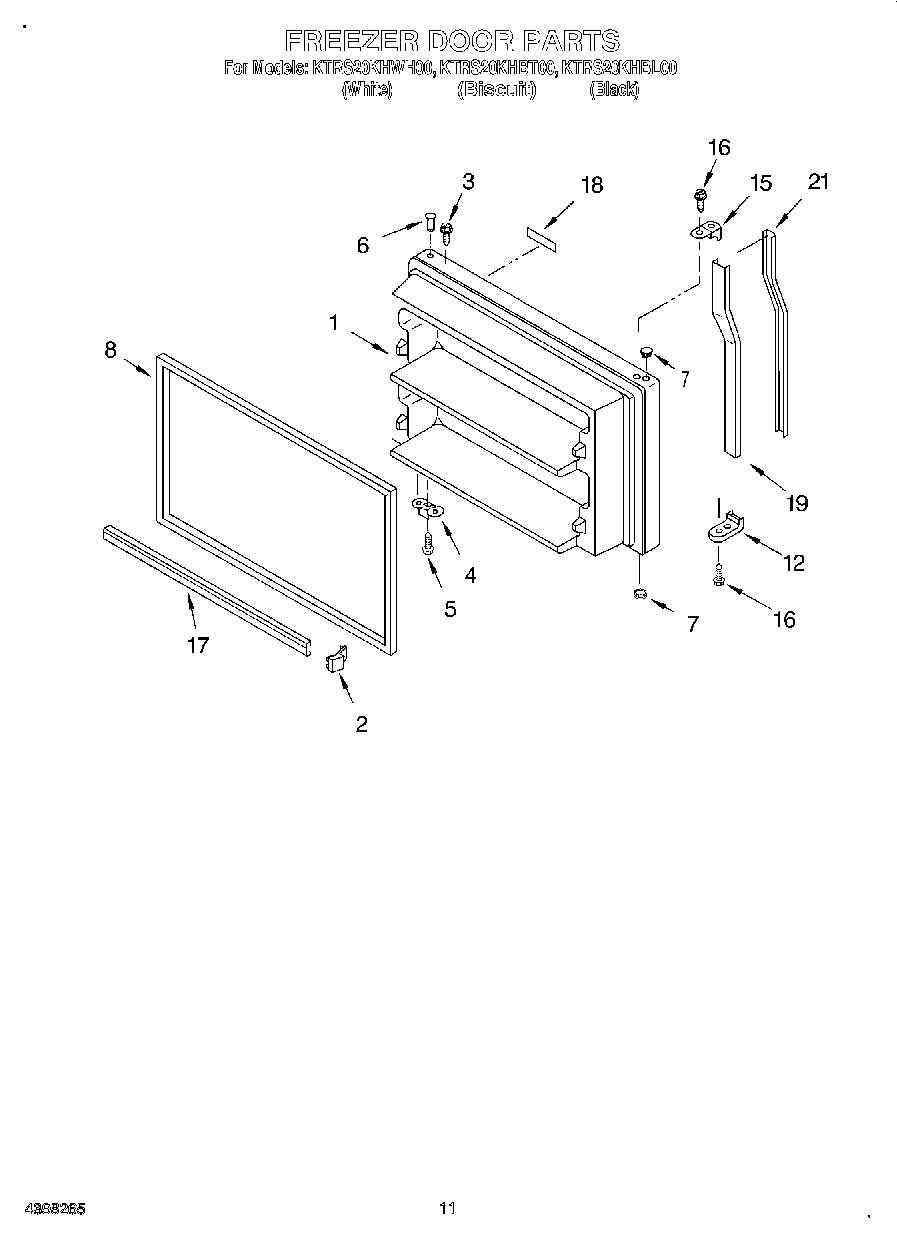

KTRS20KHBT00 06 – FREEZER DOOR, OPTIONAL

KTRS20KHBT00 06 – FREEZER DOOR, OPTIONAL

Written by

in

KTRS20KHBT00 06 – FREEZER DOOR, OPTIONAL

Products

Position	Product
1	W11023688 Whirlpool Refrigerator Door Assembly
1	W11023687 Whirlpool Refrigerator Door Assembly
1	W11023679 Whirlpool Refrigerator Door Assembly
2	ENDCAP
3	WP8281206 Whirlpool Refrigerator Screw
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	WP2212649 Whirlpool Refrigerator Button Plug
8	2177310 Whirlpool Refrigerator Door Gasket
8	WHITE DOOR GASKET-FIP
12	End Cap (Black)
12	Endcap (Biscuit)
12	Endcap
15	Endcap
15	Endcap, Handle (Black)
15	Endcap (Biscuit)
16	WP489357 Whirlpool Recessed Screw
17	Trim, Door Shelf (2)
18	Nameplate (White)
18	Nameplate (Black)
18	Nameplate (Biscuit)
19	Insert, Retainer (Black)
19	Insert, Retainer (White)
19	Insert, Handle (Biscuit)
21	Insert, Handle (Biscuit)
21	Insert, Handle (White)
21	Insert, Handle (Black)
22	72032 Whirlpool Touch Up Paint Black
22	4392901 Whirlpool Biscuit Spray Paint
22	FeaturePak (Includes 17, 20) Also See Ref.Dr. & Shelf Pgs.
22	285006 Whirlpool Spray
22	WPL 876029
22	833938 Whirlpool Refrigerator Terminal
22	606755 Whirlpool Refrigerator Bag
22	511873 Whirlpool Refrigerator Paint
22	4392899 Whirlpool Biscuit Touch-Up Paint
22	350942 Whirlpool Spray Paint
22	212643 Whirlpool Refrigerator Permagum Sealer
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	876370 Whirlpool Refrigerator Insulation
22	WP503695 Whirlpool Refrigerator Sealer
22	WP505587 Whirlpool Refrigerator Sealer
22	WPL 799833
22	WPL 799832
22	Enamel, Black (1 Qt. Uncut)
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
22	TAPE, VINYL (3/4 X 108“)
22	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
22	Torx Key
22	WP542638 Whirlpool Refrigerator Grease
22	350930 Whirlpool White Spray Paint
