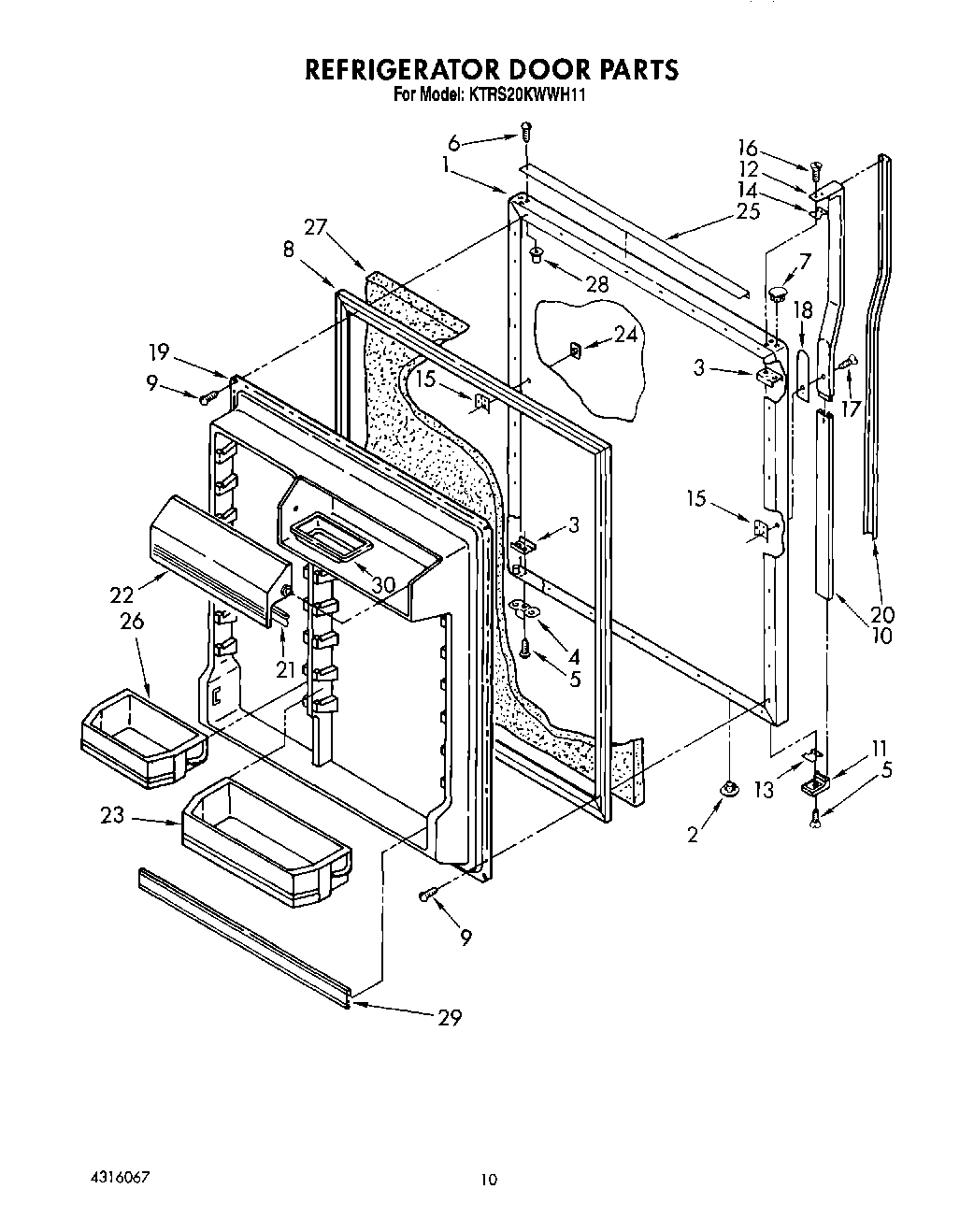

KTRS20KWAL11 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Almond)
1	Panel, Refrigerator Door (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	Screw (Repair)
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Retainer, Insert
11	Handle End
12	Handle
13	Shim, End Cap
14	Spacer
15	WP939101 Whirlpool Refrigerator Plate
16	Screw (Repair)
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Spacer, Handle
19	Interior Door Panel
20	Insert, Handle (Almond)
20	Insert, Handle (White)
21	Gasket, Utility Door
22	Compartment Door,
23	Bin, Door Shelf Deep. Wide
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug, Handle (Almond)
25	Trim, Door
26	Bin, Door Shelf Narrow
27	WPL 876029
28	Cap, Hinge Sleeve (2)
29	Trim, Door Shelf
30	WPL 819344
30	WPL 4318432
30	WPL 4318431
30	WPL 4318430
30	Trimless Glass Kit (Almond (R.H.))
30	Trimless Glass Kit (White (R.H.))
30	Trimless Glass Kit (Woodgrain)
30	Trimless Glass Kit (Black)
30	Trimless Glass Kit (Almond Handle Insert)
30	Trimless Glass Kit (White)
30	Butter, Tray
30	Trimless Glass Kit (Trim Kit Panel For Trim Kit)
30	Handle Insert (Black Grill Kit)
30	Trimless Glass Kit (Black (R.H.))
