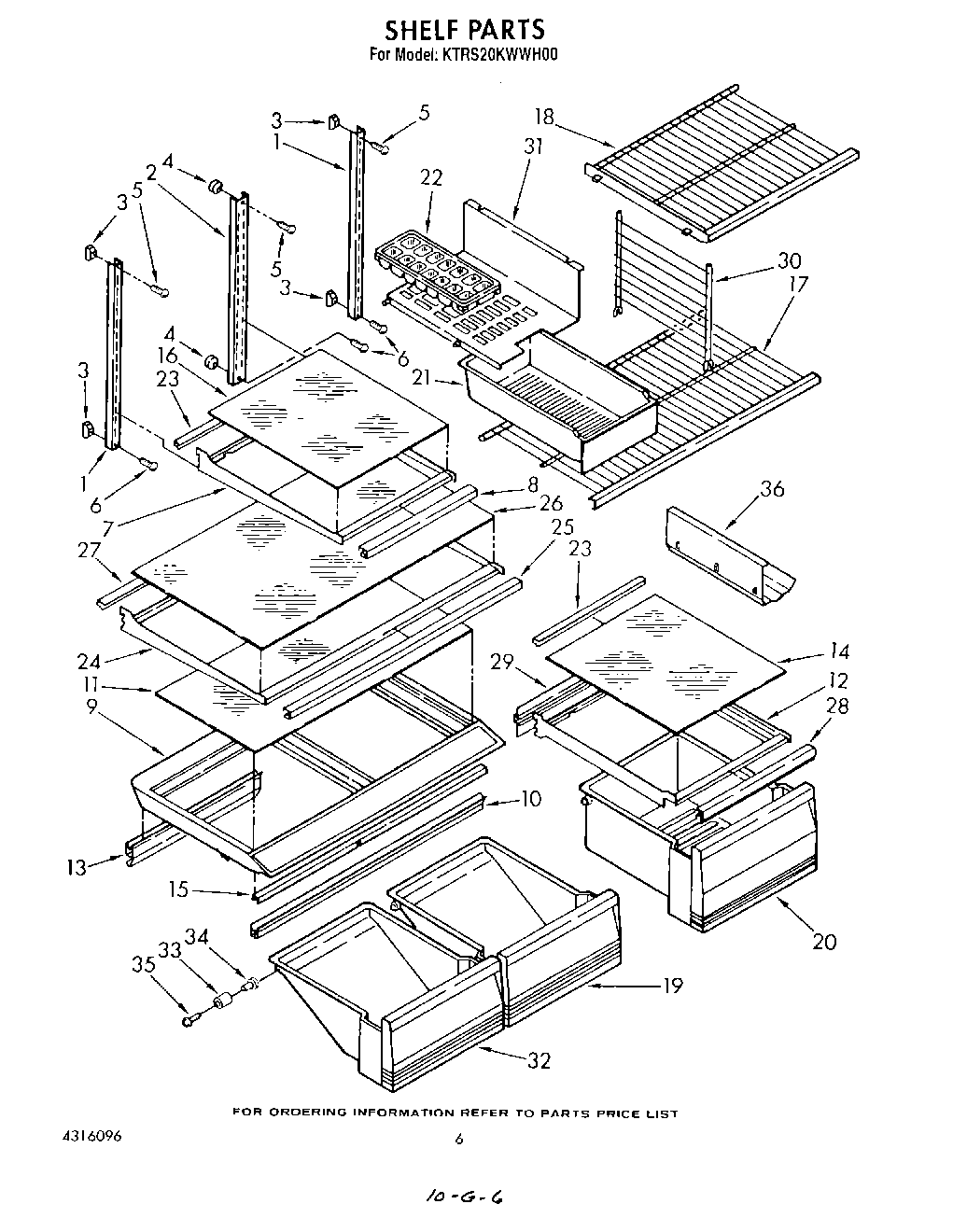

KTRS20KWWH00 05 – SHELF , LIT/OPTIONAL

KTRS20KWWH00 05 – SHELF , LIT/OPTIONAL

Written by

in

KTRS20KWWH00 05 – SHELF , LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	350942 Whirlpool Spray Paint
	Torx Key
	WPL LIT1125573
	Leveler (Thinner)
	350956 Whirlpool Spray Assembly
	WPL LIT1125570
	WPL LIT4316096
	WPL LIT1125644
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Screw Support, Center Ladder (2)
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (2)
8	Gasket (Front)
9	Pan Cover Assembly
10	WP1125528 Whirlpool Refrigerator Gasket
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
13	Gasket, Pan Cover-Rear
14	Glass, Shelf
15	WP2172748 Whirlpool Drawer Support
16	Glass, Shelf
17	Shelf, Freezer
18	Shelf, Freezer
19	Pan, Crisper
20	Pan, Crisper
21	PAN-ICE
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Retainer, Glass
24	Shelf, Full Cantilever
25	Gasket, Front Cantilever
26	Glass, Full Shelf
27	Retainer, Shelf
28	Gasket, Front
29	Gasket, Rear
30	Divider
31	Shelf, Ice Tray
32	Utility Pan
33	Roller
34	Eyelet, Roller
35	WP489261 Whirlpool Refrigerator Screw
36	799344 Whirlpool Refrigerator Paint
36	72017 Whirlpool Appliance Touch-Up Paint White
36	WP505587 Whirlpool Refrigerator Sealer
36	WP542638 Whirlpool Refrigerator Grease
36	TAPE, VINYL (3/4 X 108“)
36	CEMENT, ALUMILASTIC (1 1/4 OZ.)
36	WPL 799833
36	WPL 876029
36	WP503695 Whirlpool Refrigerator Sealer
36	606755 Whirlpool Refrigerator Bag
36	833938 Whirlpool Refrigerator Terminal
36	511873 Whirlpool Refrigerator Paint
36	Almond (Uncut)
36	876370 Whirlpool Refrigerator Insulation
36	212643 Whirlpool Refrigerator Permagum Sealer
36	WP72107 Whirlpool Touchup
36	72032 Whirlpool Touch Up Paint Black
36	Wine & Egg Rack
