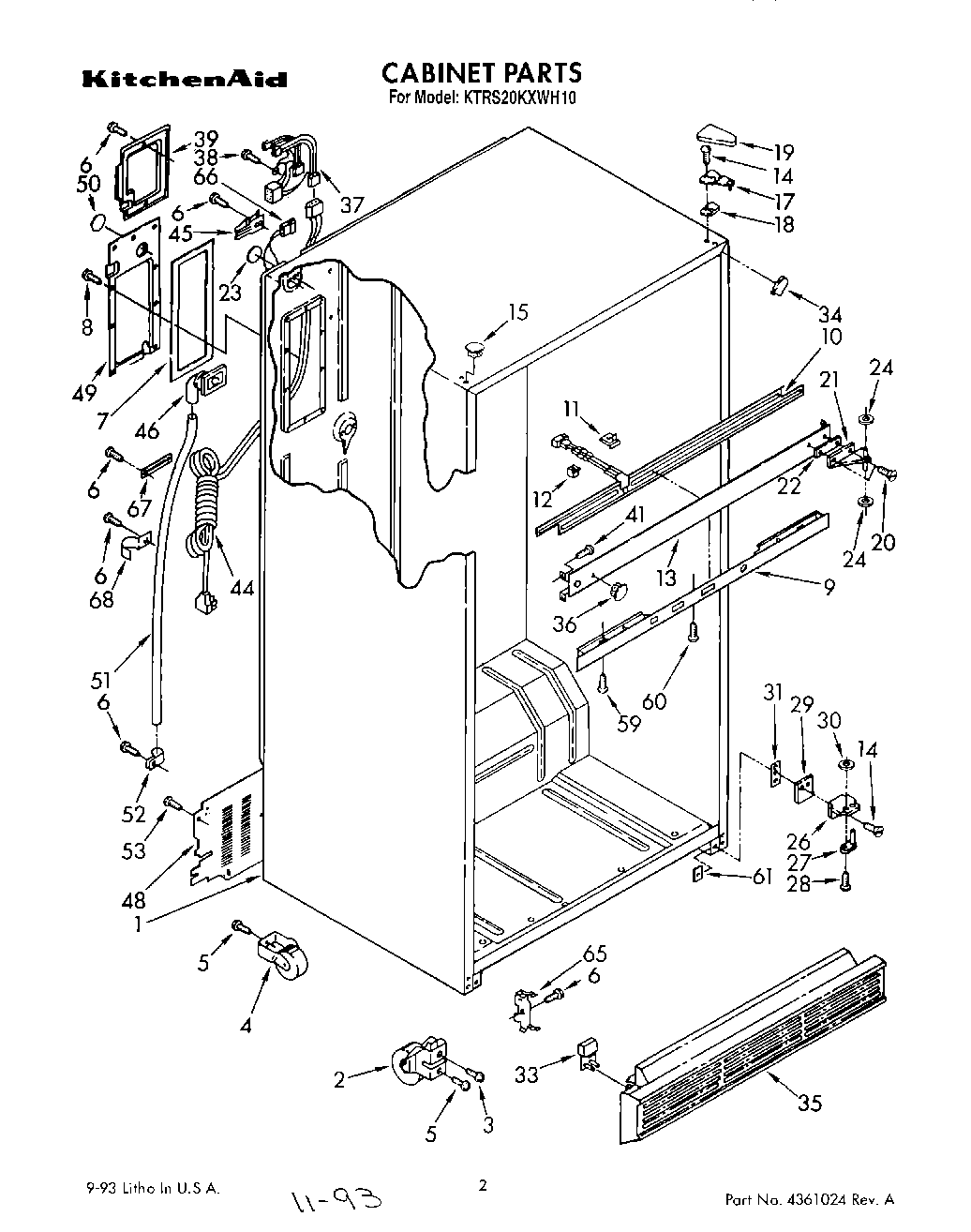

KTRS20KXWH10 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Front Roller (2)
3Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
7WPL 1114548
8WP489464 Whirlpool Refrigerator Screw
9Control, Front Cover
10Heater, Mullion
11Clip, Center Rail (4)
12Spacer (3)
13Center Rail (Almond)
13Center Rail (White)
14WP489349 Whirlpool Refrigerator Screw
15Hole Plug (6) (Almond)
15WP2151652 Whirlpool Refrigerator Button Plug
17Hinge, Top
18Shim, Hinge
191119787 Whirlpool Refrigerator Hinge Cover
20Screw
21Hinge, Center
22Shim, Hinge Center
23Hole Seal
24WP488296 Whirlpool Washer Refrigerator
26Hinge Butt, Bottom
27Hinge Pin, Bottom
28Screw 10-32 x 5/16
29Shim, Bottom
30WP487802 Whirlpool Refrigerator Washer
31Spacer
33Corner Filler, Grille (Almond)
33Corner Filler, Grille (White)
34Filler, Wrapper Corner (2) (Almond)
34Filler, Wrapper Corner (2) (White)
35Grille (White)
35Grille (Almond)
36Hole Plug (4) (White)
36Hole Plug (4) (Almond)
37Cabinet, Wiring Assembly
38WP250830 Whirlpool Refrigerator Screw
39Cover, Wiring
41WP489478 Whirlpool Refrigerator Screw
44Cord, Service
45Clamp
46Fitting, Drain
48Cover, Unit
49Cover, Plug
50WPL 1120224
518316810 Whirlpool Refrigerator Drain Tube
52WPL 836077
59WP488163 Whirlpool Refrigerator Screw
60WP489174 Whirlpool Refrigerator Screw
61Tap Plate (2)
65WP2155013 Whirlpool Refrigerator Clip
66WP717253 Whirlpool Dishwasher Connector
67Tube Clamp (2)
68WPL 1110564
