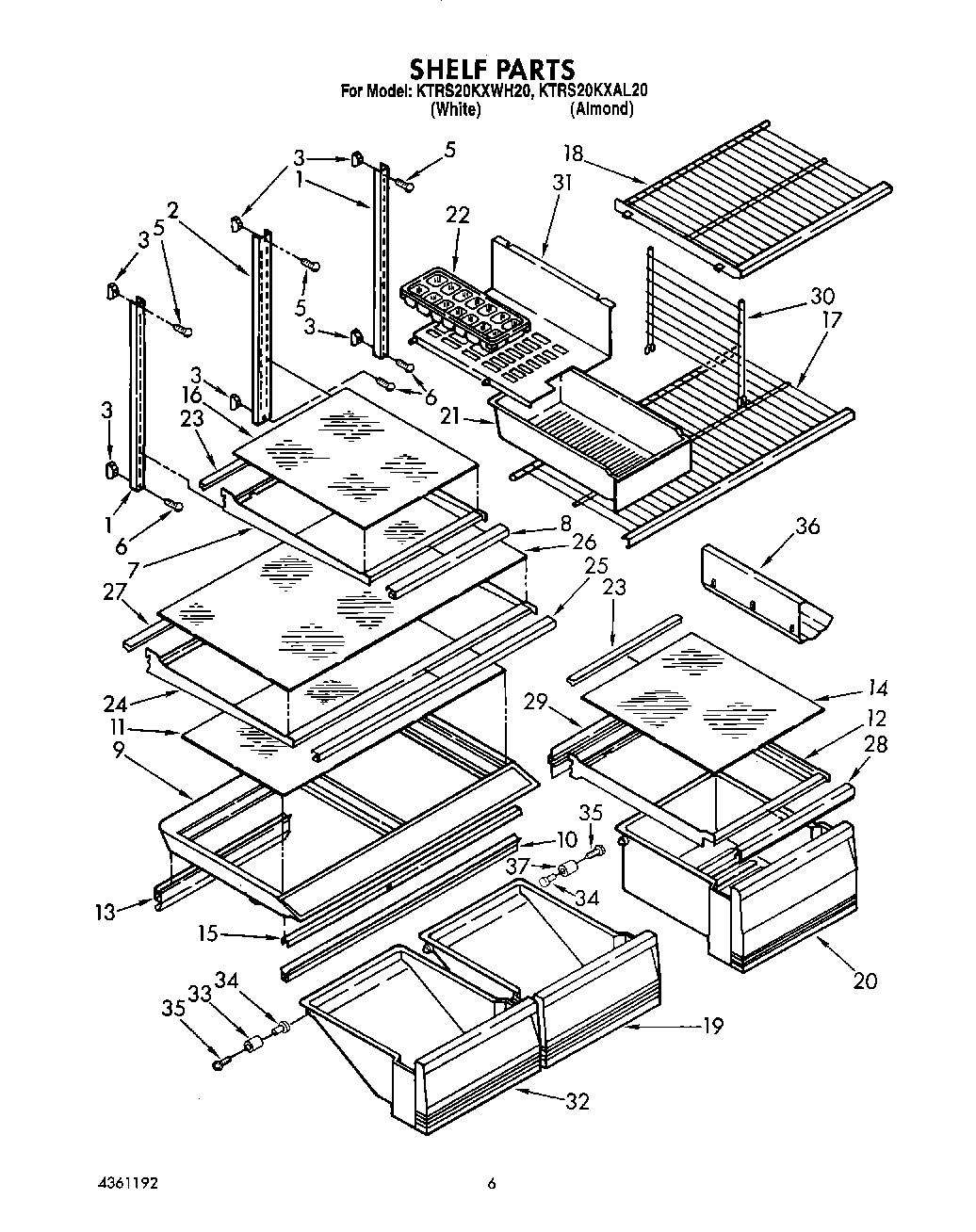

KTRS20KXWH20 05 – SHELF, LIT/OPTIONAL

KTRS20KXWH20 05 – SHELF, LIT/OPTIONAL

Written by

in

KTRS20KXWH20 05 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT1125570
	Torx Key
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT2154168
	WPL LIT1126471
	WPL LIT4361192
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (2)
8	Gasket (Front)
9	Pan Cover Assembly
10	WP1125528 Whirlpool Refrigerator Gasket
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
13	Gasket, Pan Cover-Rear
14	Glass, Shelf
15	WP2172748 Whirlpool Drawer Support
16	Glass, Shelf
17	Shelf, Freezer
18	Shelf, Freezer
19	Pan, Meat
20	Pan, Crisper
21	PAN-ICE
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Retainer, Glass
24	Shelf, Full Cantilever
25	Gasket, Front Cantilever
26	Glass, Full Shelf
27	Retainer, Shelf
28	Gasket, Front
29	Gasket, Rear
30	Divider
31	Shelf, Ice Tray
32	Utility Pan
33	Roller, R.S.
34	Eyelet, Roller
35	WP489261 Whirlpool Refrigerator Screw
36	Wine & Egg Rack
37	606755 Whirlpool Refrigerator Bag
37	511873 Whirlpool Refrigerator Paint
37	350930 Whirlpool White Spray Paint
37	350942 Whirlpool Spray Paint
37	212643 Whirlpool Refrigerator Permagum Sealer
37	Almond (Uncut)
37	Leveler (Thinner)
37	WP72107 Whirlpool Touchup
37	799344 Whirlpool Refrigerator Paint
37	72017 Whirlpool Appliance Touch-Up Paint White
37	833938 Whirlpool Refrigerator Terminal
37	876370 Whirlpool Refrigerator Insulation
37	285006 Whirlpool Spray
37	72032 Whirlpool Touch Up Paint Black
37	WPL 876029
37	Roller
37	WPL 799833
37	CEMENT, ALUMILASTIC (1 1/4 OZ.)
37	TAPE, VINYL (3/4 X 108“)
37	WP542638 Whirlpool Refrigerator Grease
37	WP505587 Whirlpool Refrigerator Sealer
37	WP503695 Whirlpool Refrigerator Sealer
37	350956 Whirlpool Spray Assembly
