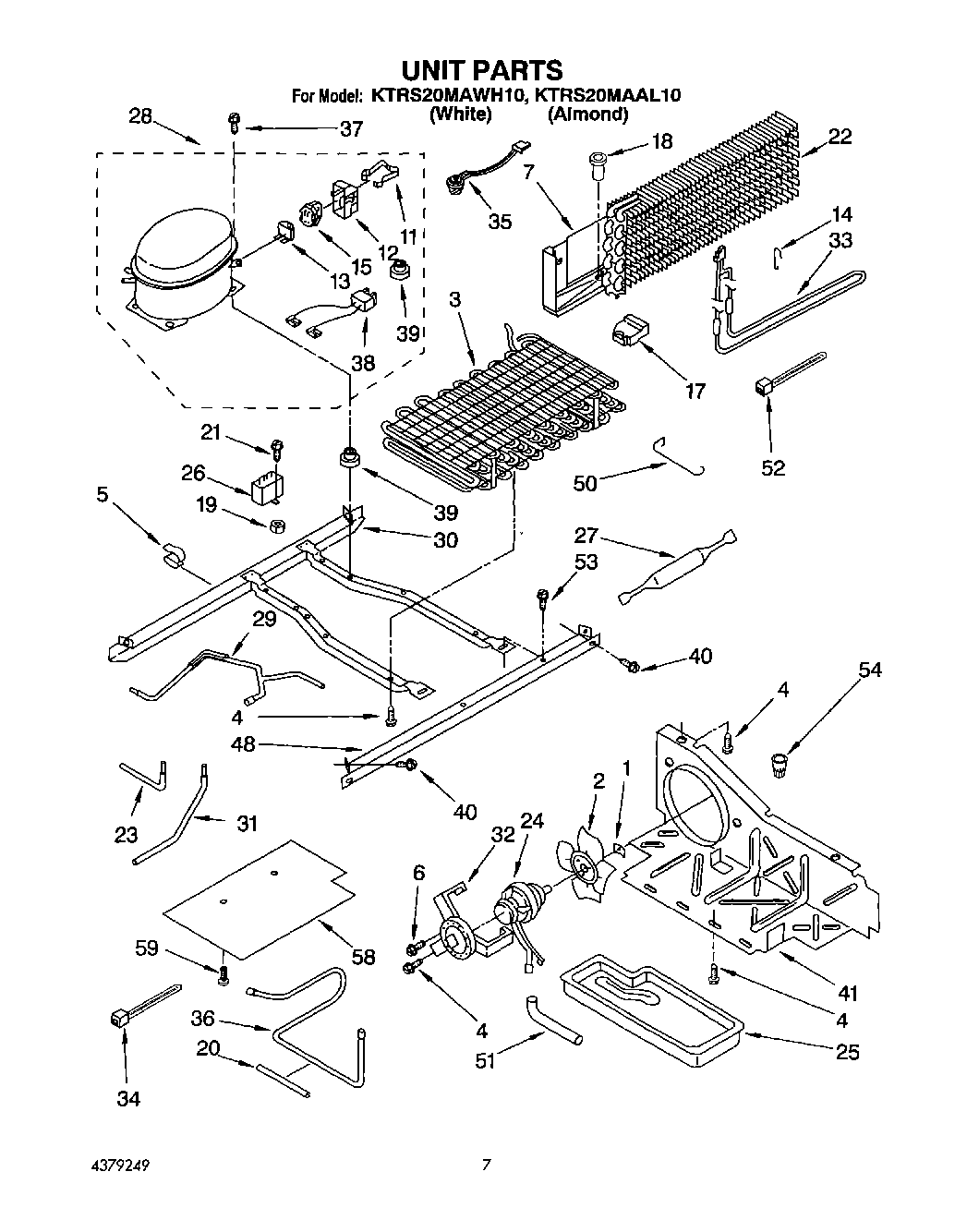

KTRS20MAAL10 05 – UNIT

Written by

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan/ Heat Shield
11	Strap
12	Cover
13	OVERLOAD
14	Support, Heater
15	Relay (See Overload)
17	Support (R.S.)
17	Support-Evaporator (L.S.)
18	Drain Fitting
19	Screw Grommet
20	SLEEVE
21	W11693756 Whirlpool Screw Assembly
22	Evaporator
23	2154109 Whirlpool Refrigerator Tube
24	833697 Whirlpool Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Running Capacitor (Service)
27	W10843121 Whirlpool Refrigerator Tube
28	W10439652 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	Tube, Discharge
30	Unit Mounting Frame
31	Tube, Condenser To Heat Loop
32	Fan, Motor Bracket
33	Heater, Defrost
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
36	Tube, Suction
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air, Baffle
48	Unit Mounting Rail
50	1105612 Whirlpool Fan Guard
51	Drain Extension
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
58	Cover-Unit Btm.
59	489396 Whirlpool Refrigerator Clip
59	876764 Whirlpool Refrigerator Primary Valve
59	VALVE, ACCESS (1/2“)
59	WP978025 Whirlpool Refrigerator Valve
59	VALVE, ACCESS (5/8“)
59	978030 Whirlpool Refrigerator Valve
59	978027 Whirlpool Refrigerator Primary Valve
59	978026 Whirlpool Refrigerator Primary Valve
