KTRS20MAWH10 04 – SHELF, LIT/OPTIONAL

KTRS20MAWH10 04 – SHELF, LIT/OPTIONAL

Written by

in

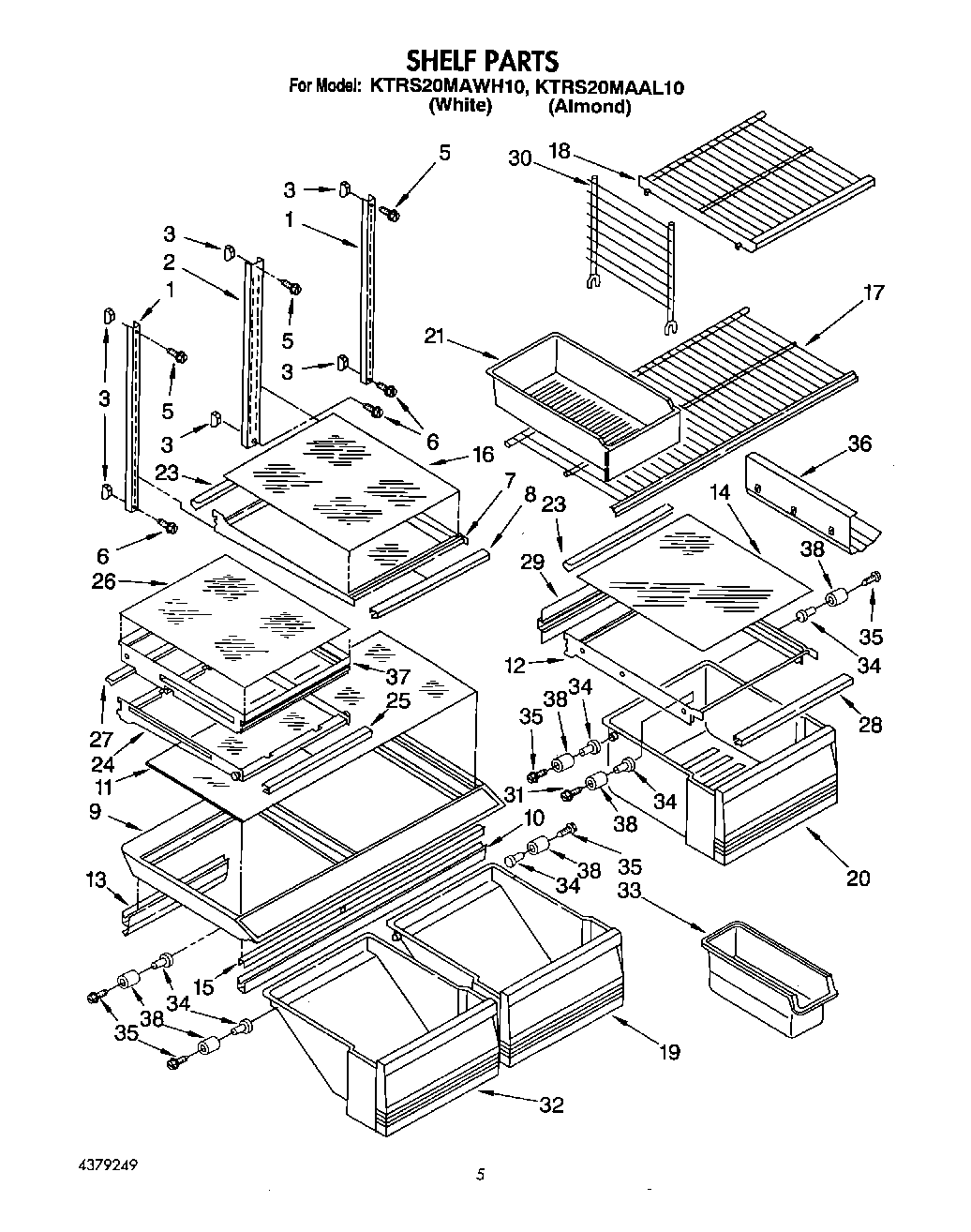

KTRS20MAWH10 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2161695
	WPL LIT2168882
	Modular Icemaker Service Sheet
	WPL LIT2154861
	Torx Key
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (2)
8	Gasket (Front)
9	Pan Cover & Roller Assembly
10	WP1125528 Whirlpool Refrigerator Gasket
11	Glass, Crisper Cover
12	Pan Shelf & Roller Assembly
13	Gasket, Pan Cover-Rear
14	Glass, Shelf
15	WP2172748 Whirlpool Drawer Support
16	Glass, Shelf
17	Shelf, Freezer
18	Shelf, Freezer
19	Crisper, Pan Front
20	Meat Pan Assy.
21	PAN-ICE
23	Retainer, Glass
24	Frame & Roller Assembly
25	Gasket (Front)
26	Glass Shelf
27	Reflector, Shelf
28	Gasket, Front
29	Gasket, Rear
30	Divider
31	WP489261 Whirlpool Refrigerator Screw
32	Pan, Utility
33	WP982704 Whirlpool Refrigerator Container
34	Eyelet, Roller
36	Wine & Egg Rack
37	Frame & Roller Assembly Movable
38	72017 Whirlpool Appliance Touch-Up Paint White
38	350942 Whirlpool Spray Paint
38	Almond (Uncut)
38	Door Reversal Instructions
38	212643 Whirlpool Refrigerator Permagum Sealer
38	Leveler (Thinner)
38	350956 Whirlpool Spray Assembly
38	WP72107 Whirlpool Touchup
38	799344 Whirlpool Refrigerator Paint
38	511873 Whirlpool Refrigerator Paint
38	606755 Whirlpool Refrigerator Bag
38	285006 Whirlpool Spray
38	WPL 876029
38	WPL 799833
38	72032 Whirlpool Touch Up Paint Black
38	Roller
38	CEMENT, ALUMILASTIC (1 1/4 OZ.)
38	TAPE, VINYL (3/4 X 108“)
38	WP542638 Whirlpool Refrigerator Grease
38	WP505587 Whirlpool Refrigerator Sealer
38	WP503695 Whirlpool Refrigerator Sealer
38	876370 Whirlpool Refrigerator Insulation
38	833938 Whirlpool Refrigerator Terminal
38	350930 Whirlpool White Spray Paint
