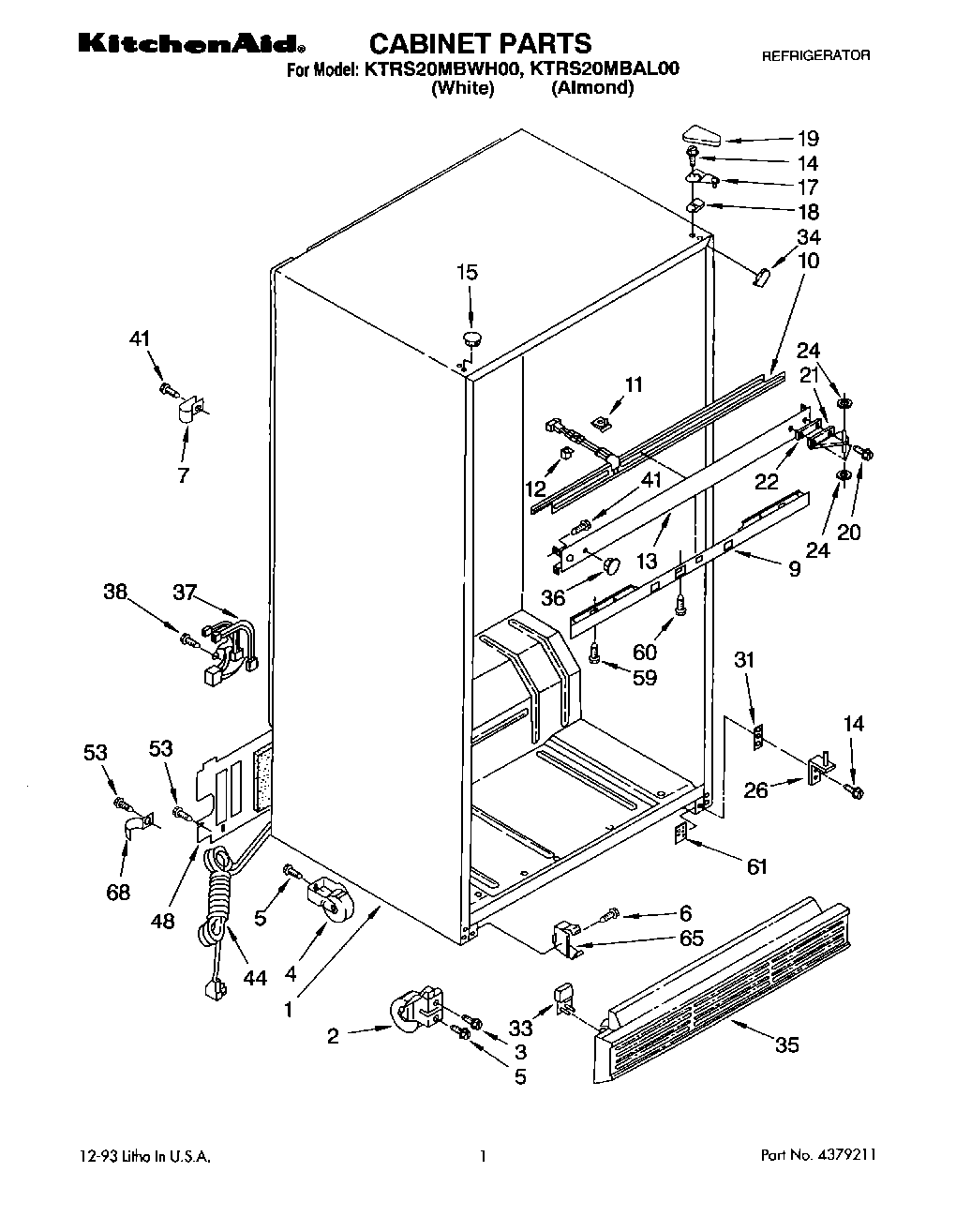

KTRS20MBWH00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw, 5/16-24 x 1-1/4
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
7	WP488366 Whirlpool Refrigerator Clamp
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Center Rail (4)
12	Spacer (3)
13	Center Rail
15	Hole Plug (6) (Almond)
15	WP2151652 Whirlpool Refrigerator Button Plug
17	WP2189412 Whirlpool Refrigerator Door Hinge
18	Shim, Hinge Top
19	WP2213360 Whirlpool Refrigerator Cover
19	Cover, Hinge (Almond)
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
24	WP487802 Whirlpool Refrigerator Washer
26	WP2254473 Whirlpool Refrigerator Door Hinge
31	Spacer
33	Corner Filler, Grille (White)
33	Corner Filler, Grille (Almond)
34	Filler, Wrapper Corner (2) (Almond)
34	Filler, Wrapper Corner (2) (White)
35	Grille (White)
35	Grille (Almond)
36	Hole Plug (4) (White)
37	Wiring Assembly, Intermediate
38	WP250830 Whirlpool Refrigerator Screw
41	WP489478 Whirlpool Refrigerator Screw
44	Cord, Service
48	Cover, Unit
59	WP488163 Whirlpool Refrigerator Screw
60	WP489174 Whirlpool Refrigerator Screw
61	Tap-Plate, Bottom Hinge
65	WP2155013 Whirlpool Refrigerator Clip
68	549193 Whirlpool Refrigerator Power Clamp
