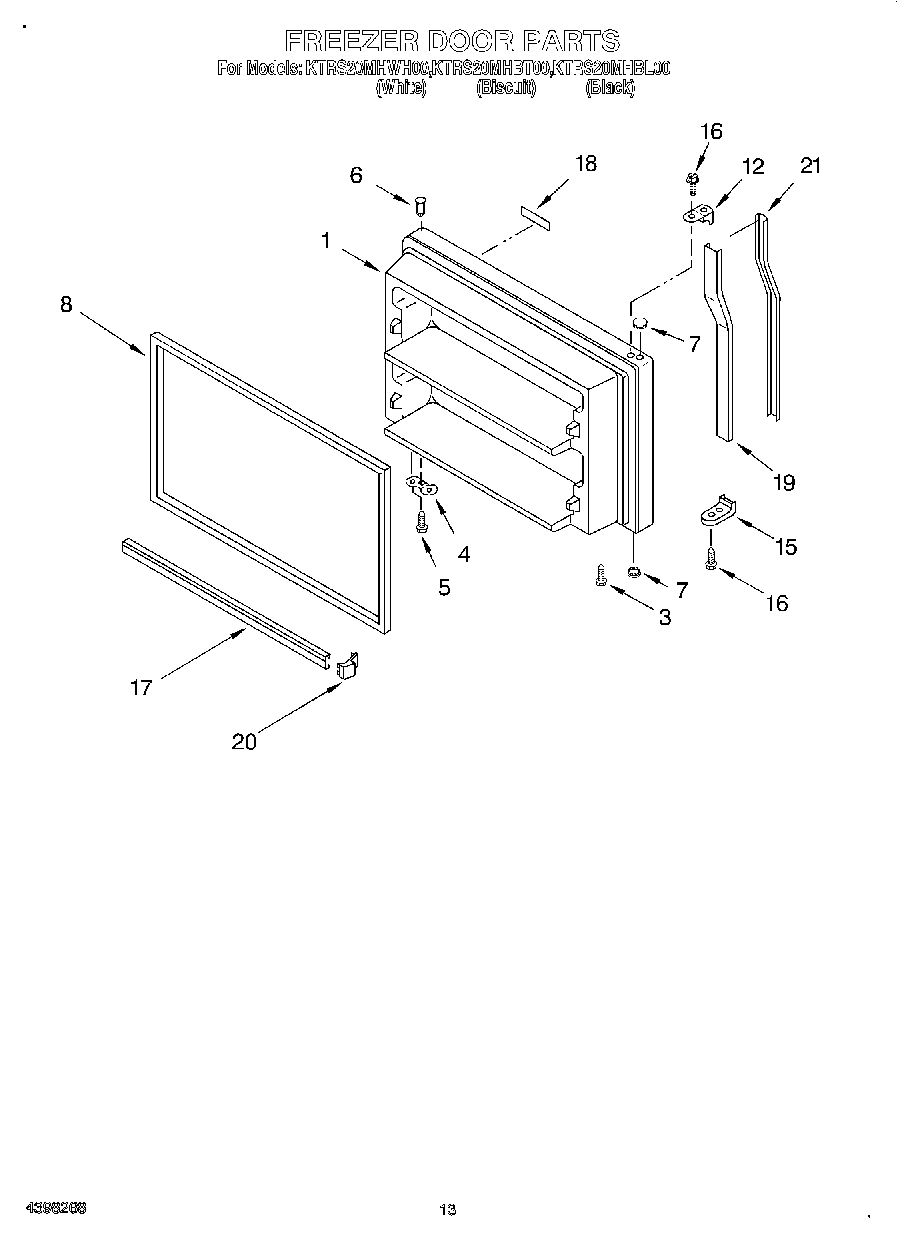

KTRS20MHBT00 07 – FREEZER DOOR, OPTIONAL

KTRS20MHBT00 07 – FREEZER DOOR, OPTIONAL

Written by

in

KTRS20MHBT00 07 – FREEZER DOOR, OPTIONAL

Products

Position	Product
1	W11023687 Whirlpool Refrigerator Door Assembly
1	W11023688 Whirlpool Refrigerator Door Assembly
1	W11023679 Whirlpool Refrigerator Door Assembly
3	WP8281206 Whirlpool Refrigerator Screw
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	WP2212649 Whirlpool Refrigerator Button Plug
7	WP2212651 Whirlpool Refrigerator Button Plug
8	2177310 Whirlpool Refrigerator Door Gasket
8	WHITE DOOR GASKET-FIP
12	Endcap
12	Endcap, Handle (Black)
12	Endcap (Biscuit)
15	End Cap (Black)
15	Endcap
15	Endcap (Biscuit)
16	WP489357 Whirlpool Recessed Screw
17	Trim, Door Shelf (2)
18	Nameplate (Black)
18	Nameplate (Biscuit)
18	Nameplate (White)
19	Insert, Handle (Biscuit)
19	Insert, Retainer (White)
19	Insert, Retainer (Black)
20	ENDCAP
21	Insert, Handle (Biscuit)
21	Insert, Handle (White)
21	Insert, Handle (Black)
100	72032 Whirlpool Touch Up Paint Black
100	4392901 Whirlpool Biscuit Spray Paint
100	FeaturePak (Includes 17, 20) Also See Ref.Dr. & Shelf Pgs.
100	285006 Whirlpool Spray
100	WPL 876029
100	833938 Whirlpool Refrigerator Terminal
100	606755 Whirlpool Refrigerator Bag
100	511873 Whirlpool Refrigerator Paint
100	4392899 Whirlpool Biscuit Touch-Up Paint
100	350942 Whirlpool Spray Paint
100	212643 Whirlpool Refrigerator Permagum Sealer
100	799344 Whirlpool Refrigerator Paint
100	72017 Whirlpool Appliance Touch-Up Paint White
100	876370 Whirlpool Refrigerator Insulation
100	WP503695 Whirlpool Refrigerator Sealer
100	WP505587 Whirlpool Refrigerator Sealer
100	WPL 799833
100	WPL 799832
100	Enamel, Black (1 Qt. Uncut)
100	CEMENT, ALUMILASTIC (1 1/4 OZ.)
100	TAPE, VINYL (3/4 X 108“)
100	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
100	Torx Key
100	WP542638 Whirlpool Refrigerator Grease
100	350930 Whirlpool White Spray Paint
