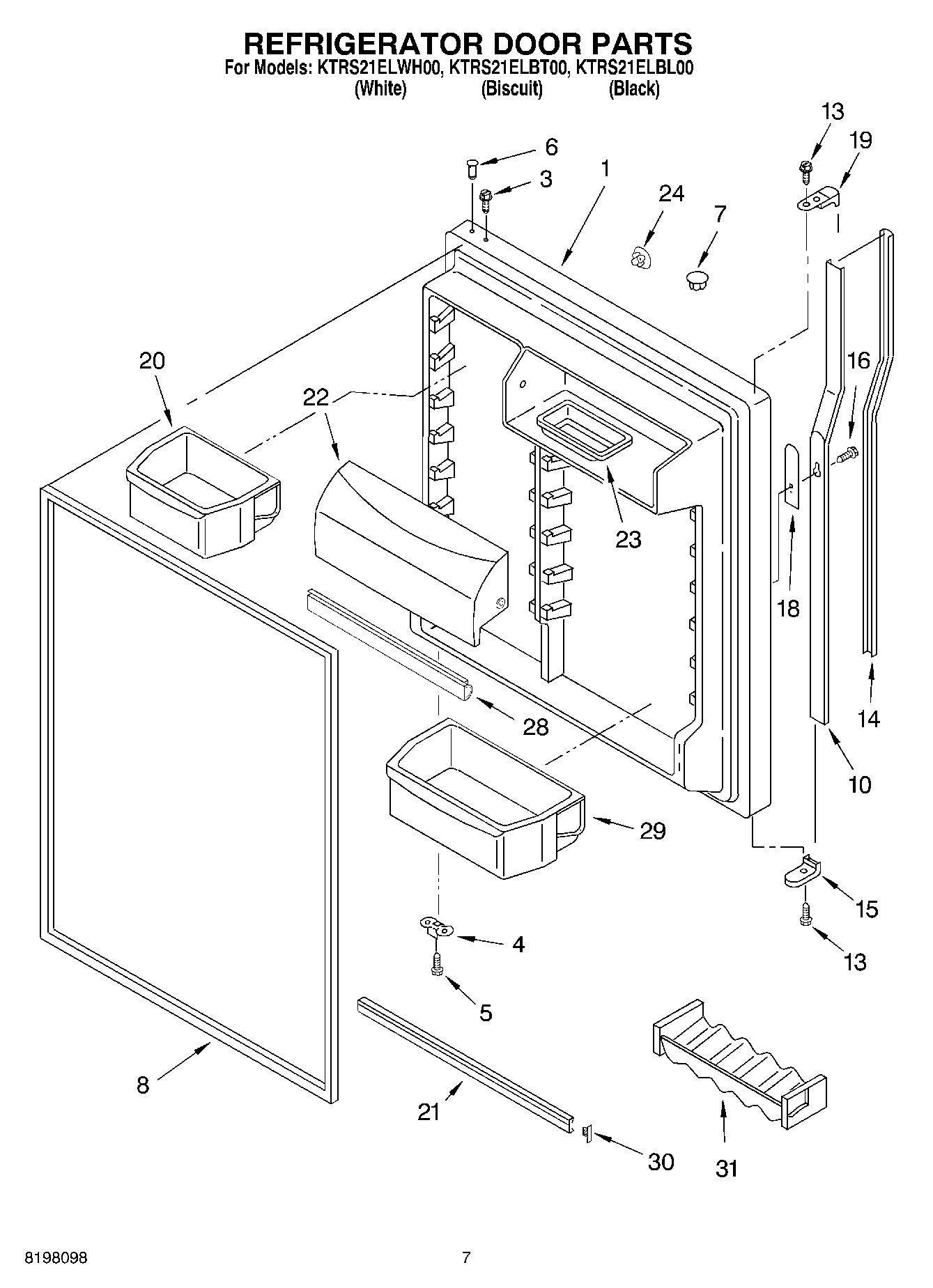

KTRS21ELBL00 04 – REFRIGERATOR DOORadmin2025-04-26T12:32:30+00:00KTRS21ELBL00 04 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes No.8) (Biscuit) |
| 1 | Refrigerator Door (Includes No.6 & No.8) (Black) |
| 1 | Refrigerator Door (Includes No.6 & No.8) (White) |
| 3 | WP8281206 Whirlpool Refrigerator Screw |
| 4 | W11745278 Whirlpool Bracket |
| 5 | WP488921 Whirlpool Refrigerator Screw |
| 6 | WP2183003 Whirlpool Thimble |
| 7 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 7 | WP2212649 Whirlpool Refrigerator Button Plug |
| 7 | WP2212651 Whirlpool Refrigerator Button Plug |
| 8 | 2177311 Whirlpool Refrigerator Magnetic Door Gasket |
| 8 | 2159061 Whirlpool Refrigerator Door Gasket |
| 10 | Retainer, Insert (Biscuit) |
| 10 | Retainer, Insert (White) |
| 10 | Retainer, Insert (Black) |
| 13 | WP489357 Whirlpool Recessed Screw |
| 14 | Insert, Handle (Biscuit) |
| 14 | Insert, Handle (White) |
| 14 | Insert, Handle (Black) |
| 15 | Endcap, Handle (White) |
| 15 | Endcap, Handle (Black) |
| 15 | Endcap, Bottom (Biscuit) |
| 16 | Screw |
| 18 | Spacer |
| 19 | Endcap |
| 19 | End Cap (Black) |
| 19 | Endcap (Biscuit) |
| 20 | Bin, Door Shelf Narrow (3) |
| 21 | WPW10421486 Whirlpool Refrigerator Door Trim |
| 22 | Door, Compartment |
| 23 | Butter Tray |
| 24 | WP2200936 Whirlpool Refrigerator Handle Plug |
| 24 | WP2189009 Whirlpool Refrigerator Handle Plug |
| 24 | WP2189000 Whirlpool Refrigerator Handle Plug |
| 28 | Gasket, Door Compartment |
| 29 | Bin, Door Shelf |
| 30 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 31 | Beverage Holder |
