KTRS21KDAL00 06 – FREEZER DOOR, LIT/OPTIONAL

KTRS21KDAL00 06 – FREEZER DOOR, LIT/OPTIONAL

Written by

in

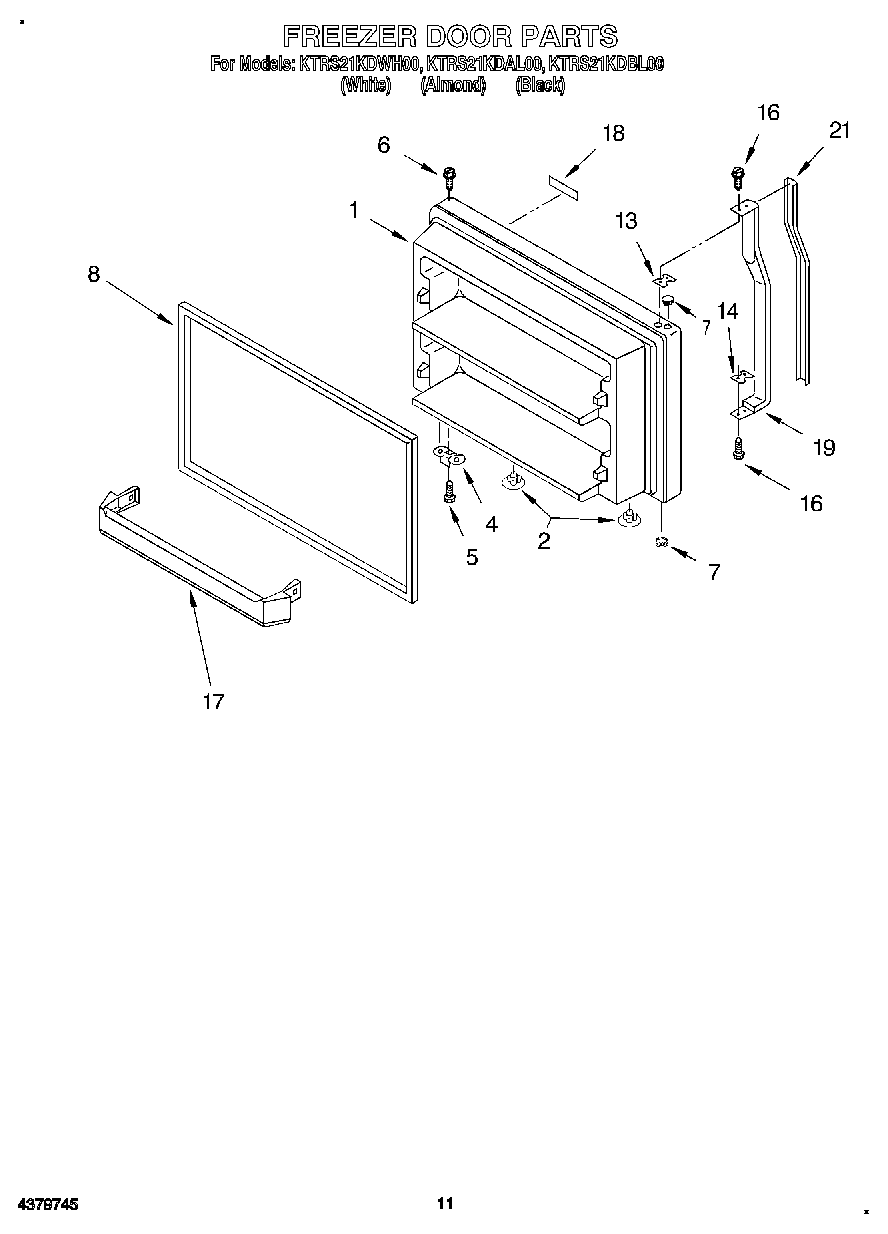

KTRS21KDAL00 06 – FREEZER DOOR, LIT/OPTIONAL

Products

PositionProduct
Torx Key
WPL LIT2172667
WPL LIT2179217
Modular Icemaker Service Sheet
WPL LIT2179221
1Freezer Door (Includes No.8) (Black)
1Freezer Door (Includes No.8) (White)
1Freezer Door (Includes No.8) (Almond)
2Hole Plug (2) (Almond)
2Hole Plug (2) (Black)
2Hole Plug (2)
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
7WP2212651 Whirlpool Refrigerator Button Plug
8Door Gasket, Magnetic
13Spacer, Handle
14Shim, Bottom
16WP488920 Whirlpool Refrigerator Screw
17Trim, Door
18Nameplate (Almond Model)
18Nameplate (White Model)
18Nameplate (Black)
19Handle
21Door Reversal Instructions
21Insert, Handle (Black)
21WPL 799833
21350930 Whirlpool White Spray Paint
21Insert, Handle (Almond)
21Insert, Handle (White)
2172032 Whirlpool Touch Up Paint Black
21606755 Whirlpool Refrigerator Bag
21511873 Whirlpool Refrigerator Paint
21350942 Whirlpool Spray Paint
21212643 Whirlpool Refrigerator Permagum Sealer
21Almond (Uncut)
21WP72107 Whirlpool Touchup
21799344 Whirlpool Refrigerator Paint
2172017 Whirlpool Appliance Touch-Up Paint White
21833938 Whirlpool Refrigerator Terminal
21876370 Whirlpool Refrigerator Insulation
21285006 Whirlpool Spray
21WPL 876029
21WPL 799832
21CEMENT, ALUMILASTIC (1 1/4 OZ.)
21TAPE, VINYL (3/4 X 108“)
21WP542638 Whirlpool Refrigerator Grease
21WP505587 Whirlpool Refrigerator Sealer
21WP503695 Whirlpool Refrigerator Sealer
21350956 Whirlpool Spray Assembly
