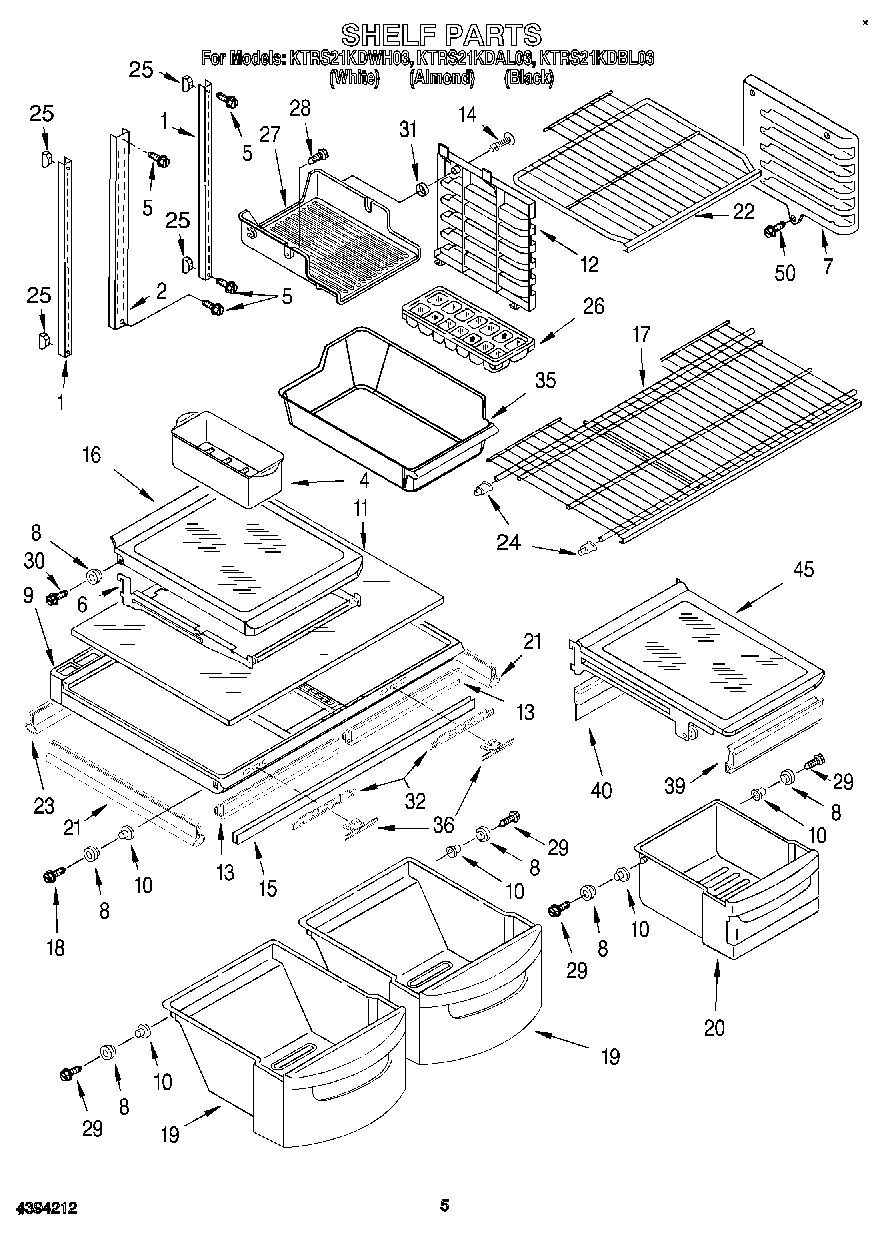

KTRS21KDAL03 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
4	W10136387A Whirlpool Refrigerator Egg Container
5	W11544659 Whirlpool Refrigerator Screw
6	Frame Assembly, Cantilever
7	Bracket, Shelf Mounting (R.S.)
8	Roller
9	Crisper Cover (Includes Rollers)
10	Eyelet, Roller
11	Glass, Crisper Cover
12	Bracket, Shelf Mounting (L.S.)
13	WP1125528 Whirlpool Refrigerator Gasket
14	Fastener
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard (3) (Includes Rollers)
17	Shelf, Freezer
18	WPW10272364 Whirlpool Refrigerator Screw
19	Pan, Crisper (Includes Rollers)
20	Pan, Meat (Includes Rollers)
21	Gasket, Crisper Cover (Side) (4)
22	Shelf, Freezer (Top)
23	Gasket, Pan Cover-Rear
24	2163762 Whirlpool Refrigerator Cup Assembly
25	520965 Whirlpool Refrigerator Support
26	WP841180A Whirlpool Microwave Glass Turntable Tray
27	Bracket, Shelf Mounting (L.S.)
29	WP489261 Whirlpool Refrigerator Screw
30	Screw
31	Support, Ice Tray Shelf
32	Slide, Humidity
35	Ice Cube Pan
36	Button, Humidity Control
39	Gasket, Front
40	Gasket, Rear
45	Shelf Assembly, Spillguard
50	WP489442 Whirlpool Refrigerator Screw
