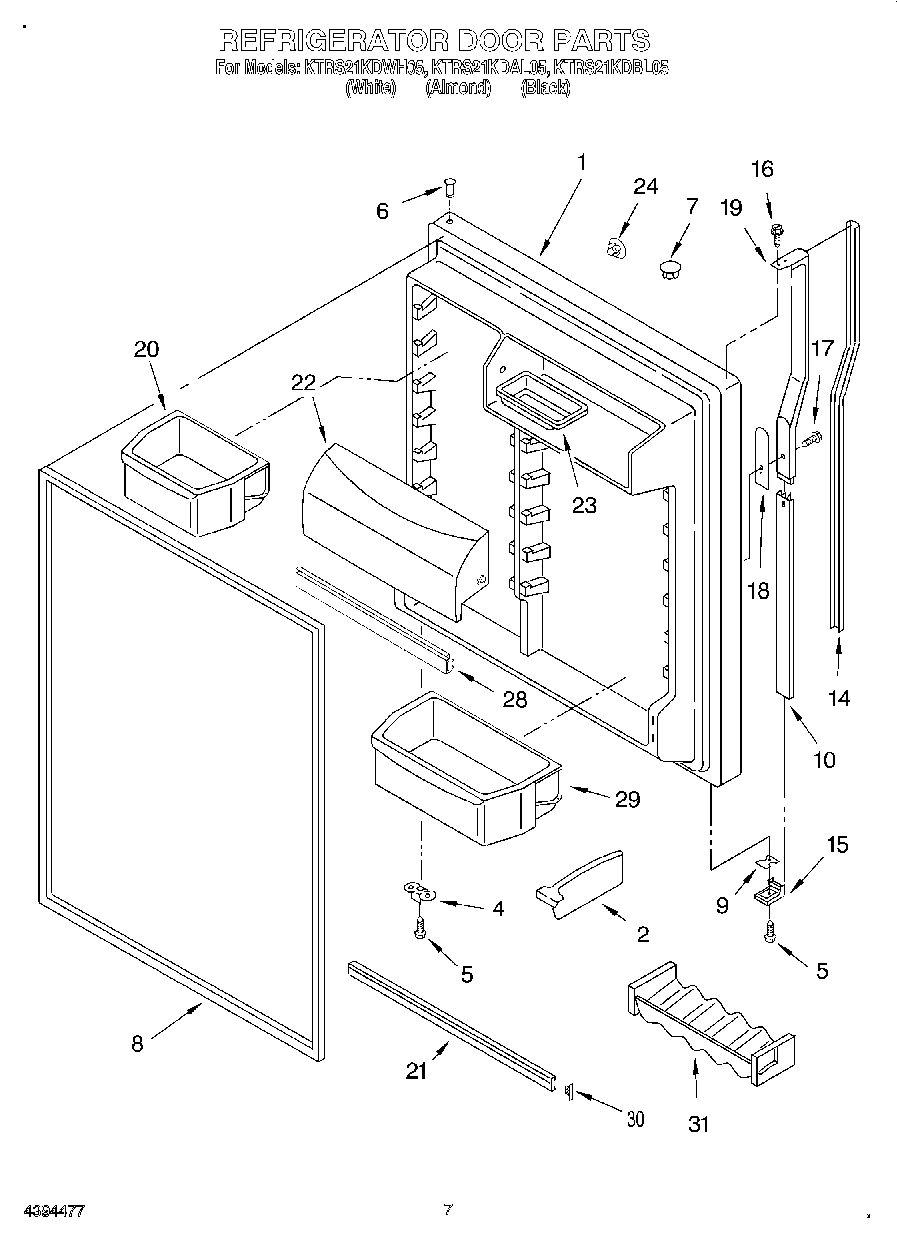

KTRS21KDAL05 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.8) (Black)
1	Refrigerator Door (Includes No.8) (Almond)
1	Refrigerator Door (Includes No.6 & No.8)
2	Divider, Door Bin (2)
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212651 Whirlpool Refrigerator Button Plug
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	Door Gasket, Magnetic
9	Shim, Bottom
10	Retainer, Insert
14	Insert, Handle (Almond)
14	Insert, Handle (Black)
14	Insert, Handle (White)
15	Handle End
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Spacer, Handle
19	Handle
20	Bin, Door Shelf (2)
21	WPW10421486 Whirlpool Refrigerator Door Trim
22	WP2313637 Whirlpool Cutting Grid Assembly
23	Butter Tray
24	Hole Plug, Handle (Almond)
24	WP2189009 Whirlpool Refrigerator Handle Plug
24	WP2189000 Whirlpool Refrigerator Handle Plug
28	Gasket, Door Compartment
29	Bin, Door Shelf
30	Plug, Trim (2)
31	WPL 1125981
