KTRS21KDAL05 06 – FREEZER DOOR, LIT/OPTIONAL

KTRS21KDAL05 06 – FREEZER DOOR, LIT/OPTIONAL

Written by

in

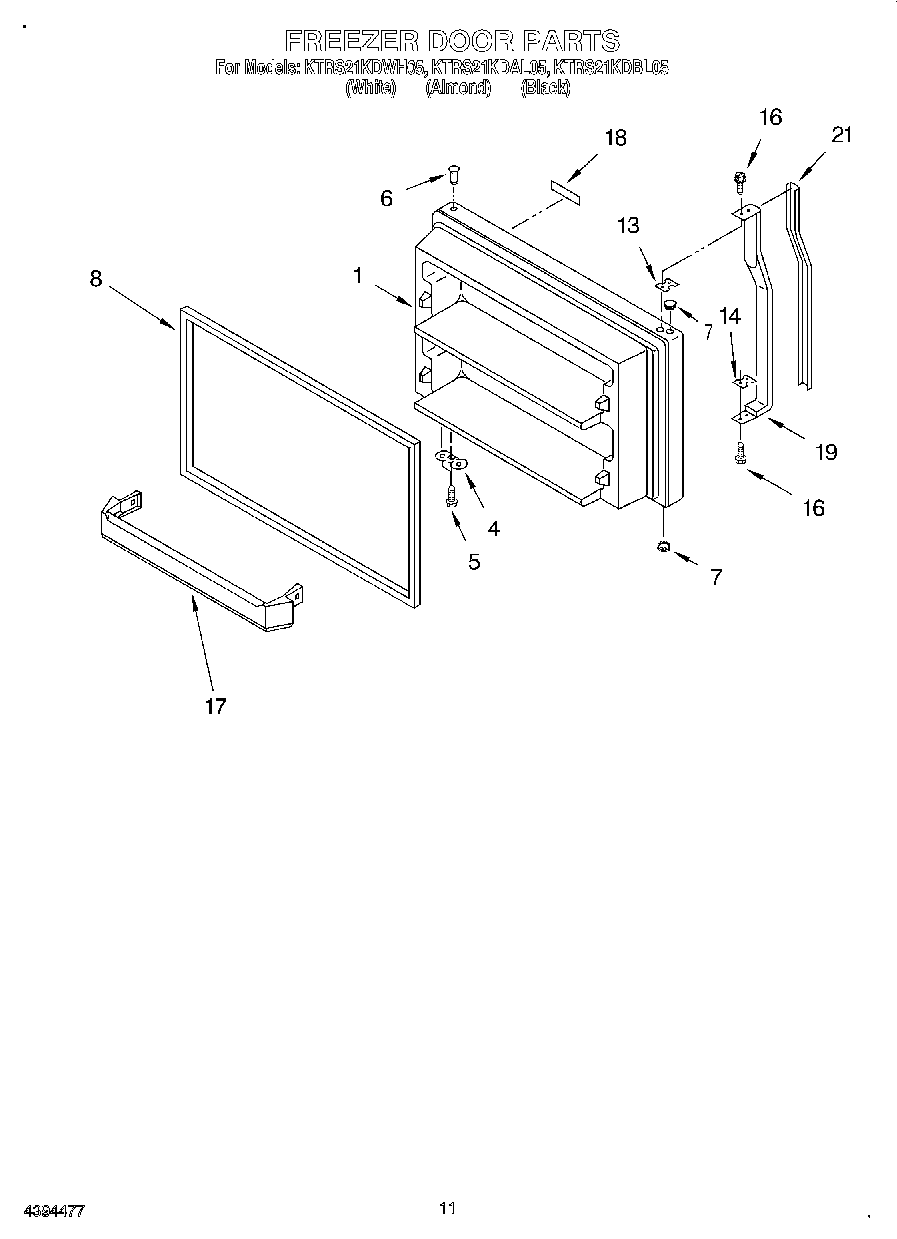

KTRS21KDAL05 06 – FREEZER DOOR, LIT/OPTIONAL

Products

PositionProduct
Torx Key
WPL LIT2193090
WPL LIT2184594
WPL LIT2193264
Modular Icemaker Service Sheet
1Freezer Door (Includes No.8) (Black)
1Freezer Door (Includes No.8) (Almond)
1Freezer Door (Includes No.8) (White)
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
7WP2212651 Whirlpool Refrigerator Button Plug
8Door Gasket, Magnetic
13Spacer, Handle
14Shim, Bottom
16WP488920 Whirlpool Refrigerator Screw
17Trim, Door
18Nameplate (Black)
18Nameplate (White Model)
18Nameplate (Almond Model)
19Handle
21833938 Whirlpool Refrigerator Terminal
21Insert, Handle (White)
21Insert, Handle (Almond)
21TAPE, VINYL (3/4 X 108“)
21799344 Whirlpool Refrigerator Paint
21350930 Whirlpool White Spray Paint
21WP503695 Whirlpool Refrigerator Sealer
2172017 Whirlpool Appliance Touch-Up Paint White
21350956 Whirlpool Spray Assembly
21Insert, Handle (Black)
21WP542638 Whirlpool Refrigerator Grease
21WP72107 Whirlpool Touchup
21Door Reversal Instructions
21876370 Whirlpool Refrigerator Insulation
21606755 Whirlpool Refrigerator Bag
21511873 Whirlpool Refrigerator Paint
21350942 Whirlpool Spray Paint
21212643 Whirlpool Refrigerator Permagum Sealer
21285006 Whirlpool Spray
2172032 Whirlpool Touch Up Paint Black
21Almond (Uncut)
21CEMENT, ALUMILASTIC (1 1/4 OZ.)
21WPL 876029
21WPL 799833
21WPL 799832
21WP505587 Whirlpool Refrigerator Sealer
