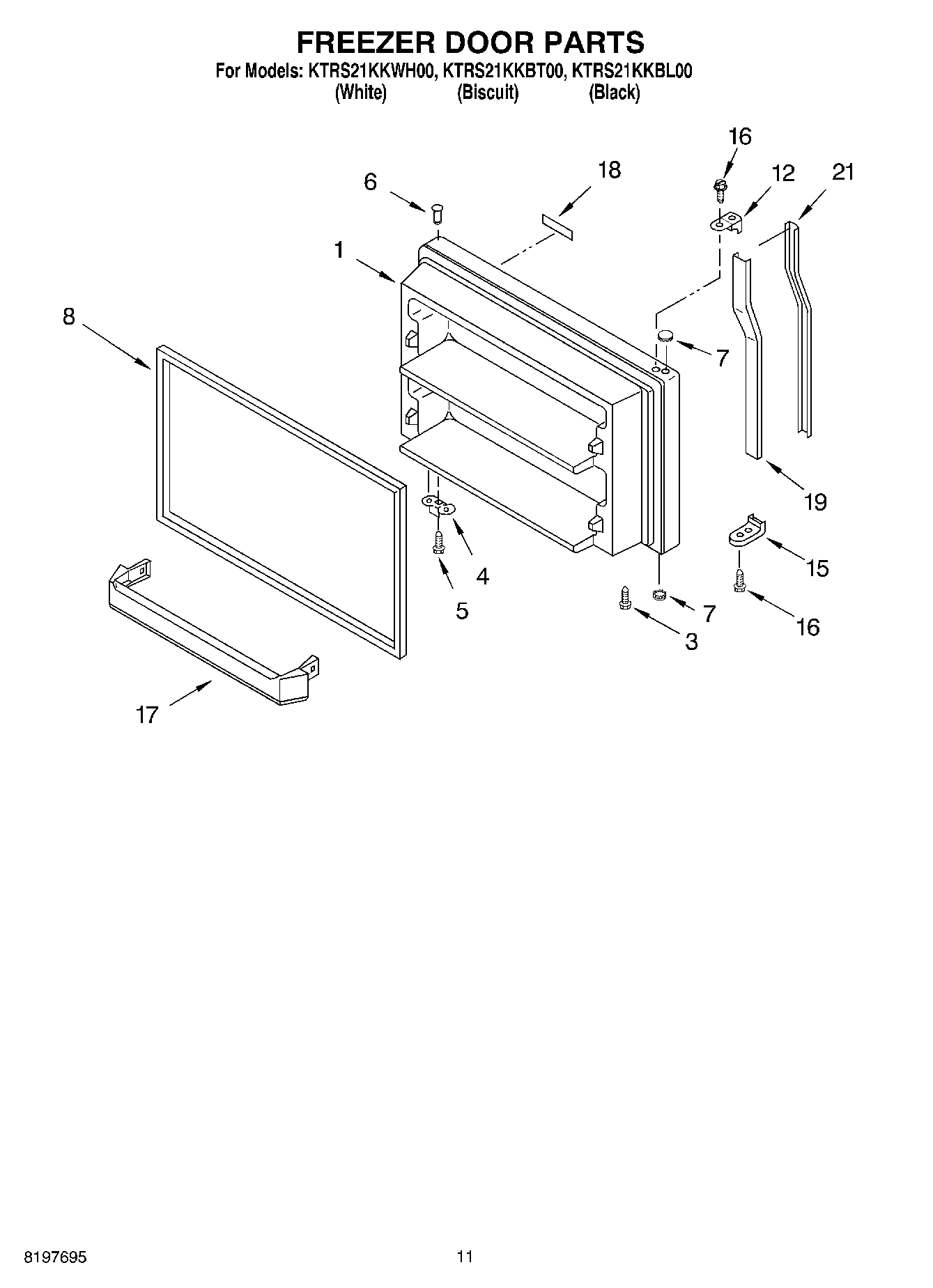

KTRS21KKBT00 06 – FREEZER DOOR, OPTIONAL

KTRS21KKBT00 06 – FREEZER DOOR, OPTIONAL

Written by

in

KTRS21KKBT00 06 – FREEZER DOOR, OPTIONAL

Products

PositionProduct
1W11023688 Whirlpool Refrigerator Door Assembly
1W11023679 Whirlpool Refrigerator Door Assembly
1W11023687 Whirlpool Refrigerator Door Assembly
3WP8281206 Whirlpool Refrigerator Screw
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8WHITE DOOR GASKET-FIP
82177310 Whirlpool Refrigerator Door Gasket
12Endcap
12Endcap, Handle (Black)
12Endcap (Biscuit)
15Endcap
15Endcap (Biscuit)
15End Cap (Black)
16WP489357 Whirlpool Recessed Screw
17Trim, Door
18Nameplate (Biscuit)
18Nameplate (White)
18Nameplate (Black)
19Insert, Handle (Biscuit)
19Insert, Retainer (White)
19Insert, Retainer (Black)
21285006 Whirlpool Spray
214392901 Whirlpool Biscuit Spray Paint
21Insert, Handle (Biscuit)
2172032 Whirlpool Touch Up Paint Black
21Insert, Handle (White)
21Insert, Handle (Black)
21WPL 876029
21876370 Whirlpool Refrigerator Insulation
21833938 Whirlpool Refrigerator Terminal
21606755 Whirlpool Refrigerator Bag
21511873 Whirlpool Refrigerator Paint
214392899 Whirlpool Biscuit Touch-Up Paint
21350942 Whirlpool Spray Paint
21212643 Whirlpool Refrigerator Permagum Sealer
21799344 Whirlpool Refrigerator Paint
2172017 Whirlpool Appliance Touch-Up Paint White
21WP503695 Whirlpool Refrigerator Sealer
21WP505587 Whirlpool Refrigerator Sealer
21W11729596 Whirlpool Ice Maker Field Install Kit
21WPL 799833
21WPL 799832
21Enamel, Black (1 Qt. Uncut)
21CEMENT, ALUMILASTIC (1 1/4 OZ.)
21TAPE, VINYL (3/4 X 108“)
21PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
21Torx Key
21WP542638 Whirlpool Refrigerator Grease
21350930 Whirlpool White Spray Paint
