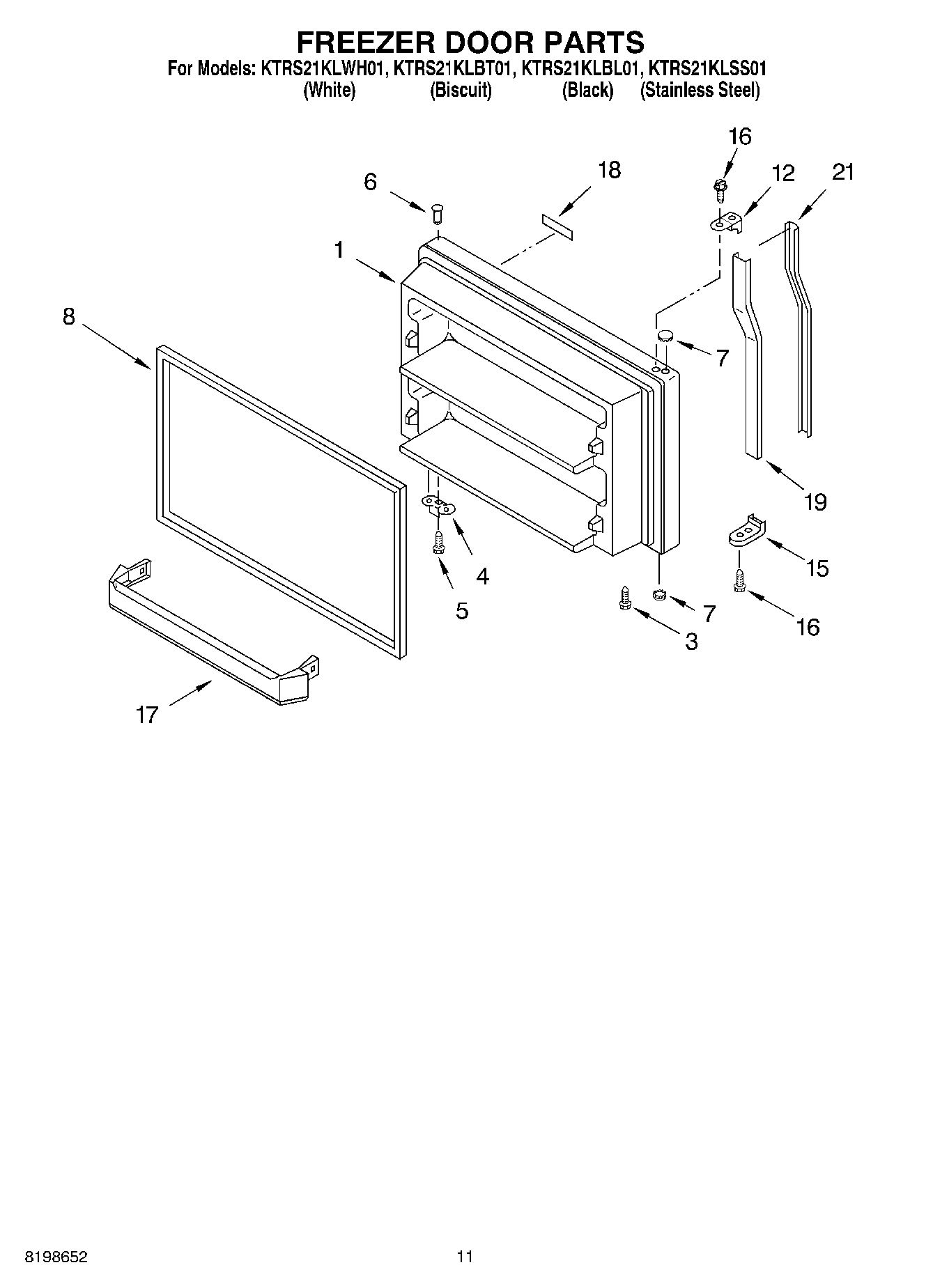

KTRS21KLSS01 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

KTRS21KLSS01 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Written by

in

KTRS21KLSS01 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI112182A
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
WPL ARI112181A
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI112184A
WPL ARI112180A
WPL ARI112185A
WPL ARI112183A
TAPE, VINYL (3/4 X 108“)
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
511873 Whirlpool Refrigerator Paint
350930 Whirlpool White Spray Paint
WP542638 Whirlpool Refrigerator Grease
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
833938 Whirlpool Refrigerator Terminal
606755 Whirlpool Refrigerator Bag
1W11023679 Whirlpool Refrigerator Door Assembly
1W11023687 Whirlpool Refrigerator Door Assembly
1W11023688 Whirlpool Refrigerator Door Assembly
1Freezer Door (Includes Illus. 4,16 & 17) (Stainless Steel)
3WP8281206 Whirlpool Refrigerator Screw
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8WHITE DOOR GASKET-FIP
82177310 Whirlpool Refrigerator Door Gasket
12Endcap, Handle (Black)
12Endcap
12Endcap (Biscuit)
15Endcap (Biscuit)
15End Cap (Black)
15Endcap
16WP489357 Whirlpool Recessed Screw
17Trim, Door
18Nameplate (Black)
18Nameplate (Biscuit)
18Nameplate (White)
19Insert, Retainer (White)
19Insert, Handle (Biscuit)
19Insert, Retainer (Black)
21Insert, Handle (White)
21Insert, Handle (Black)
21Insert, Handle (Biscuit)
