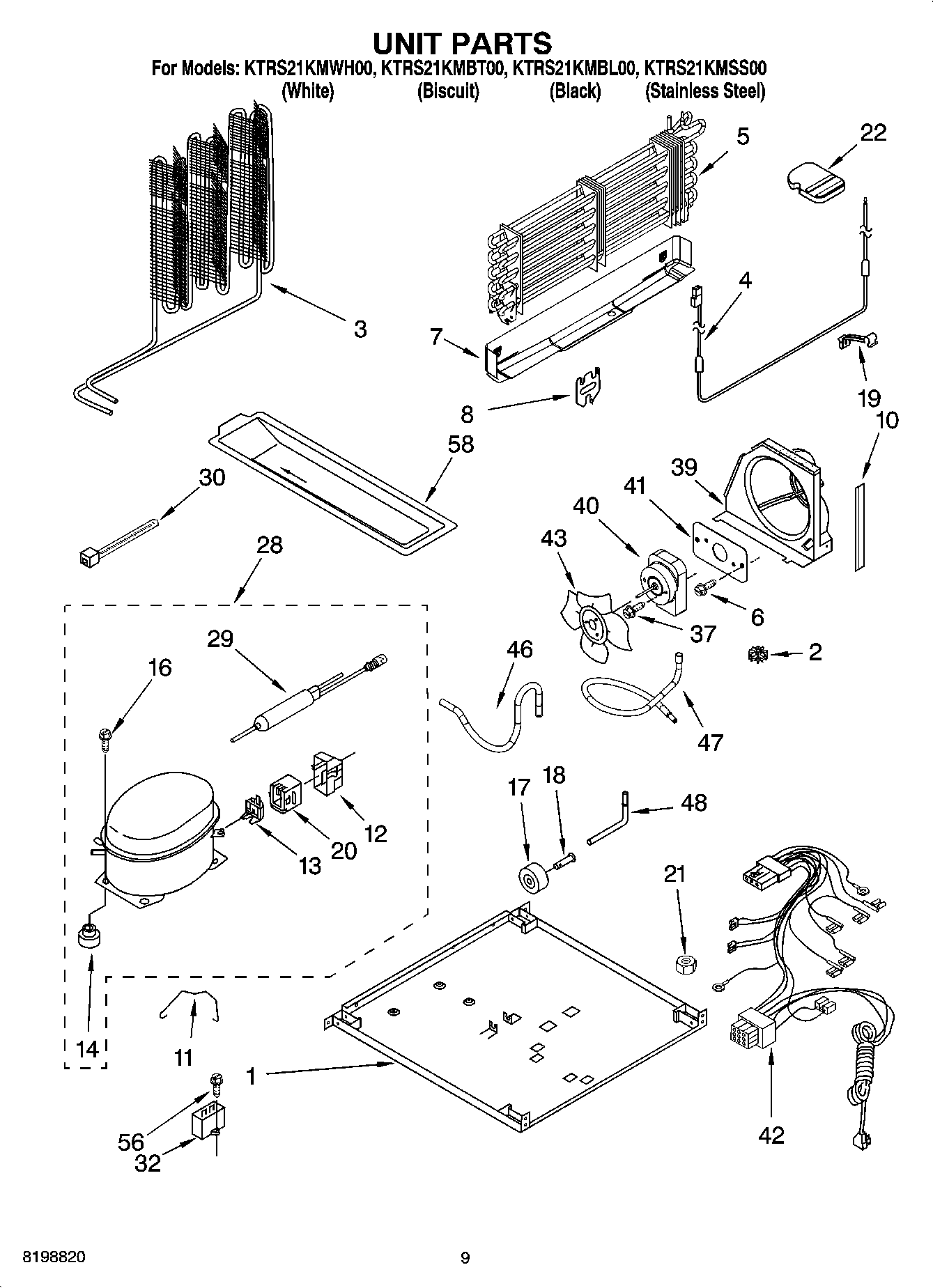

KTRS21KMSS00 05 – UNIT PARTSadmin2025-04-26T12:34:10+00:00KTRS21KMSS00 05 – UNIT PARTS ProductsPositionProduct1Plate, Unit Mounting2Grommet3WP2214960 Whirlpool Refrigerator Condenser4WP2315530 Whirlpool Refrigerator Heater5EVAPORATOR ASSY.6WP8281196 Whirlpool Screw7Drain Pan8Bracket, Heater10Extension, Air Baffle11Clip, Retaining12WP2162358 Whirlpool Refrigerator Terminal Cover134387913 Whirlpool Refrigerator Primary Overload Relay14WP4387558 Whirlpool Refrigerator Compressor Grommet14876811 Whirlpool Grommet17WPW10475495 Whirlpool Roller Assembly18W11594405 Whirlpool Axle19Clip, Heater20W11285096 Whirlpool Refrigerator Start-Device21Nut (Not Serviced)22Support Block28W10309989 Whirlpool Refrigerator Compressor29W10843121 Whirlpool Refrigerator Tube30WPW10339879 Whirlpool Wire Tie32WPW10662129 Whirlpool Refrigerator Run Capacitor378281197 Whirlpool Refrigerator Screw39Air Baffle40W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade41Plate422187382 Whirlpool Refrigerator Wire Harness43W11458267 Whirlpool Refrigerator Fan Blade462205533 Whirlpool Refrigerator Tube472214924 Whirlpool Refrigerator Tube482154109 Whirlpool Refrigerator Tube56WP489128 Whirlpool Refrigerator Screw58Following Parts Not Illustrated and Optional Parts Not Included58876764 Whirlpool Refrigerator Primary Valve58978027 Whirlpool Refrigerator Primary Valve58978026 Whirlpool Refrigerator Primary Valve588201826 Whirlpool Refrigerator Evaporator Tray58978030 Whirlpool Refrigerator Valve58WP978025 Whirlpool Refrigerator Valve58VALVE, ACCESS (1/2``)58VALVE, ACCESS (5/8``)58REFRIGERANT CHARGE 4.0 Ozs. (R134A)
