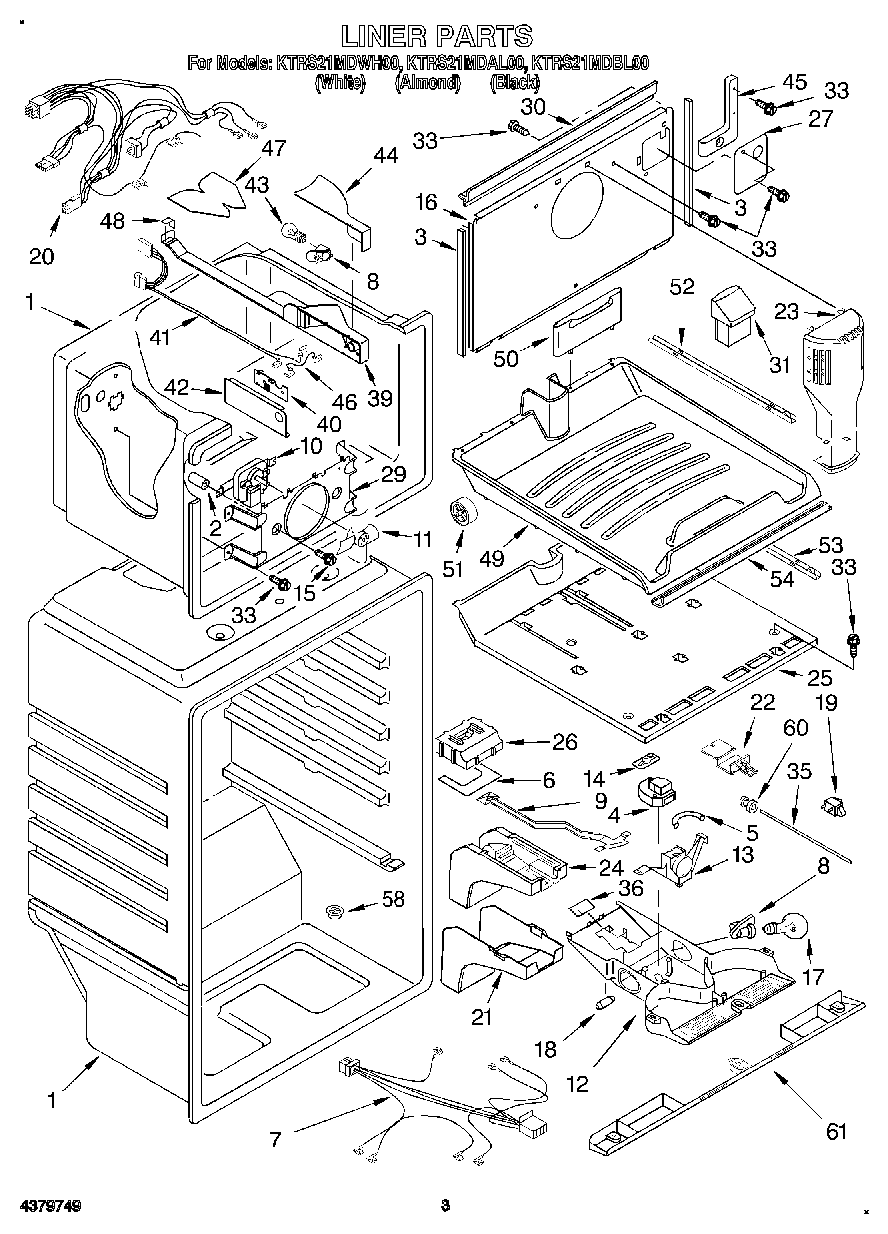

KTRS21MDBL00 02 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Grommet
4	WP2183400 Whirlpool Defrost Timer
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	Seal, Air Diffuser
7	Wire Assy. Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Air Damper (Slide)
10	Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assembly (Includes Items 5, 18, & 36)
14	Clip, Defrost Timer
15	Screw
16	Cover, Evaporator
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Wire Assembly, Freezer Compartment
21	Cover, Air Diffuser
22	Slide, Knob
23	Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Freezer Floor
26	Air Diffuser, Top
27	WP2217784 Whirlpool Refrigerator Cover
29	Bracket, Fan Motor
30	WP2254360 Whirlpool Refrigerator Gasket
31	4388450 Whirlpool Refrigerator Insert
33	WP489442 Whirlpool Refrigerator Screw
35	Light Bar (FC)
36	WP2205079 Whirlpool Refrigerator Seal
39	Housing Base
40	PC Board, Freezer Light
41	Wiring Harness, Freezer Light
42	Electrical Shield, Freezer Light
43	4396822 Whirlpool Refrigerator Light Bulb
44	Cover, Freezer Light
45	Shroud, Icemaker
46	Wiring Harness, Freezer Light
47	Shield, Electrical Heat
48	Gasket, Rear
49	Pullout, Freezer Floor
50	Rear Fence, Pull- Out Freezer Floor
51	Roller, Slide
52	Side Support, Floor Assembly
53	Center Support, Floor Assembly
54	Trim, Pullout Freezer Floor
58	2171846 Whirlpool Refrigerator Release Valve
60	Grommet, Light Fiber
61	Cover, Control Box Front
