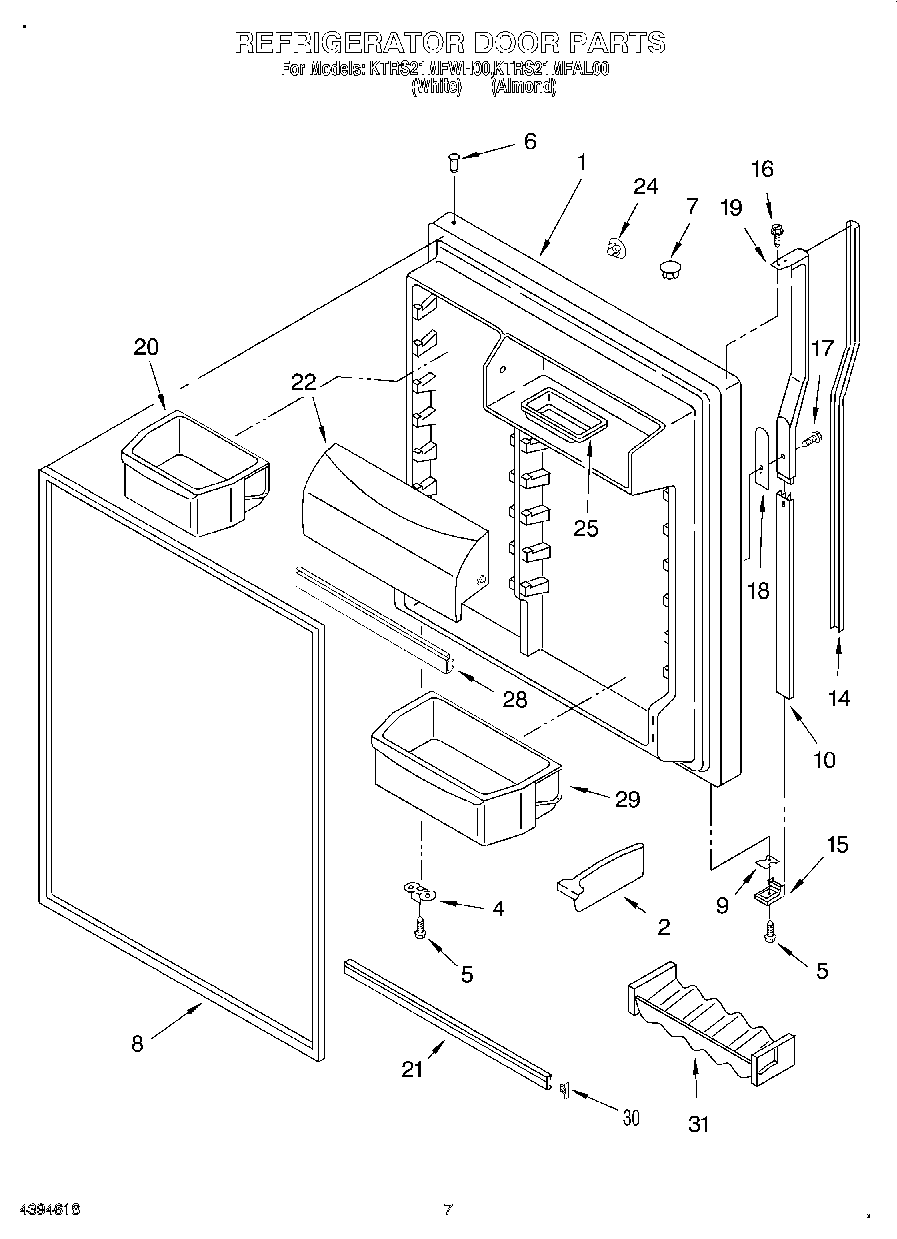

KTRS21MFAL00 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.6 & No.8) (White)
1	Refrigerator Door (Includes No.6 & No.8) (Almond)
2	Divider-Door
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159061 Whirlpool Refrigerator Door Gasket
9	Shim, Bottom
10	Retainer, Insert
14	Insert, Handle (Almond)
14	Insert, Handle (White)
15	Handle End
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Spacer, Handle
19	Handle
20	Bin, Door Shelf Narrow (3)
21	WPW10421486 Whirlpool Refrigerator Door Trim
22	WP2313637 Whirlpool Cutting Grid Assembly
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug (Almond)
25	Butter Tray
28	Gasket, Door Compartment
29	Bin, Door Shelf
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	Beverage Holder
100	Featurepak (Includes 4, 6, 16 20, 41, 42 & 45. See also Refrigerator Door Parts and Freezer Door Par
