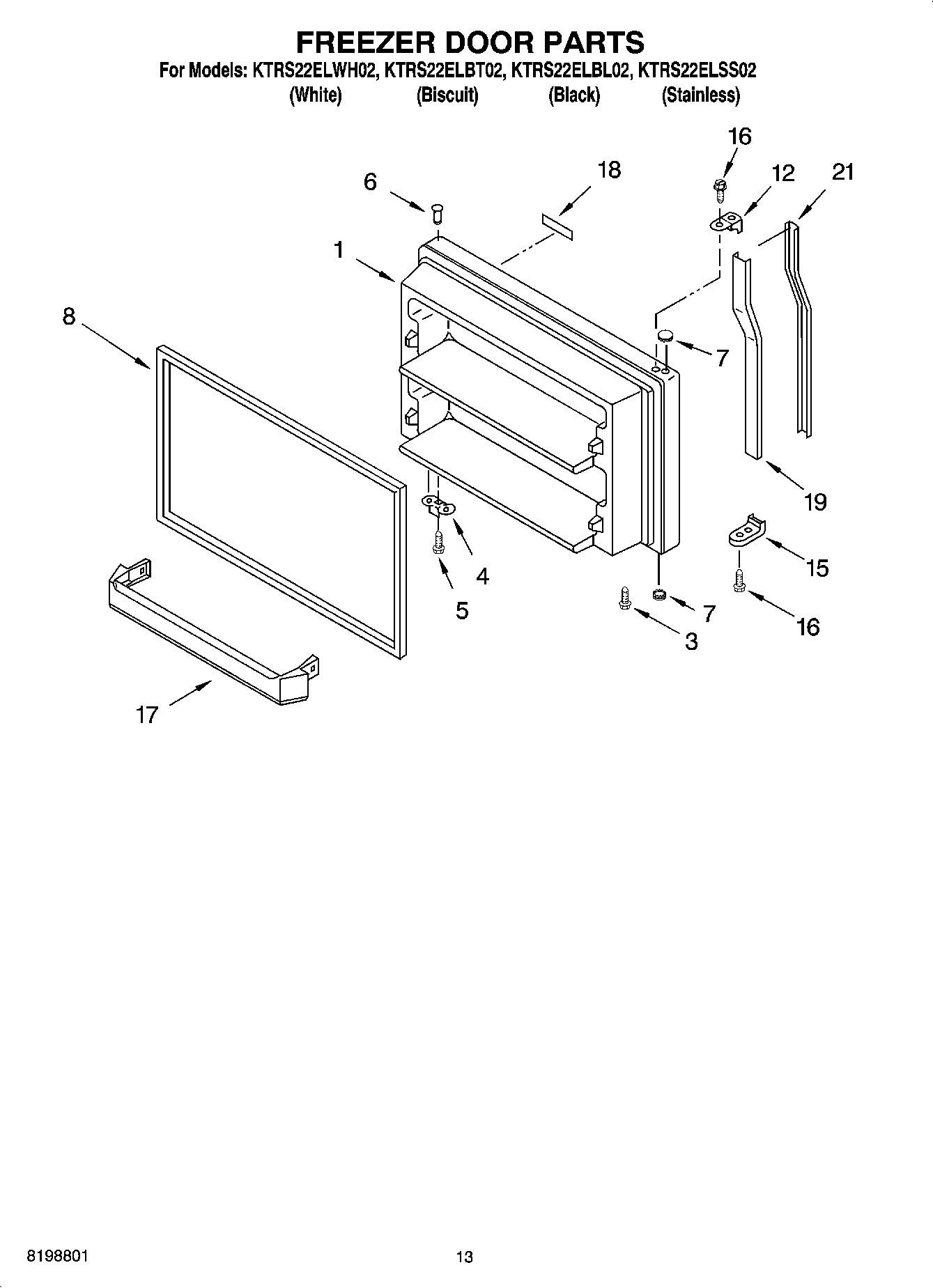

KTRS22ELBL02 07 – FREEZER DOOR PARTS

KTRS22ELBL02 07 – FREEZER DOOR PARTS

Written by

in

KTRS22ELBL02 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Illus. 3,8 & 12) (Stainless)
1Freezer Door (Includes No.8) (Black)
1Freezer Door (Includes No.8) (White)
1Freezer Door (Includes No.6 & No.8) (Biscuit)
3WP8281206 Whirlpool Refrigerator Screw
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212649 Whirlpool Refrigerator Button Plug
8WHITE DOOR GASKET-FIP
82177310 Whirlpool Refrigerator Door Gasket
12Endcap, Handle (Black)
12Endcap (Biscuit)
12Endcap
15Endcap
15Endcap (Biscuit)
15End Cap (Black)
16WP489357 Whirlpool Recessed Screw
17Trim, Door
18Nameplate (Black)
18Nameplate (Biscuit)
18Nameplate (White)
19Insert, Retainer (Black)
19Insert, Handle (Biscuit)
19Insert, Retainer (White)
21Insert, Handle (Black)
21Insert, Handle (Biscuit)
21Insert, Handle (White)
