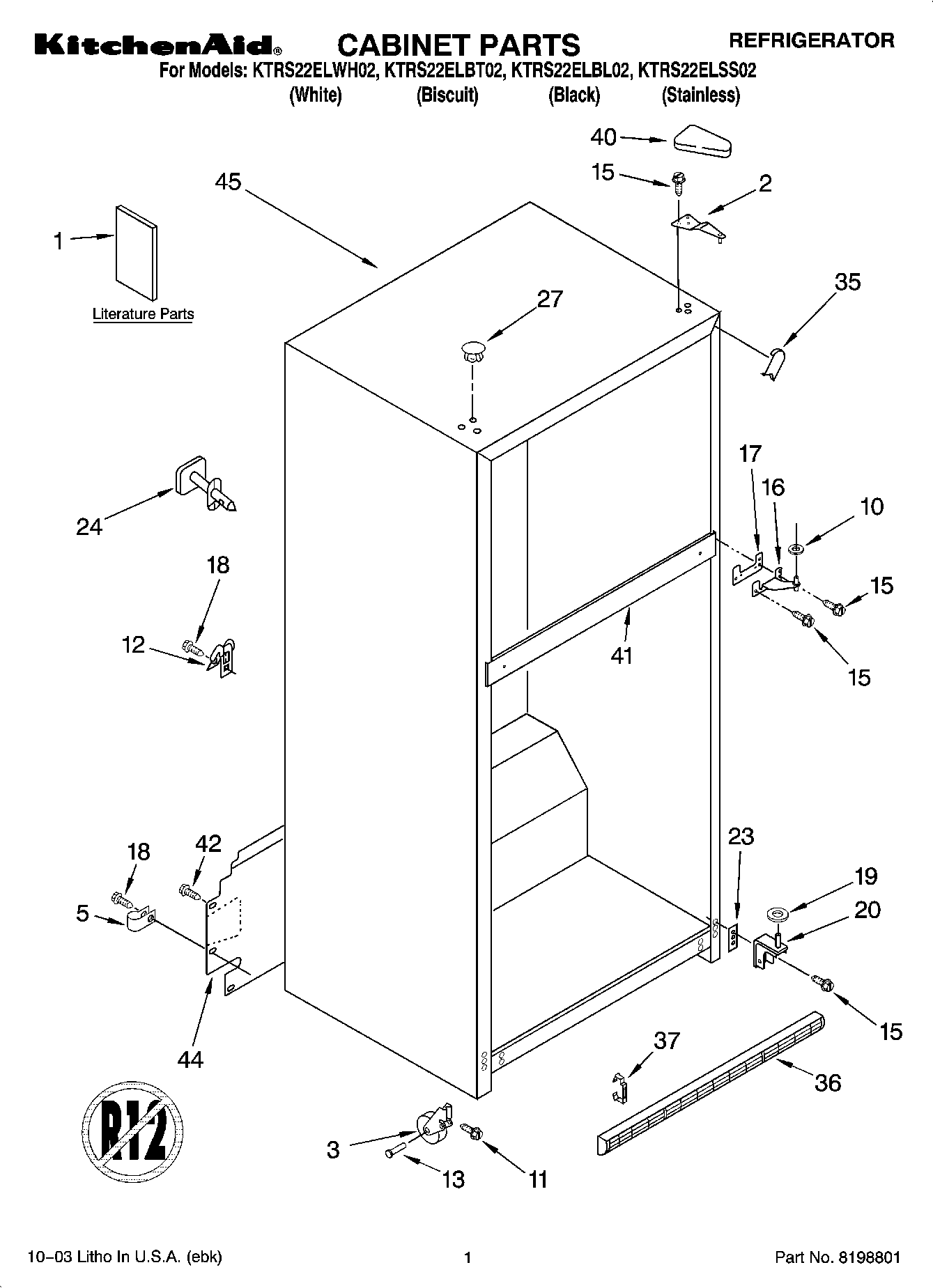

KTRS22ELBT02 01 – CABINET PARTS

KTRS22ELBT02 01 – CABINET PARTS

Written by

in

KTRS22ELBT02 01 – CABINET PARTS

Products

PositionProduct
1Literature Parts (Instruction Sheet, Water Filter)
1Literature Parts (Service & Wiring Sheet)
1Literature Parts (Use & Care Guide)
1Modular Icemaker Service Sheet
1Literature Parts (Customer Instructions)
1Literature Parts (Energy Label)
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP488366 Whirlpool Refrigerator Clamp
10WP489467 Whirlpool Hinge Shim
11WP3400504 Whirlpool Refrigerator Screw
12549193 Whirlpool Refrigerator Power Clamp
13W11594405 Whirlpool Axle
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
19WP487576 Whirlpool Washer
20WP2254473 Whirlpool Refrigerator Door Hinge
23Shim, Bottom Hinge
24Fitting, Water Tube (Not Serviced)
27Hole Plug (6) (Biscuit)
27WP2183998 Whirlpool Refrigerator Button Plug
27WP2151652 Whirlpool Refrigerator Button Plug
35W10283958 Whirlpool Refrigerator Filler
35WPW10283959 Whirlpool Refrigerator Filler
35W11252732 Whirlpool Refrigerator Filler
36Grille (Biscuit)
36GRILLE (INCLUDES ILLUS. 19) (BLACK)
36Grille (White)
37CLIP, GRILLE
402213364 Whirlpool Refrigerator Cover
40WP2213360 Whirlpool Refrigerator Cover
40WP2213363 Whirlpool Refrigerator Cover
41Rail Center (Not Serviced)
42WP489442 Whirlpool Refrigerator Screw
44Cover, Unit
45Cabinet (Not A Serviceable Part)
