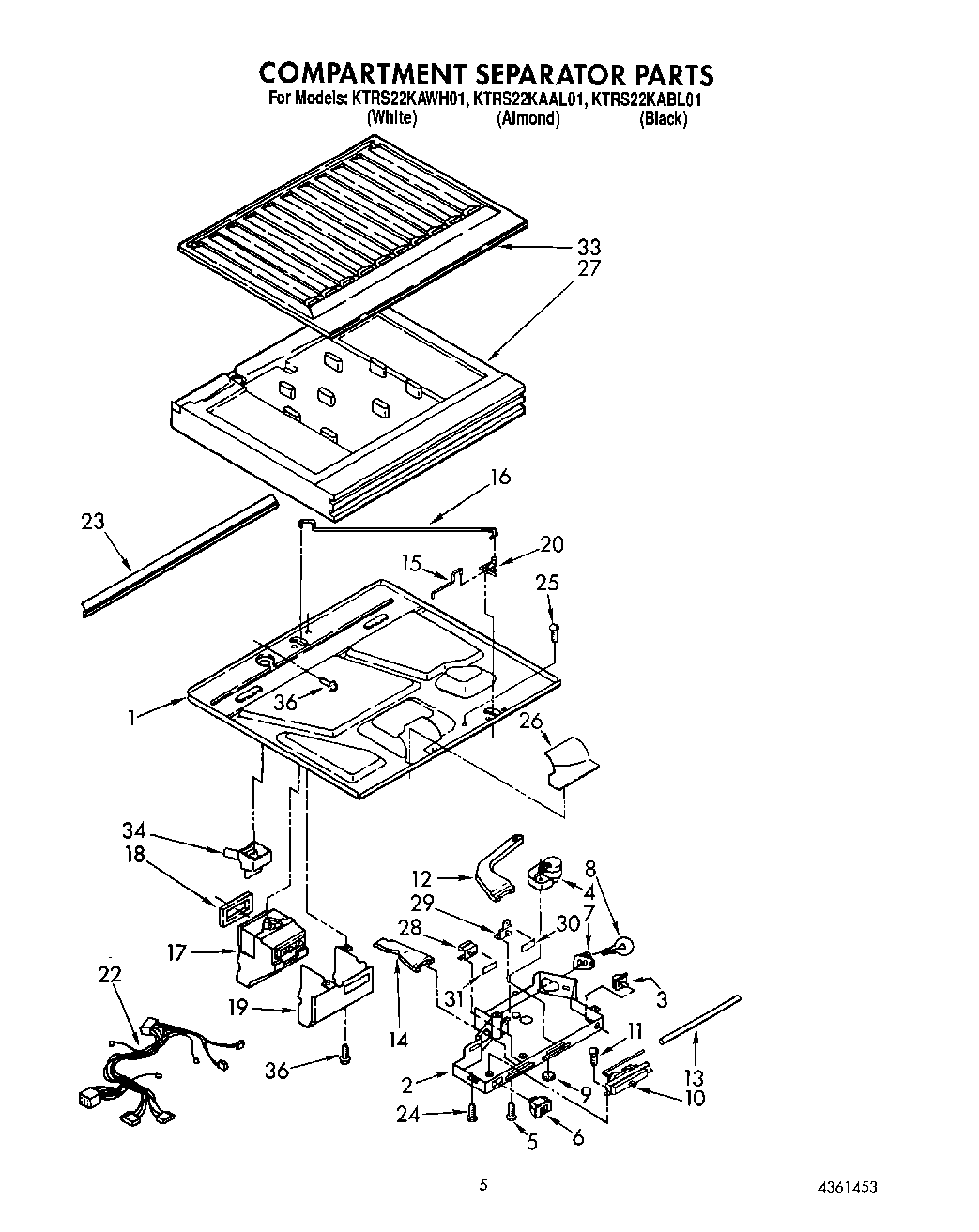

KTRS22KABL01 03 – COMPARTMENT SEPARATOR

Products

Position	Product
1	Bottom, Compartment Separator
2	Box, Control
3	WP2149705 Whirlpool Refrigerator Door Switch
4	WP2183400 Whirlpool Defrost Timer
5	WP487353 Whirlpool Refrigerator Screw
6	Switch, Toggle
7	4387478 Whirlpool Refrigerator Light Socket
8	W11679940 Whirlpool Refrigerator Light Bulb Assembly
9	940014 Whirlpool Refrigerator Primary Button Plug
10	Thermostat Assembly
11	2006254 Whirlpool Refrigerator Screw
12	Light Pipe (R.S.)
13	WP2196003 Whirlpool Refrigerator Bar Riser
14	Light Pipe (L.S.)
15	Connecting Rod, Short
16	Rod, Connecting
17	Air Diffuser Assembly
18	Gasket, Air Diffuser
19	Cover, Air Diffuser
20	Pivot Arm
22	Wiring Assembly, Control Box
23	Gasket, Bottom Separator
24	WP250830 Whirlpool Refrigerator Screw
25	WP488163 Whirlpool Refrigerator Screw
26	Insulation, Filler
27	Insulation, Compartment Separator
28	Slide, Thermostat
29	Slide, Air Control
30	Window, Air Control
31	Window, Thermostat
33	Separator, Compartment (Top)
34	Cup, Drain
36	WP489478 Whirlpool Refrigerator Screw
