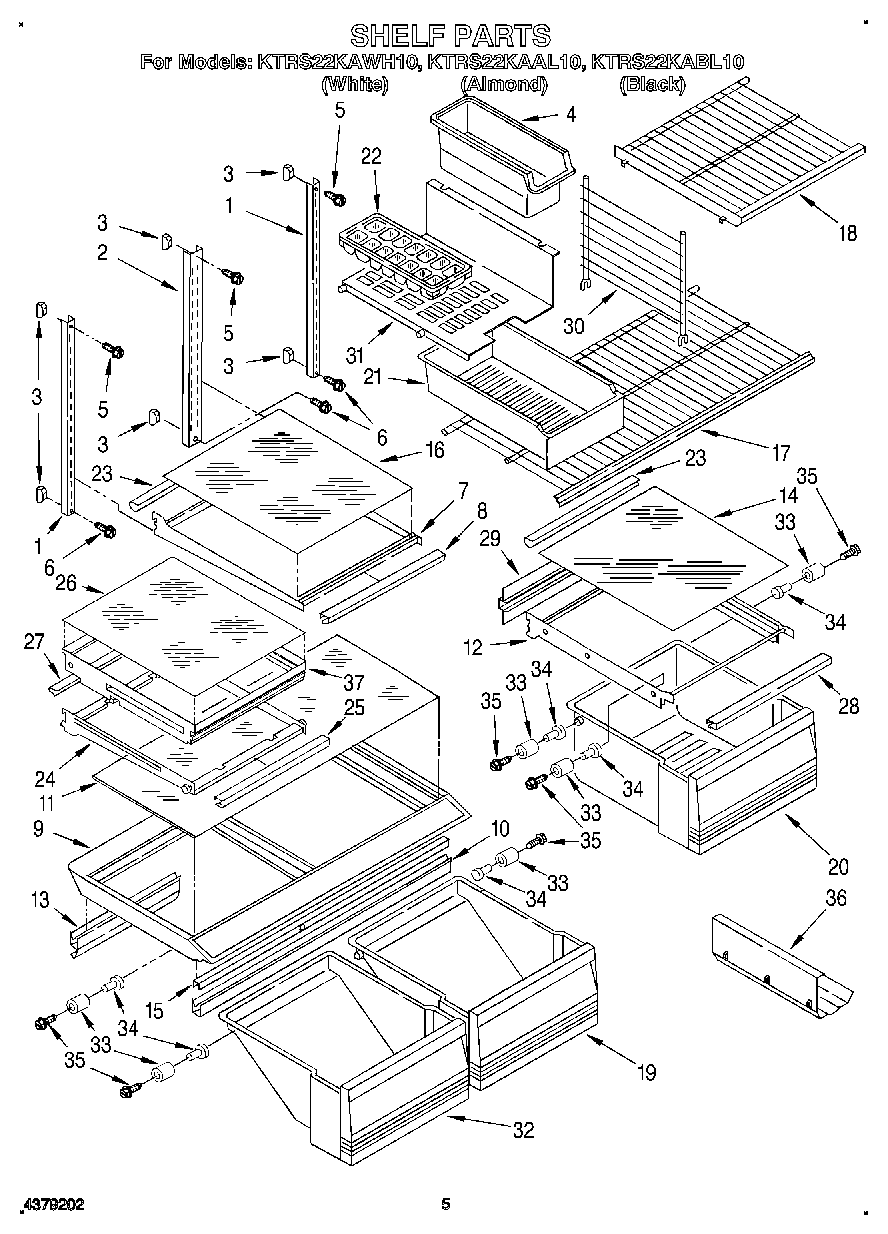

KTRS22KAWH10 04 – SHELF, LIT/OPTIONAL

KTRS22KAWH10 04 – SHELF, LIT/OPTIONAL

Written by

in

KTRS22KAWH10 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2169124
	WPL LIT2168826
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	Torx Key
	WPL LIT2161695
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	WP982704 Whirlpool Refrigerator Container
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (2)
8	Gasket (Front)
9	Pan Cover & Roller Assembly
10	WP1125528 Whirlpool Refrigerator Gasket
11	Glass, Crisper Cover
12	Pan Shelf & Roller Assembly
13	Gasket, Pan Cover-Rear
14	Glass, Shelf
15	WP2172748 Whirlpool Drawer Support
16	Glass, Shelf
17	Shelf, Freezer
18	Shelf, Freezer
19	Crisper, Pan Front
20	Meat Pan Assy.
21	PAN-ICE
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Retainer, Glass
24	Frame & Roller Assembly
25	Gasket (Front)
26	Glass
27	Reflector, Shelf
28	Gasket, Front
29	Gasket, Rear
30	Divider
31	Shelf, Ice Tray
32	Pan, Utility
33	Roller
34	Eyelet, Roller
35	WP489261 Whirlpool Refrigerator Screw
36	Wine & Egg Rack
37	Leveler (Thinner)
37	Almond (Uncut)
37	350930 Whirlpool White Spray Paint
37	212643 Whirlpool Refrigerator Permagum Sealer
37	WP72107 Whirlpool Touchup
37	72032 Whirlpool Touch Up Paint Black
37	799344 Whirlpool Refrigerator Paint
37	72017 Whirlpool Appliance Touch-Up Paint White
37	350956 Whirlpool Spray Assembly
37	350942 Whirlpool Spray Paint
37	511873 Whirlpool Refrigerator Paint
37	606755 Whirlpool Refrigerator Bag
37	WPL 876029
37	WPL 799833
37	CEMENT, ALUMILASTIC (1 1/4 OZ.)
37	TAPE, VINYL (3/4 X 108“)
37	285006 Whirlpool Spray
37	WP542638 Whirlpool Refrigerator Grease
37	Frame & Roller Assembly
37	WP505587 Whirlpool Refrigerator Sealer
37	WP503695 Whirlpool Refrigerator Sealer
37	876370 Whirlpool Refrigerator Insulation
37	833938 Whirlpool Refrigerator Terminal
37	Door Reversal Instructions
