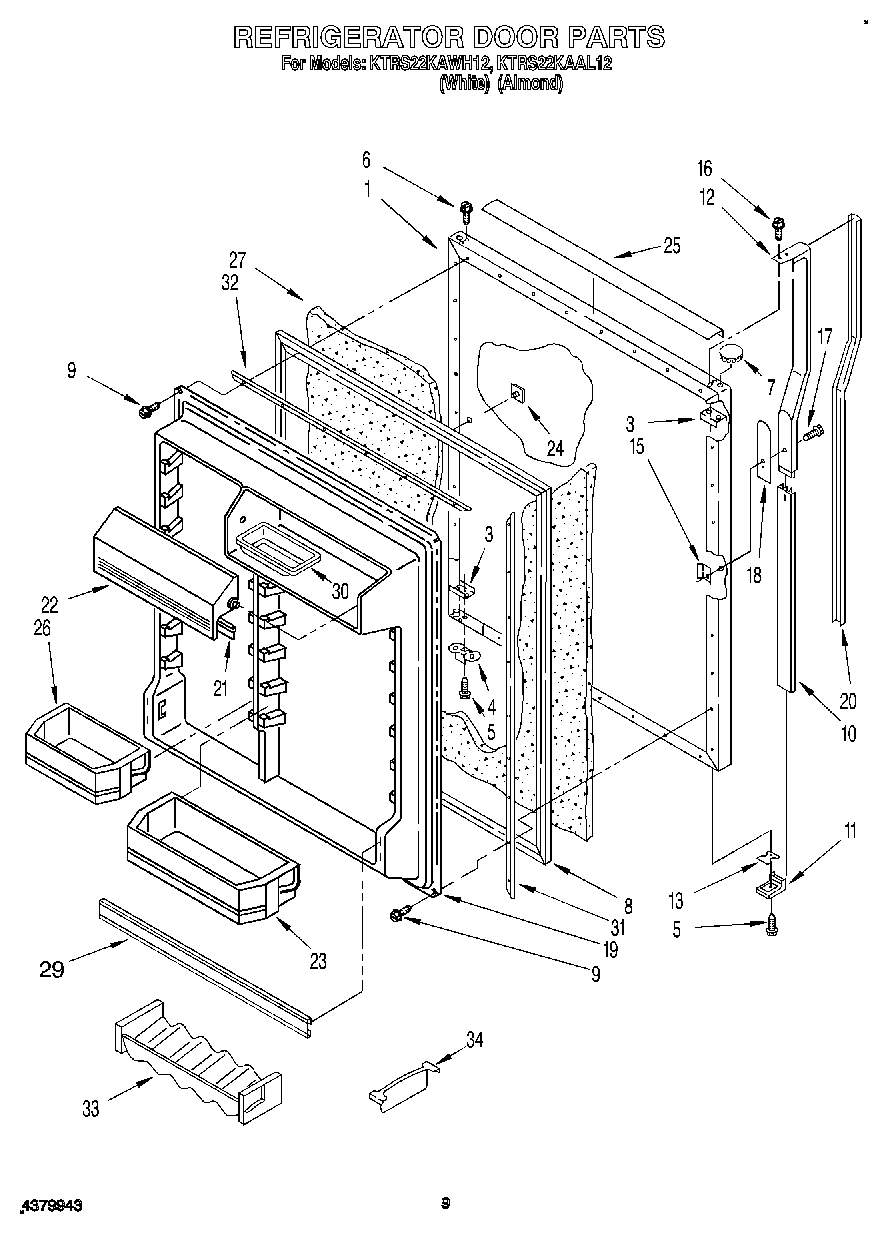

KTRS22KAWH12 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
1	Panel, Refrigerator Door (Also Order Item 27) (White)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489442 Whirlpool Refrigerator Screw
10	Retainer, Insert
11	Handle End
12	Handle
13	Shim, Bottom
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Spacer, Handle
19	Interior Door Panel
20	Insert, Handle (White)
20	Insert, Handle (Almond)
21	Gasket, Door Compartment
22	Compartment Door
23	Bin, Door Shelf Deep. Wide
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug, Handle (Almond)
25	Trim, Door
26	Bin, Door Shelf Narrow
27	WPL 876029
29	Shelf Bin (2)
30	Butter, Tray
31	Gasket, Retainer
32	Gasket Retainer, Top & Bottom
33	WPL 1125981
34	WPL 1117999
