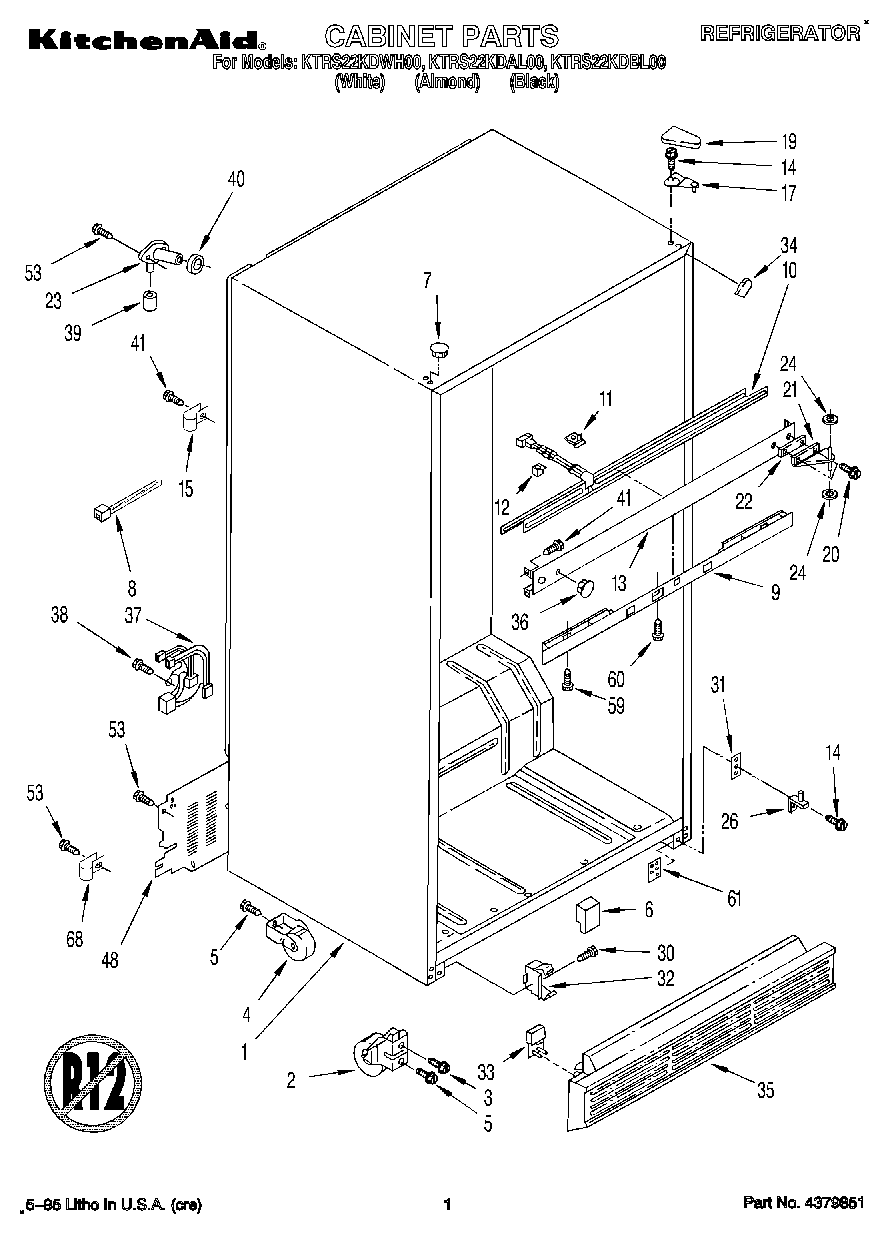

KTRS22KDBL00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	Insert, Air Baffle
7	Hole Plug (6) (Almond)
7	WP2151652 Whirlpool Refrigerator Button Plug
7	WP2183998 Whirlpool Refrigerator Button Plug
8	WPW10339879 Whirlpool Wire Tie
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Center Rail (4)
12	Spacer (3)
13	Center Rail
15	WP488366 Whirlpool Refrigerator Clamp
17	WP2189412 Whirlpool Refrigerator Door Hinge
19	WP2213363 Whirlpool Refrigerator Cover
19	WP2213360 Whirlpool Refrigerator Cover
19	Cover, Hinge (Almond)
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
23	WP2196157 Whirlpool Fill Tube
24	WP487802 Whirlpool Refrigerator Washer
26	WP2254473 Whirlpool Refrigerator Door Hinge
31	Spacer
32	WP2155013 Whirlpool Refrigerator Clip
33	Corner Filler, Grille
33	Corner Filler, Grille (Almond)
33	Corner Filler, Grille (White)
34	Filler, Wrapper Corner (2) (White)
34	Filler, Wrapper Corner (2) (Almond)
34	Filler, Wrap Corner (Black)
35	Grille (Almond)
35	Grille (Black)
35	Grille (White)
36	Hole Plug (4) (White)
37	Wiring Assembly, Intermediate
38	WP250830 Whirlpool Refrigerator Screw
39	WP487996 Whirlpool Refrigerator Cap Tube
40	WP1106508 Whirlpool Refrigerator Gasket
41	WP489478 Whirlpool Refrigerator Screw
48	Cover, Unit
59	WP488163 Whirlpool Refrigerator Screw
60	WP489174 Whirlpool Refrigerator Screw
61	Tap-Plate, Bottom Hinge
68	549193 Whirlpool Refrigerator Power Clamp
